The ARRMA TALION - a legend returns

Longer and meaner than ever

Powerful Spektrum Electronics

75+ MPH speeds

Own the terrain

Ultimate stability

Specifications

ARRMA Part Number
ARA7707V6T1
Vehicle Name

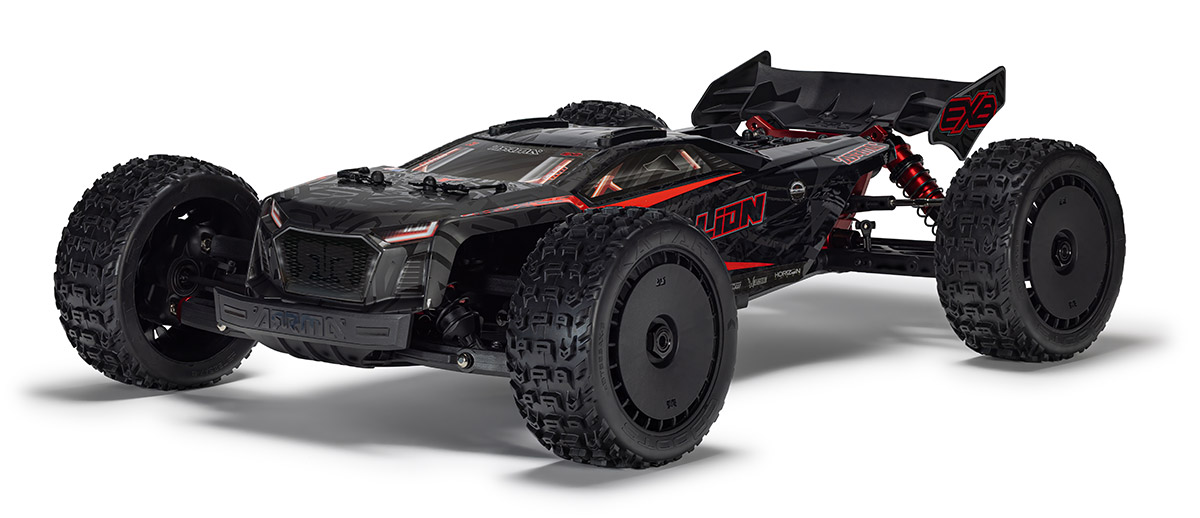

1/7 TALION 6S EXB 4X4 RTR Brushless Speed Truck, Black
SCALE
1/7
MAX SPEED POSSIBLE
75+mph / 120+km/h
POWER TYPE
Brushless
BUILD STATUS
RTR
Saleable Part #
ARA7707V6T1
Horizon Hobby Saleable Part #
ARA7707V6T1
BUILD CONFIGURATION OPTIONS
Mid Motor
DRIVE TYPE
4WD
VEHICLE TYPE
Speed Truck
SURFACE
Off-road
LENGTH
581mm / 22.87"
WHEELBASE
411mm / 16.18"
RIDE HEIGHT
48mm / 1.89"
FRONT WIDTH
430mm / 16.93"
REAR WIDTH
430mm / 16.93"
HEIGHT
168mm / 6.61"
NUMBER OF DIFFERENTIALS
3
WEIGHT (NO BATTERY)
5.2kg / 11lbs 7oz
BATTERY RECOMMENDATIONS
4S or 6S Lipo (Hard or soft-case) within dimensions 158 x 48 x 70mm or 6.22 x 1.89 x 2.76 inches
WARRANTY LEVEL
2 Year Limited
ARRMA Part Number
ARA7707V6T1
Vehicle Name
1/7 TALION 6S EXB 4X4 RTR Brushless Speed Truck, Black
BODY LENGTH
473mm / 18.62"
BODY WIDTH
195mm / 7.68"
BODY HEIGHT
108mm / 4.25"
FRONT SPRING RATE
3.43N/mm
REAR SPRING RATE
1N/mm
CAPTURED HINGEPINS
Yes
TURNBUCKLES/FIXED LINKS
Turnbuckles
HARDWARE TYPE
Hex Head
LOCKING DIFFS
No
DIFFERENTIAL TYPE
Gear
STANDARD SHOCK OIL (Viscosity)
F:1300 R:1300cSt
STANDARD DIFF OIL (Viscosity)
F:80k, C:100k, R:80kcSt
STANDARD SHOCK OIL (Type)
Silicone
STANDARD DIFF OIL (Type)
Silicone
DIFFERENTIAL CROWN GEAR SPECIFICIATION
43T 0.9m
DIFFERENTIAL PINION GEAR SPECIFICIATION
10T 0.9m
INTERNAL GEAR RATIO
4.3
INTERNAL GEAR MATERIAL
Metal
FITTED SPUR SIZE
50Tooth
FITTED SPUR MATERIAL
Metal
FITTED PINION GEAR SIZE
15Tooth
FITTED PINION MATERIAL
Metal
EXTRA SPEED PINION INCLUDED
Yes
PINION AND SPUR TOOTH PITCH
1 Mod
STANDARD FINAL GEAR RATIO
14.33
FINAL GEAR RATIO RANGE
9.77 - 17.92
TIRE STANDARD
MT (4.2")
TIRES INCLUDED
dBoots KATAR Belted
TIRE DIAMETER
145mm / 5.71"
TIRE INSERT TYPE
Medium
DRIVESHAFT TYPE
CVD Front/Dogbone Rear
WHEEL BEAD DIAMETER
104mm / 4.09"
WHEEL HEX SIZE
17mm
WHEEL STANDARD
MT (4.2")
WHEEL COLOR/FINISH
Black
MOUNTED TIRES
Yes
TIRE ATTACHMENT METHOD
Glued
SERVO HORN MATERIAL
Metal
SERVO SPLINE SIZE
25T
BATTERY MAX DIMENSIONS
158x48x70mm / 6.22x1.89x2.76"
CHASSIS MATERIAL
3mm Plate, 7075-T6 Aluminum
TRIMMED BODY
Yes
BODY-ON BATTERY ACCESS
No
BODY PIN RETAINERS
Yes
TORQUE SPLIT
50/50
MODEL PRODUCTION YEAR
2026
ARRMA Part Number
ARA7707V6T1
Vehicle Name
1/7 TALION 6S EXB 4X4 RTR Brushless Speed Truck, Black
POWER LEVEL
6S
RADIO SYSTEM
Spektrum SLT3 Tx/SR315 Rx 3ch (Dual Protocol Version)
2.4Ghz
Yes
NUMBER OF RADIO CHANNELS
3
ESC
Spektrum FIRMA 150 V2 SMART
WATERPROOF ELECTRONICS
Yes
ESC CONNECTOR TYPE
IC5
MOTOR
Spektrum FIRMA 4074 2050Kv
MAXIMUM MOTOR SIZE
43mm diameter, 80mm length
SERVO
Spektrum S665 Digital
SERVO GEAR MATERIAL
Steel
MAX SERVO SPEED @7.4v
0.12sec
ARRMA Part Number
ARA7707V6T1
Vehicle Name
1/7 TALION 6S EXB 4X4 RTR Brushless Speed Truck, Black

Included

OPTION GEARING
23T
BATTERY CONNECTOR SUPPLIED
IC5
TOOLS INCLUDED
Cross Wrenches and Hex Wrenches (1.5, 2.0, 2.5, 5.0mm)
ADDITIONAL PARTS
IC5 Loop connector (for use with single 4S or 6S battery pack)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
35C 5000mAh minimum, 100C 5000mAh recommended
REQUIRED ITEMS
2x2S LiPo, 2x3S LiPo, 1x4S LiPo OR 1x6S LiPo Battery, LiPo Charging Bag, Charger
