Fun, Tough & Amazing Value With No Compromises

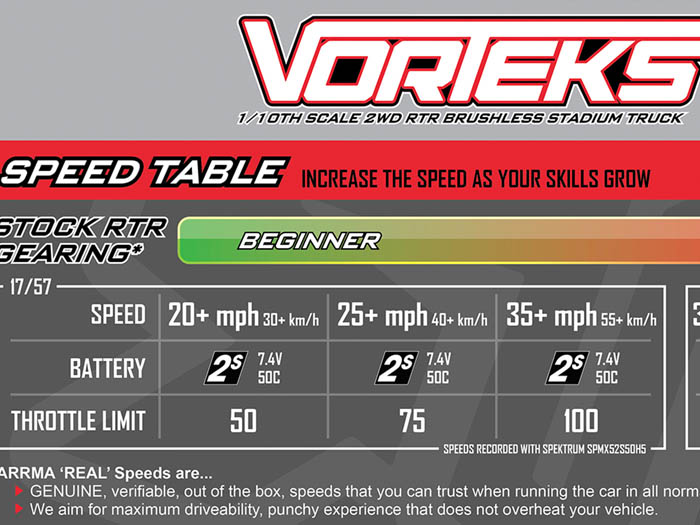

Match Speed To Your Skill

Powerful Spektrum Electronics

Great Features

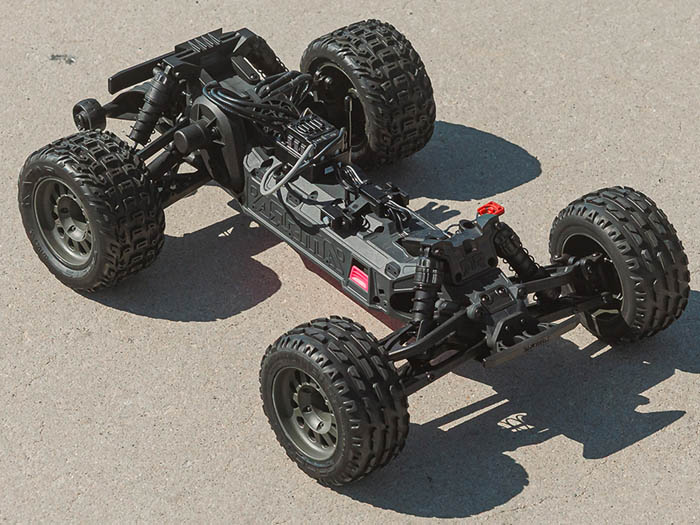

Under The Hood

Unleash The Power

Specifications

ARRMA Part Number
ARA3505T1
ARA3505T2
ARA3505T3
Vehicle Name

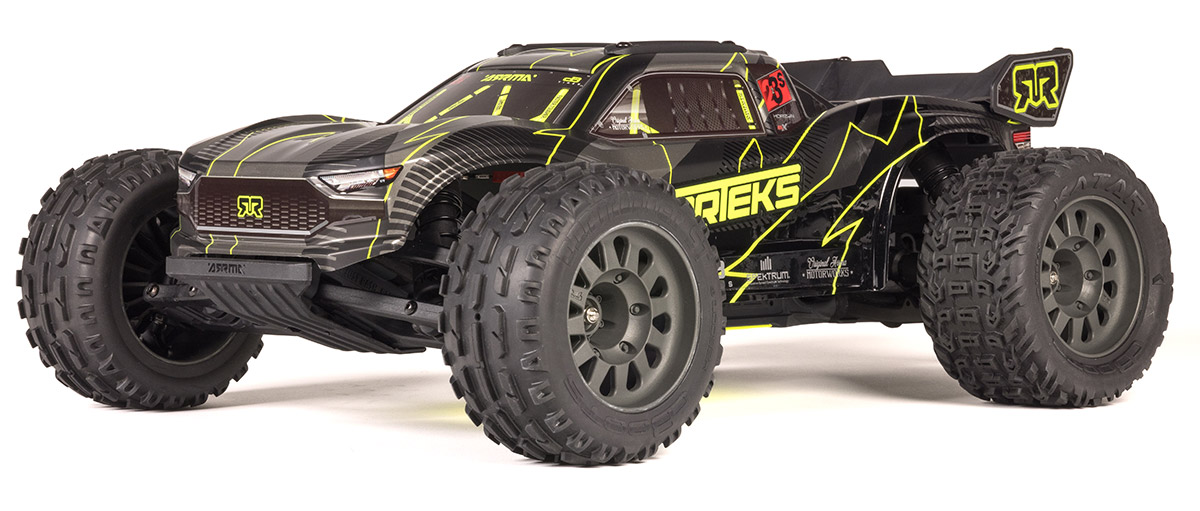

1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Yellow

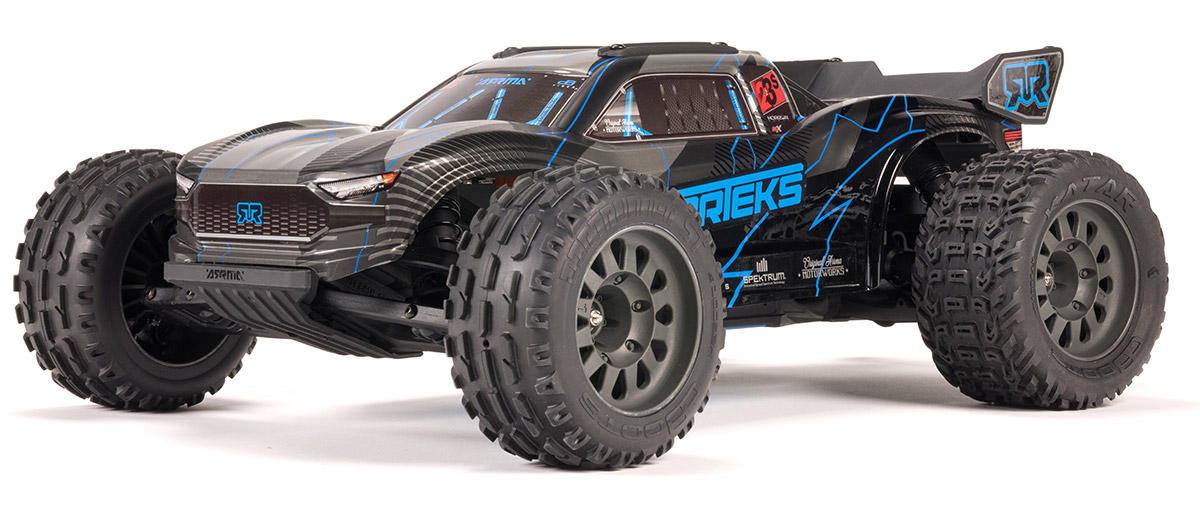

1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Blue
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Pink
SCALE
1/10
1/10
1/10
MAX SPEED POSSIBLE
50+mph / 80+km/h
50+mph / 80+km/h
50+mph / 80+km/h
POWER TYPE
Brushless
Brushless
Brushless
BUILD STATUS
RTR
RTR
RTR
Saleable Part #
ARA3505T1
ARA3505T2
ARA3505T3
Horizon Hobby Saleable Part #
ARA3505T1
ARA3505T2
ARA3505T3
BUILD CONFIGURATION OPTIONS
Mid Motor
Mid Motor
Mid Motor
DRIVE TYPE
2WD
2WD
2WD
VEHICLE TYPE
Stadium Truck
Stadium Truck
Stadium Truck
SURFACE
Off-road
Off-road
Off-road
LENGTH
456mm / 17.95"
456mm / 17.95"
456mm / 17.95"
WHEELBASE
286mm / 11.26"
286mm / 11.26"
286mm / 11.26"
RIDE HEIGHT
40mm / 1.57"
40mm / 1.57"
40mm / 1.57"
FRONT WIDTH
325mm / 12.8"
325mm / 12.8"
325mm / 12.8"
REAR WIDTH
325mm / 12.8"
325mm / 12.8"
325mm / 12.8"
HEIGHT
170mm / 6.69"
170mm / 6.69"
170mm / 6.69"
NUMBER OF DIFFERENTIALS
1
1
1
WEIGHT (NO BATTERY)
2.51kg / 5lbs 9oz
2.51kg / 5lbs 9oz
2.51kg / 5lbs 9oz
BATTERY RECOMMENDATIONS
2S or 3S Lipo (Hardcase only) within dimensions 140x50x35mm
2S or 3S Lipo (Hardcase only) within dimensions 140x50x35mm
2S or 3S Lipo (Hardcase only) within dimensions 140x50x35mm
WARRANTY LEVEL
2 Year Limited
2 Year Limited
2 Year Limited
ARRMA Part Number
ARA3505T1
ARA3505T2
ARA3505T3
Vehicle Name
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Yellow
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Blue
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Pink
BODY LENGTH
450mm / 17.72"
450mm / 17.72"
450mm / 17.72"
BODY WIDTH
185mm / 7.28"
185mm / 7.28"
185mm / 7.28"
BODY HEIGHT
110mm / 4.33"
110mm / 4.33"
110mm / 4.33"
FRONT SPRING RATE
0.547N/mm
0.547N/mm
0.547N/mm
REAR SPRING RATE
0.402N/mm
0.402N/mm
0.402N/mm
CAPTURED HINGEPINS
Yes
Yes
Yes
TURNBUCKLES/FIXED LINKS
Fixed Link
Fixed Link
Fixed Link
HARDWARE TYPE
Hex Head
Hex Head
Hex Head
LOCKING DIFFS
No
No
No

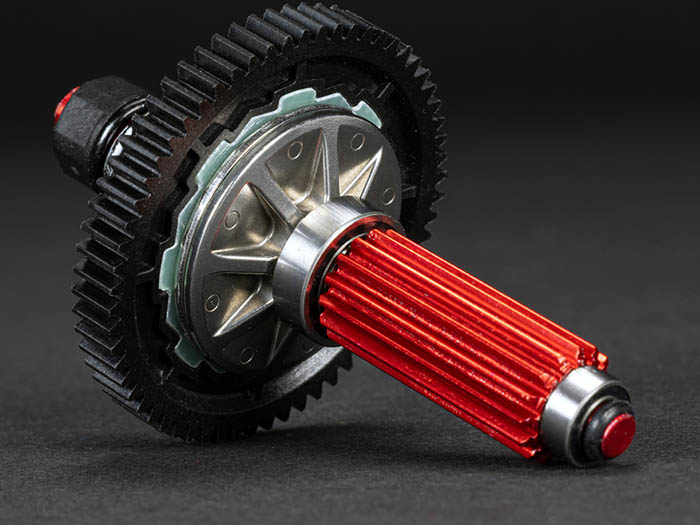

DIFFERENTIAL TYPE
Gear
Gear
Gear
STANDARD SHOCK OIL (Viscosity)
F: 500 R:300cSt
F: 500 R:300cSt
F: 500 R:300cSt
STANDARD SHOCK OIL (Type)
Silicone
Silicone
Silicone
STANDARD DIFF OIL (Type)
Grease
Grease
Grease
INTERNAL GEAR RATIO
3.13
3.13
3.13
INTERNAL GEAR MATERIAL
Plastic
Plastic
Plastic
FITTED SPUR SIZE
61Tooth
61Tooth
61Tooth
FITTED SPUR MATERIAL
Plastic
Plastic
Plastic
FITTED PINION GEAR SIZE
17Tooth
17Tooth
17Tooth
FITTED PINION MATERIAL
Metal
Metal
Metal
EXTRA SPEED PINION INCLUDED
No
No
No
PINION AND SPUR TOOTH PITCH
0.8Mod
0.8Mod
0.8Mod
STANDARD FINAL GEAR RATIO
11.23
11.23
11.23
TIRE STANDARD
MT (2.8")
MT (2.8")
MT (2.8")
TIRES INCLUDED
dBoots Dirtrunner ST Front / dBoots Katar Rear
dBoots Dirtrunner ST Front / dBoots Katar Rear
dBoots Dirtrunner ST Front / dBoots Katar Rear
TIRE DIAMETER
115mm / 4.53"
115mm / 4.53"
115mm / 4.53"
TIRE INSERT TYPE
Medium
Medium
Medium
DRIVESHAFT TYPE
UJ Slider
UJ Slider
UJ Slider
WHEEL BEAD DIAMETER
72mm / 2.83"
72mm / 2.83"
72mm / 2.83"
WHEEL HEX SIZE
14mm
14mm
14mm
WHEEL STANDARD
MT (2.8" 14mm hex)
MT (2.8" 14mm hex)
MT (2.8" 14mm hex)
WHEEL COLOR/FINISH
Gunmetal
Gunmetal
Gunmetal
MOUNTED TIRES
Yes
Yes
Yes
TIRE ATTACHMENT METHOD
Glued
Glued
Glued
SERVO HORN MATERIAL
Plastic
Plastic
Plastic
SERVO SPLINE SIZE
25T
25T
25T
BATTERY MAX DIMENSIONS
140x50x35mm / 5.51x1.97x1.38"
140x50x35mm / 5.51x1.97x1.38"
140x50x35mm / 5.51x1.97x1.38"
CHASSIS MATERIAL
Moulded Composite
Moulded Composite
Moulded Composite
TRIMMED BODY
Yes
Yes
Yes

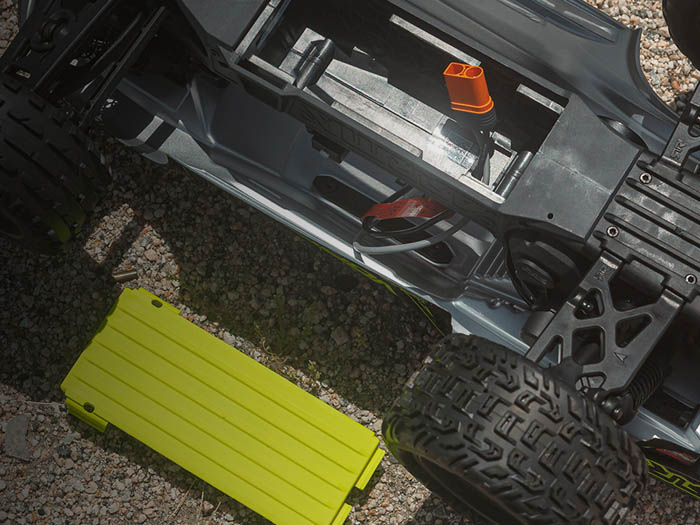

BODY-ON BATTERY ACCESS
Yes
Yes
Yes
BODY PIN RETAINERS
Clipless Mounting System
Clipless Mounting System
Clipless Mounting System
MODEL PRODUCTION YEAR
2025
2025
2025
ARRMA Part Number
ARA3505T1
ARA3505T2
ARA3505T3
Vehicle Name
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Yellow
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Blue
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Pink
POWER LEVEL
223S
223S
223S
RADIO SYSTEM
Spektrum SLT2 Tx/Spektrum 4510RX Brushless 2in1 Unit with Gyro
Spektrum SLT2 Tx/Spektrum 4510RX Brushless 2in1 Unit with Gyro
Spektrum SLT2 Tx/Spektrum 4510RX Brushless 2in1 Unit with Gyro
2.4Ghz
Yes
Yes
Yes
NUMBER OF RADIO CHANNELS
2
2
2
ESC
Spektrum 4510RX Brushless 2in1 Unit with Gyro
Spektrum 4510RX Brushless 2in1 Unit with Gyro
Spektrum 4510RX Brushless 2in1 Unit with Gyro
WATERPROOF ELECTRONICS
Yes
Yes
Yes
ESC CONNECTOR TYPE
IC5
IC5
IC5
MOTOR
Spektrum Firma 3660 4000KV
Spektrum Firma 3660 4000KV
Spektrum Firma 3660 4000KV
MAXIMUM MOTOR SIZE
3660
3660
3660
SERVO
Spektrum S681
Spektrum S681
Spektrum S681
SERVO GEAR MATERIAL
Metal
Metal
Metal
MAX SERVO TORQUE @6v
6KGkg-cm / 84oz-in
6KGkg-cm / 84oz-in
6KGkg-cm / 84oz-in
MAX SERVO SPEED @6v
0.15sec
0.15sec
0.15sec
ARRMA Part Number
ARA3505T1
ARA3505T2
ARA3505T3
Vehicle Name
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Yellow
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Blue
1/10 VORTEKS 223S DSC 2WD RTR Brushless Stadium Truck, Pink

Included

TOOLS INCLUDED
Multi Tool and Hex Wrenches (2.0, 2.5mm)
Multi Tool and Hex Wrenches (2.0, 2.5mm)
Multi Tool and Hex Wrenches (2.0, 2.5mm)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
30C 4000mAh
30C 4000mAh
30C 4000mAh
REQUIRED ITEMS
2S LiPo or 3S LiPo, LiPo Charging Bag, Charger
2S LiPo or 3S LiPo, LiPo Charging Bag, Charger
2S LiPo or 3S LiPo, LiPo Charging Bag, Charger
