1/8 TALION 6S BLX 4WD Brushless Sport Performance Truggy with Spektrum RTR, Red/Black

4 out of 5 Customer Rating
ARRMA #ARA106048
This Item is No Longer Available
1/8 TALION 6S BLX 4WD EXtreme Bash Speed Truggy RTR, Black
1/8 TALION 6S BLX 4WD EXtreme Bash Speed Truggy RTR, Black
ARA8707
View Alternate Product Details
1/8 TALION 6S BLX 4WD Brushless Sport Performance Truggy with Spektrum RTR, Red/Black
ARRMA TALION 6S BLX 4WD 1/8 Speed Truggy RTR

Introduction

Engineered to bash, designed to thrill - the 1/8 scale ARRMA® TALION™ 6S BLX 4WD speed truggy reaches 70+ mph right out of the box. Now comes complete with the 2.4GHz Spektrum™ STX2® radio system, it's tough as nails and ready for fast action on any terrain!

Features

  • Ready-to-run
  • Extremely durable
  • Fast, 70+ mph speed potential *
  • 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
  • Anodized aluminum chassis
  • Center body support
  • Aluminum center brace
  • Strong composite chassis side pods
  • Heavy-duty drivetrain
  • All-metal diff outdrives and gearbox internals
  • Durable steel driveshafts
  • Easy-access sliding motor mount
  • 5-Bolt center diff removal
  • Never-pop ball ends
  • Never loose red aluminum servo saver
  • Oil-filled adjustable shocks
  • Black anodized aluminum front and rear shock towers
    • * Speed achievable in optimum conditions on 6S LiPo with optional pinion gear
  • Aluminum shock caps and protectors
  • Painted, decaled, and trimmed aerodynamic body
  • Multi-element, high-downforce wing
  • Low-drag MT wheels
  • Multi-terrain DBoots® KATAR tires
  • Super-durable wheel hubs
  • Hub nut O-rings
  • Spektrumâ„¢ 2.4GHz STX2® Radio with SRX200 Receiver
  • BLX4074 2050Kv brushless motor
  • BLX185 waterproof 4S/6S ESC (fitted with IC5â„¢ connector and EC5â„¢ compatible) **
  • ADS-15M waterproof 15kg-cm metal-geared servo (195 oz-in @ 6V) **
  • 2-year limited warranty (see website for details).
    • ** For details on waterproof standards, please refer to the product instruction manuals

Overview

Powerful, 6S-capable brushless electronics enable this new TALIONâ„¢ Speed Truggy to satisfy any intermediate-level basher's need for speed. Its 2050Kv brushless motor is paired with the BLX185 ESC, featuring IC5â„¢ connectors and compatible with standard EC5â„¢ connectors. The waterproof electronics accommodate all-weather bashing. Add your favorite 4S or 6S LiPo battery and watch this truggy smash your bashing speed expectations, especially while running with the optional recommended pinion gear.

Low-drag MT wheels with extra-strong hubs arrive outfitted with aggressive, multi-surface DBoots® KATAR tires. A multi-element, high downforce wing helps keep the truggy grounded. Both contribute to confident control and responsive handling on- or off-road.

The TALIONâ„¢ 6S BLX 4WD speed truggy blasts over dirt, rocks, asphalt, grass, mud, and snow - through all terrain and all conditions - with adjustable 16mm big bore oil-filled shocks soaking up the bumps. The shocks are mounted on low, black-anodized aluminum shock towers engineered for the truggy's low profile design. Included aluminum shock caps and protectors help maintain their super-smooth damping for supreme handling.

For the toughness needed to support its intense performance, ARRMA® builds the TALION™ 6S BLX 4WD on a strong, 3mm anodized aluminum chassis. Chassis components are all positioned to provide the best weight distribution for speed. Composite side pods, a center support and new aluminum center brace maximize chassis durability. All-metal diff outdrives and gearbox internals plus durable steel driveshafts contribute to an efficient, heavy-duty drivetrain that withstands extreme bashing. A new, "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability, and confidence.

ARRMA® cuts your maintenance downtime to the bone with its smart, driver-friendly design. A sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can be removed by taking out just five bolts. Topping it all off is an aerodynamic truggy body that cuts through resistance for maximum speed - while its low profile helps keep the wheels planted and pouring on power.

The ready-to-run TALION™ 6S BLX 4WD includes the new Spektrum™ 2.4GHz STX2® radio, with its SRX200 receiver and ADS-15M metal-geared servo factory-installed. The only required items are a 4S or 6S LiPo battery, compatible charger, safe charging bag, and four AA transmitter batteries. ARRMA® recommends the Dynamite® Powerstage™ Stage 6 bundle (DYN1540), which includes a Passport™ Ultra P2 100W AC/DC Multi-Charger and two Reaction HD 5000mAh 3S hardcase LiPo batteries with EC5™ connectors.

TALION Video Introduction


Under The Hood



PREMIUM LOOKS
PREMIUM LOOKS

New body includes forged composite details and a matte painted finish.

TAKES THE ROUGH WITH THE TUMBLE
TAKES THE ROUGH WITH THE TUMBLE

New high-downforce wing includes strengthened wing mounts to take the hits and keep going.



READY FOR ANYTHING
READY FOR ANYTHING

Low-drag MT wheels and multi-terrain DBoots® Katar tires for responsive handling, agressive driving, and fun in all conditions.

SLIP & SLIDE
SLIP & SLIDE

Sliding motor mount for easy meshing and removal, and easy-access 5-bolt center diff



TIGHT & TRUE
TIGHT & TRUE

New servo saver design that will never loosen, for maximum servo protection.

Never-Pop Steering Ball Links
CAPTIVATING

Captured steering ball ends that will never pop off



Never-Loose Hub Nuts
SIGNED, SEALED, & DELIVERED

New, updated hubs and hub nut o-rings that will never come loose

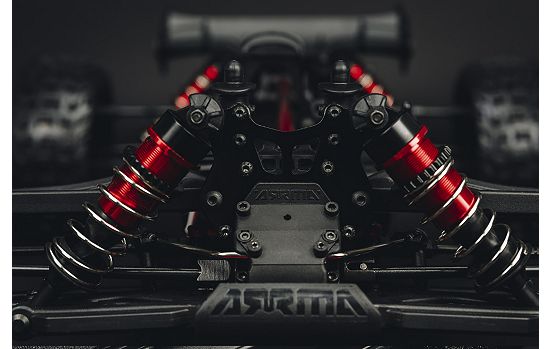

ANODIZED ALUMINUM SHOCKS
ANODIZED ALUMINUM SHOCKS

Anodized aluminum shock absorbers feature adjustable collars and shock cap protectors



HEAVY-DUTY SHOCK DESIGN
HEAVY-DUTY SHOCK DESIGN

Heavy duty red anodized aluminum shocks with 4mm shock shafts

VERTICALLY ADJUSTABLE END-COVER
TOWER TO TOWER BRACE

The aluminum center brace maximizes chassis durability

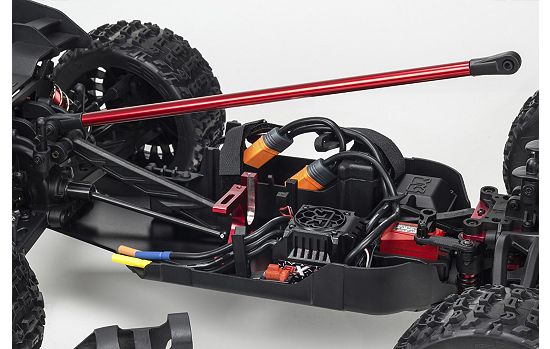

BLX185 ESC
BLX185 ESC
  • Waterproof and dustproof design *
  • 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
  • Fitted with reliable IC5â„¢ connectors (EC5â„¢ compatible)
  • Integrated fan for reduced heat during extreme running
  • High quality 10awg wires
  • Low voltage cut off and thermal overload protection
  • User programmable punch and brake settings
  • Capable of 70+ mph (113+ km/h) speeds **
  • * For details on waterproof standards, please refer to the product instruction manuals.
    ** Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.
BLX4074 2050Kv Brushless Motor
BLX4074 2050Kv BRUSHLESS MOTOR
  • Beautifully etched aluminum can
  • 4-pole construction for smooth and consistent power
  • Gold bullet connectors for reliable and efficient connection
  • Finned motor can for increased heat dissipation
  • Super strong 5mm shaft
  • Capable of 70+ mph (113+ km/h) speeds *
  • * Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.



OPTIONAL SPEED PINION INCLUDED
OPTIONAL SPEED PINION INCLUDED

Red anodized motor mount and mod 1 spur and pinion gears to handle increased speed and optimum performance.

HEAVY-DUTY DRIVETRAIN
HEAVY-DUTY DRIVETRAIN

Tough A-arms and durable steel driveshafts and components keep you bashing for longer



SPEKTRUM STX2 RADIO SYSTEM
SPEKTRUM STX2 RADIO SYSTEM
  • Complete 2.4GHz radio system including a 2Ch waterproof receiver *
  • Built-in 3-position throttle limiter
  • Steering & throttle rate & trim adjustments with throttle and steering reversing
  • FHSS 2.4GHz protocol** offers extended range and interference free performance
  • * For details on waterproof standards, please refer to the product instruction manuals.
    ** Not compatible with DSM, DSM2 or DSMR 2.4GHz protocol
ADS-15M SERVO
ADS-15M SERVO
  • Strong metal gears used throughout
  • Waterproof and dustproof case *
  • 25 tooth output spline
  • Torque: 14kg-cm @6V
  • Speed: 0.16sec/60degree @6V
  • Dimensions: 40x38x20mm (Industry standard size)
  • * For details on waterproof standards, please refer to the product instruction manuals.



Firma 150 Smart ESC Upgrade Completion Guide

These are our suggested products to complete this product.

$159.99
5 out of 5 Customer Rating

Product Specifications

Approximate Assembly Time
No assembly required
Body
Low profile with multi-element high downforce wing with updated wing mount and new internal support for better durability, Length: 17.4" (442mm)Width: 7.83" (199mm)Height: 4.09" (104mm)
Pinion
13T
Scale
1/8
Ball Bearings
Full set included
Chassis
0.12" (3mm) thick 6061-T6 aluminum
Completion Level
Ready-To-Run
Drivetrain
4WD
Product Height
7.09" (180mm)
Top Speed
70+
Spur Gear
50T
Suspension
Independent
Wheel Width
Rear, 1.6" (41mm)
Battery Tray Dimensions
6.22 x 2.76 x 1.89" (158 x 70 x 49mm)
Outer Diameter
5.71 in (145mm)
Power System
6S
Product Width
16.46" (418mm)
Radio
Included
Charger
Sold Separately
Differential
Three, metal gear, front & rear filled with 10,000cst silicone diff oil, center filled with 100,000cst silicone diff oil
Receiver
Included
Shock Type
Oil filled coil over, filled with 2000cst silicone shock oil
Wheel Type
MT 4.2
Product Weight
9.22 lb (4.19kg)
Tire Tread
Katar
Vehicle Type
Truggy
Water-Resistant
Yes
Battery
Sold Separately
Internal Gear Ratio
4.3:1
Motor Size
4074, 2050Kg with new sliding mount for eaisier maintenance
Product Length
21.7" (550mm)
Power Type
Electric
Gear Pitch
1.0 Module
Servos
Included
Final Drive Ratio
16.54
Motor Type
Brushless
Speed Control
Included
Wheelbase
14.88" (378mm)
