Extreme Bash : Extreme Value

Key Features

Get Ready To Blast

Power and Technology

Not Just For Show, Also For Go

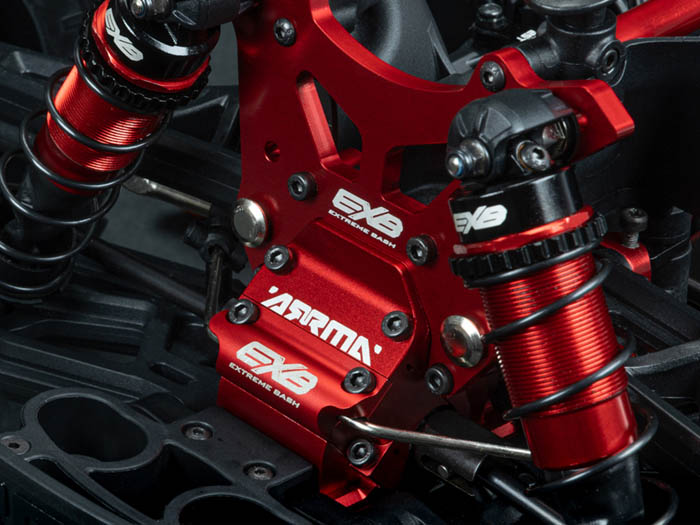

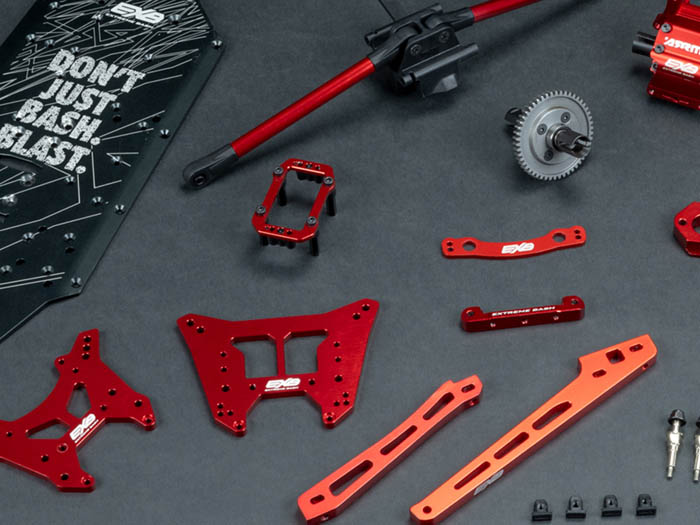

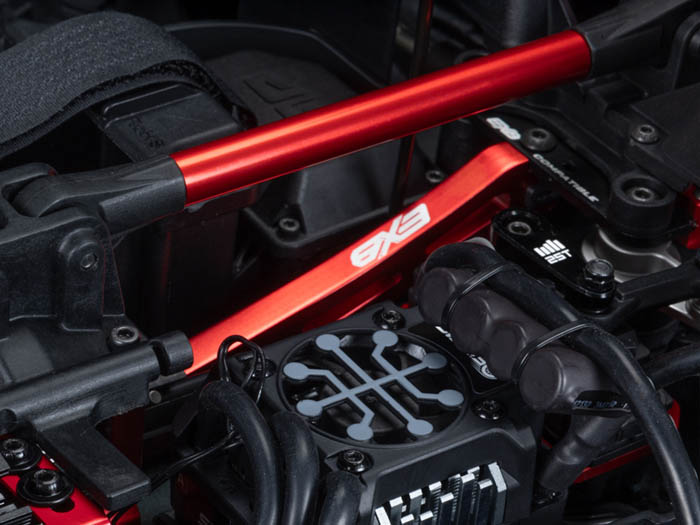

Update your 6S with EXB Toughness

Specifications

ARRMA Part Number
ARA8708T1
Vehicle Name

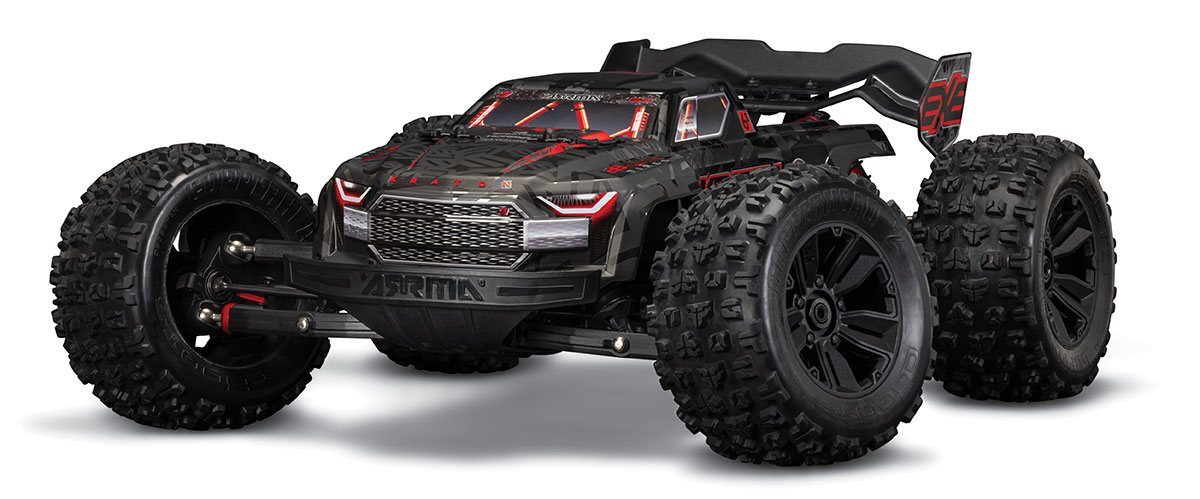

1/8 KRATON 6S BLX 4X4 EXtreme Bash Speed Monster Truck RTR, Black
SCALE
1/8
MAX SPEED POSSIBLE
65+mph / 104+km/h
POWER TYPE
Brushless
BUILD STATUS
RTR
Saleable Part #
ARA8708T1
Horizon Hobby Saleable Part #
ARA8708T1
BUILD CONFIGURATION OPTIONS
Mid Motor
DRIVE TYPE
4WD
VEHICLE TYPE
Speed Monster Truck
SURFACE
Off-road
LENGTH
599mm / 23.58"
WHEELBASE
377mm / 14.84"
RIDE HEIGHT
47mm / 1.85"
FRONT WIDTH
461mm / 18.15"
REAR WIDTH
461mm / 18.15"
HEIGHT
195mm / 7.68"
NUMBER OF DIFFERENTIALS
3
WEIGHT (NO BATTERY)
5.55kg / 12lbs 4oz
BATTERY RECOMMENDATIONS
4S or 6S Lipo (Hard or soft-case) within dimensions 158 x 48 x 70mm or 6.22 x 1.89 x 2.76 inches
WARRANTY LEVEL
2 Year Limited
ARRMA Part Number
ARA8708T1
Vehicle Name
1/8 KRATON 6S BLX 4X4 EXtreme Bash Speed Monster Truck RTR, Black
BODY LENGTH
460mm / 18.11"
BODY WIDTH
230mm / 9.06"
BODY HEIGHT
130mm / 5.12"
FRONT SPRING RATE
1.09N/mm
REAR SPRING RATE
0.87N/mm
CAPTURED HINGEPINS
Yes
TURNBUCKLES/FIXED LINKS
Turnbuckles
HARDWARE TYPE
Hex Head
LOCKING DIFFS
No
DIFFERENTIAL TYPE
Gear
STANDARD SHOCK OIL (Viscosity)
F:1300 R:1300cSt
STANDARD DIFF OIL (Viscosity)
F:80k, C:100k, R:80kcSt
STANDARD SHOCK OIL (Type)
Silicone
STANDARD DIFF OIL (Type)
Silicone
DIFFERENTIAL CROWN GEAR SPECIFICIATION
43T 0.9m
DIFFERENTIAL PINION GEAR SPECIFICIATION
10T 0.9m
INTERNAL GEAR RATIO
4.3
INTERNAL GEAR MATERIAL
Metal
FITTED SPUR SIZE
50Tooth
FITTED SPUR MATERIAL
Metal
FITTED PINION GEAR SIZE
13Tooth
FITTED PINION MATERIAL
Metal
EXTRA SPEED PINION INCLUDED
Yes
PINION AND SPUR TOOTH PITCH
1m
STANDARD FINAL GEAR RATIO
16.54
FINAL GEAR RATIO RANGE
9.77 - 17.92
TIRE STANDARD
MT
TIRES INCLUDED
dBoots COPPERHEAD2
TIRE DIAMETER
169mm / 6.65"
TIRE INSERT TYPE
Medium
DRIVESHAFT TYPE
CVD Front/Dogbone Rear
WHEEL BEAD DIAMETER
97mm / 3.82"
WHEEL HEX SIZE
17mm
WHEEL STANDARD
MT
WHEEL COLOR/FINISH
Black
MOUNTED TIRES
Yes
TIRE ATTACHMENT METHOD
Glued
BOX DIMENSIONS
725x490x255mm / 28.54x19.29x10.04"
SERVO HORN MATERIAL
Metal
SERVO SPLINE SIZE
25T
BATTERY MAX DIMENSIONS
158x48x70mm / 6.22x1.89x2.76"
CHASSIS MATERIAL
3mm Plate, 7075-T6 Aluminum
TRIMMED BODY
Yes
BODY-ON BATTERY ACCESS
No
BODY PIN RETAINERS
Yes
TORQUE SPLIT
50/50
MODEL PRODUCTION YEAR
2023
ARRMA Part Number
ARA8708T1
Vehicle Name
1/8 KRATON 6S BLX 4X4 EXtreme Bash Speed Monster Truck RTR, Black
RADIO SYSTEM
SPEKTRUM DX3 SMART DSMR & SR6200A
2.4Ghz
Yes
NUMBER OF RADIO CHANNELS
3
ESC
Spektrum FIRMA 150 SMART V2
WATERPROOF ELECTRONICS
Yes
ESC CONNECTOR TYPE
IC5
MOTOR
Spektrum FIRMA 4074 2050Kv
MAXIMUM MOTOR SIZE
43mm diameter, 80mm length
SERVO
Spektrum S665 Digital
SERVO GEAR MATERIAL
Steel
ARRMA Part Number
ARA8708T1
Vehicle Name
1/8 KRATON 6S BLX 4X4 EXtreme Bash Speed Monster Truck RTR, Black

Included

OPTION GEARING
16 Tooth pinion
TOOLS INCLUDED
Cross Wrenches and Hex Wrenches (1.5, 2.0, 2.5, 5.0mm)
ADDITIONAL PARTS
16T Speed Pinion, IC5 Loop connector (for use with single 4S or 6S battery pack)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
35C 5000mAh minimum, 100C 5000mAh recommended
REQUIRED ITEMS
2x2S LiPo, 2x3S LiPo, 1x4S LiPo OR 1x6S LiPo Battery, LiPo Charging Bag, Charger
