The Notorious 6S gets even more power

ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)

ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)
ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)
ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)
ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)
ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)
ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)
ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)
ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)

The Notorious – big on features

EXB CHASSIS

precision manufactured from
7075-T6 aluminum
CLIPLESS BODY RETENTION

secure body mounting - zero clips, zero hassle

ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)

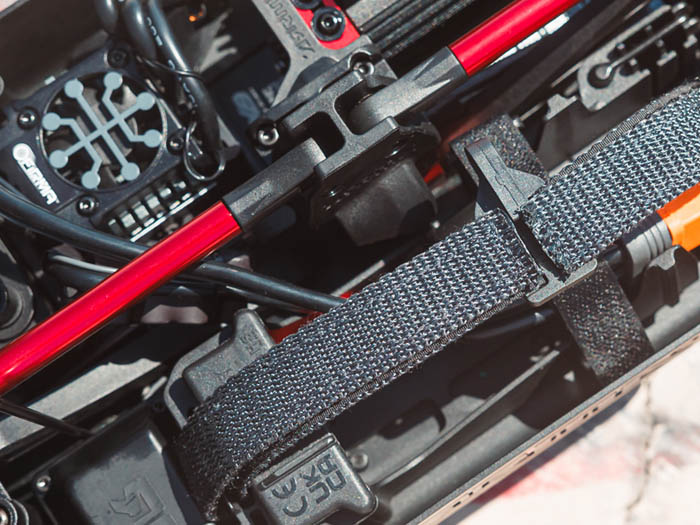

ARAMID FIBER REINFORCED

battery strap with hook & loop fastening
provides fast, secure battery retention
INTEGRATED

body retention buttons preserve
the clean lines of the NOTORIOUS

ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)

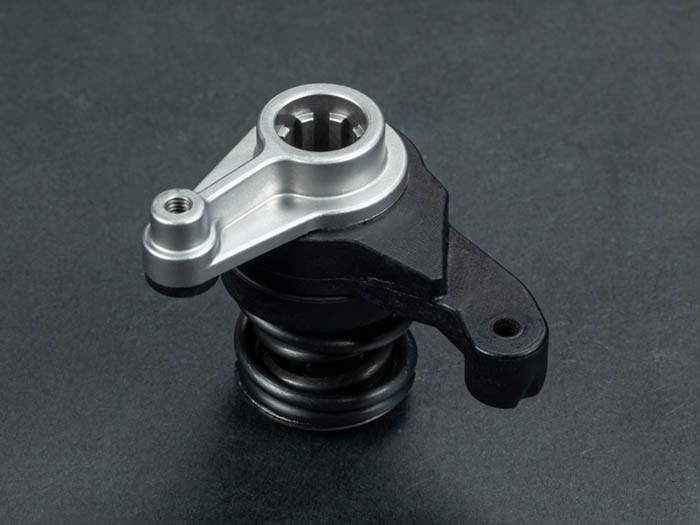

HIGH TORQUE SERVO SAVER

sliding design with dual springs provides precise
control and offers superb driving feedback

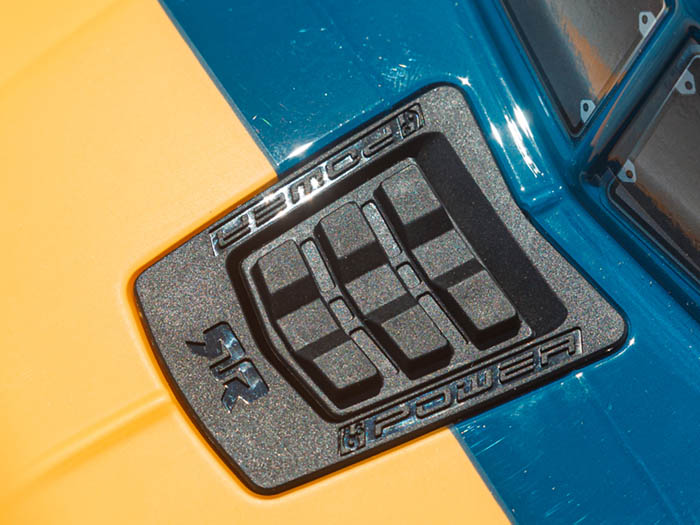

DIRT : DEFLECTED

composite side guards keep the dirt out
with additional venting to assist cooling

Feel the power

FIRMA 150A V2 SMART BRUSHLESS ESC
- All new firmware delivers extreme power, offers better air control and backflips on command
- Waterproof and dustproof design
- 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
- Spektrum SMART Technology
- Fitted with reliable IC5 connectors (EC5 compatible)
- Integrated fan for reduced heat during extreme running
- High quality 10awg wires
- Low voltage cut off and thermal overload protection
- User programmable punch, brake, BEC, reverse speed and motor timing settings
- Monochrome design
SPEKTRUM FIRMA 4074
2050Kv BRUSHLESS MOTOR
- Beautifully etched aluminum can
- 4-pole construction for smooth and consistent power
- 4mm gold bullet connectors for reliable and efficient connection
- Black anodized aluminum motor can for increased heat dissipation
- Super strong 5mm shaft
- Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
SPEKTRUM S665 SERVO
- 20KG / 270oz-in torque
- 0.12s / 60 degree speed
- 11% more torque than V5 6S RTR servo
- 7.4v operation for more power
- Alloy case center provides improved heat dissipation
- All steel gears with 25T output spline
SPEKTRUM SR315 3 CHANNEL
DUAL PROTOCOL RECEIVER
- Dual Protocol - Compatible with SLT and DSMR 2.4GHz protocol transmitters
- Fast response rate and outstanding range
- Zero tool binding and protocol switching
- SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
- 3-Channel
SPEKTRUM

SLT3 TRANSMITTER

50 & 75 THROTTLE LIMITER

easily match speed to your skills

MAXIMUM COMFORT

ergonomic handle and foam wheel grip

EASY DRIVING

adjustable steering rate

Ready to bash

dBoots BACKFLIP

vented tires for increased
durability & massive traction

ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)

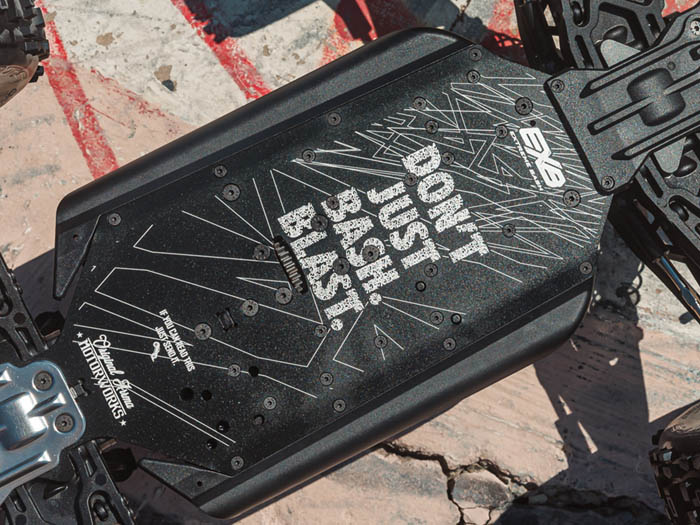

STEEL SKID

for ultimate durability
included as standard
EXB SHOCK CAPS

emulsion design for smooth, consistent damping
SECURE

molded composite rear wing
mount interlocks with rear
shock tower for extra strength
CLEAN LINES

rear body retention button neatly
incorporates into the rear deck

ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)
TOWER-TO-TOWER

split chassis bracing offers improved longitudinal rigidity

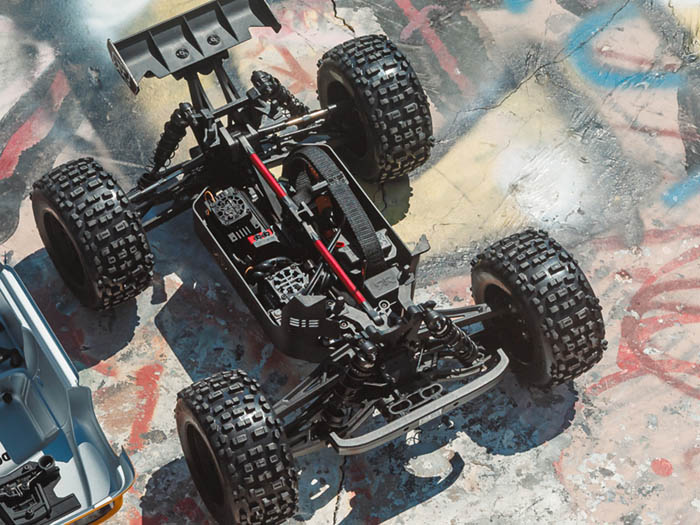

Under the hood

TWO DISTINCTIVE COLOR SCHEMES

sets the NOTORIOUS apart from the crowd

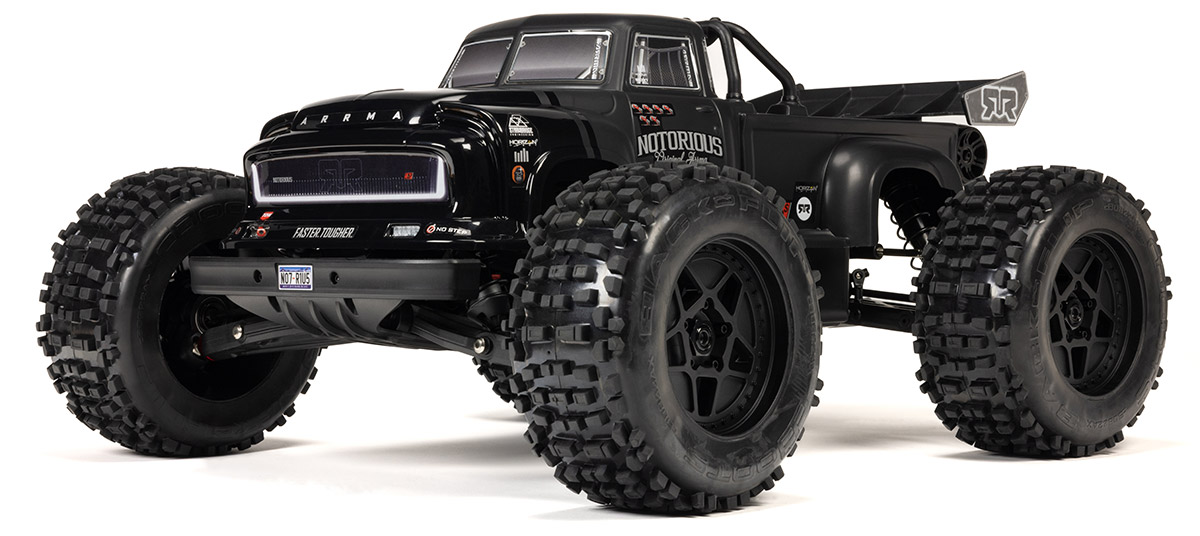

ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)

ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)
RED ANODIZING

to show off aluminum components
RUBBER
SHIELDED
BEARINGS

reduced maintenance
smooth friction-free running
WHEELIE BAR

for crazy stunt action

ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)
INTERNAL FRAME

supports heavy roof landings

Check It Out

ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)
ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)
ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)

ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)
ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)
ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)
ARA8611V6T1 NOTORIOUS 6S STUNT TRUCK (Black)
ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)
ARA8611V6T2 NOTORIOUS 6S STUNT TRUCK (Blue)

Specifications

Overview Detailed Specs Electronics Included/Required

ARRMA Part Number

ARA8611V6T1

ARA8611V6T2

Vehicle Name

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Black

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Blue

SCALE

1/8

MAX SPEED POSSIBLE

60+mph / 96+km/h

POWER TYPE

Brushless

BUILD STATUS

RTR

Saleable Part #

ARA8611V6T1

ARA8611V6T2

Horizon Hobby Saleable Part #

ARA8611V6T1

ARA8611V6T2

BUILD CONFIGURATION OPTIONS

Mid Motor

DRIVE TYPE

4WD

VEHICLE TYPE

Stunt Truck

SURFACE

Off-road

LENGTH

540mm / 21.26"

WHEELBASE

321mm / 12.64"

RIDE HEIGHT

47mm / 1.85"

FRONT WIDTH

458mm / 18.03"

REAR WIDTH

458mm / 18.03"

HEIGHT

246mm / 9.69"

NUMBER OF DIFFERENTIALS

WEIGHT (NO BATTERY)

5.88kg / 12lbs 15oz

BATTERY RECOMMENDATIONS

4S or 6S Lipo (Hard or soft-case) within dimensions 158 x 48 x 70mm or 6.22 x 1.89 x 2.76 inches

WARRANTY LEVEL

2 Year Limited

ARRMA Part Number

ARA8611V6T1

ARA8611V6T2

Vehicle Name

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Black

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Blue

BODY LENGTH

470mm / 18.5"

BODY WIDTH

210mm / 8.27"

BODY HEIGHT

125mm / 4.92"

FRONT SPRING RATE

1.21N/mm

REAR SPRING RATE

0.97N/mm

CAPTURED HINGEPINS

Yes

TURNBUCKLES/FIXED LINKS

Turnbuckles

HARDWARE TYPE

Hex Head

LOCKING DIFFS

DIFFERENTIAL TYPE

Gear

STANDARD SHOCK OIL (Viscosity)

F:1300 R:1300cSt

STANDARD DIFF OIL (Viscosity)

F:80k, C:100k, R:80kcSt

STANDARD SHOCK OIL (Type)

Silicone

STANDARD DIFF OIL (Type)

Silicone

DIFFERENTIAL CROWN GEAR SPECIFICIATION

43T 0.9m

DIFFERENTIAL PINION GEAR SPECIFICIATION

10T 0.9m

INTERNAL GEAR RATIO

4.3

INTERNAL GEAR MATERIAL

Metal

FITTED SPUR SIZE

50Tooth

FITTED SPUR MATERIAL

Metal

FITTED PINION GEAR SIZE

16Tooth

FITTED PINION MATERIAL

Metal

EXTRA SPEED PINION INCLUDED

Yes

PINION AND SPUR TOOTH PITCH

STANDARD FINAL GEAR RATIO

13.44

FINAL GEAR RATIO RANGE

9.77 - 17.92

TIRE STANDARD

MT (3.8")

TIRES INCLUDED

dBoots BACKFLIP

TIRE DIAMETER

172mm / 6.77"

TIRE INSERT TYPE

Medium

DRIVESHAFT TYPE

CVD Front/Dogbone Rear

WHEEL BEAD DIAMETER

97mm / 3.82"

WHEEL HEX SIZE

17mm

WHEEL STANDARD

WHEEL COLOR/FINISH

Black

MOUNTED TIRES

Yes

TIRE ATTACHMENT METHOD

Glued

SERVO HORN MATERIAL

Metal

SERVO SPLINE SIZE

25T

BATTERY MAX DIMENSIONS

158x48x70mm / 6.22x1.89x2.76"

CHASSIS MATERIAL

3mm Plate, 7075-T6 Aluminum

TRIMMED BODY

Yes

BODY-ON BATTERY ACCESS

BODY PIN RETAINERS

Clipless Mounting System

TORQUE SPLIT

50/50

MODEL PRODUCTION YEAR

2024

ARRMA Part Number

ARA8611V6T1

ARA8611V6T2

Vehicle Name

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Black

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Blue

POWER LEVEL

RADIO SYSTEM

Spektrum SLT3 Tx/SR315 Rx 3ch (Dual Protocol Version)

2.4Ghz

Yes

NUMBER OF RADIO CHANNELS

ESC

Spektrum FIRMA 150 V2 SMART

WATERPROOF ELECTRONICS

Yes

ESC CONNECTOR TYPE

IC5

MOTOR

Spektrum FIRMA 4074 2050Kv

MAXIMUM MOTOR SIZE

43mm diameter, 80mm length

SERVO

Spektrum S665 Digital

SERVO GEAR MATERIAL

Steel

MAX SERVO SPEED @7.4v

0.12sec

ARRMA Part Number

ARA8611V6T1

ARA8611V6T2

Vehicle Name

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Black

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Blue

Included

TOOLS INCLUDED

Cross Wrenches and Hex Wrenches (1.5, 2.0, 2.5, 5.0mm)

ADDITIONAL PARTS

IC5 Loop connector (for use with single 4S or 6S battery pack)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE

35C 5000mAh minimum, 100C 5000mAh recommended

REQUIRED ITEMS

2x2S LiPo, 2x3S LiPo, 1x4S LiPo or 1x6S LiPo Battery, LiPo Charging Bag, Charger

Resources

ARA8611V6T1

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Black

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

ARA8611V6T2

1/8 NOTORIOUS 6S V6 4X4 BLX Brushless Stunt Truck RTR, Blue

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts
