The KRATON 6S, but even faster

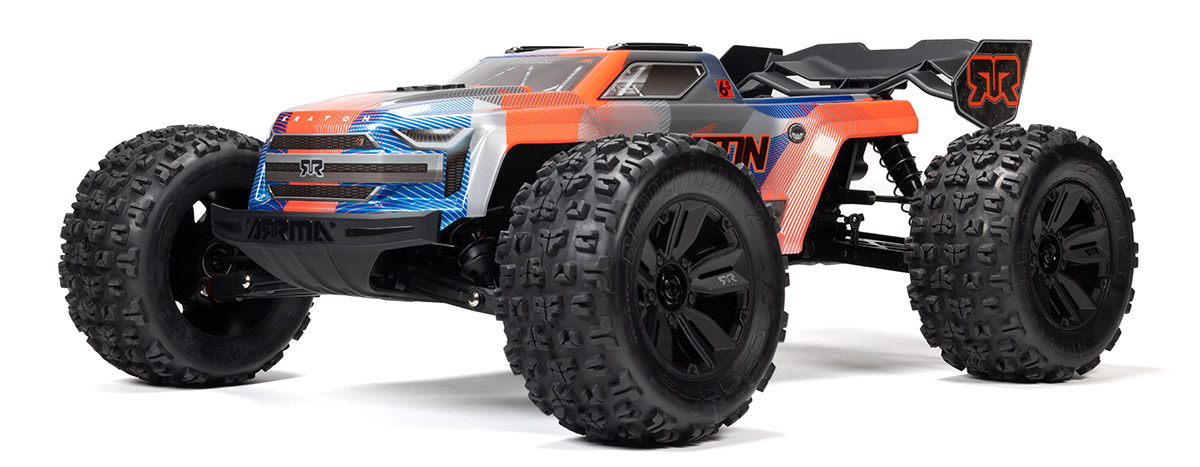

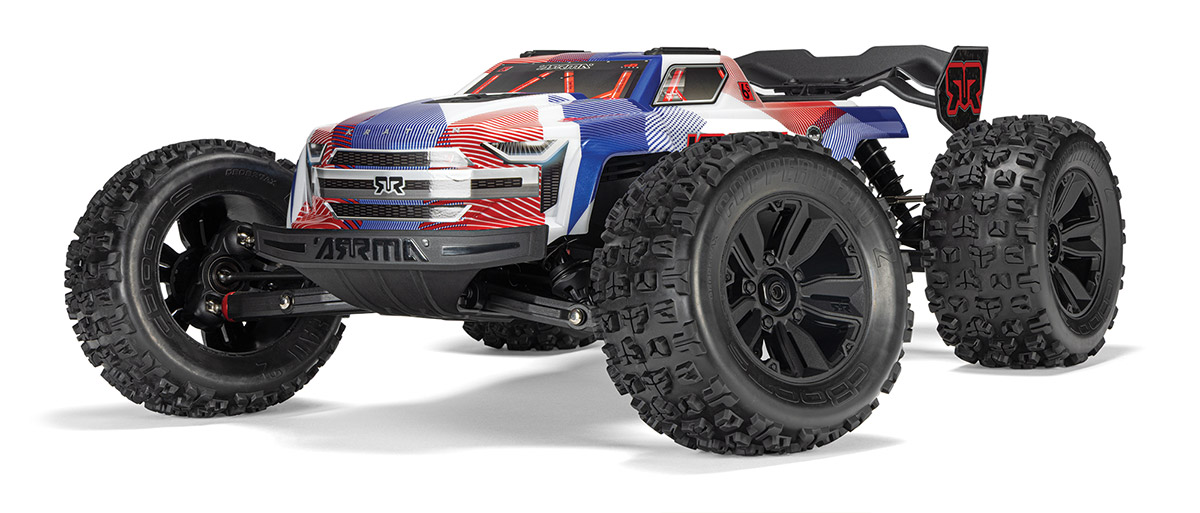

ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)

ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)
ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)
ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)
ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)

All the features

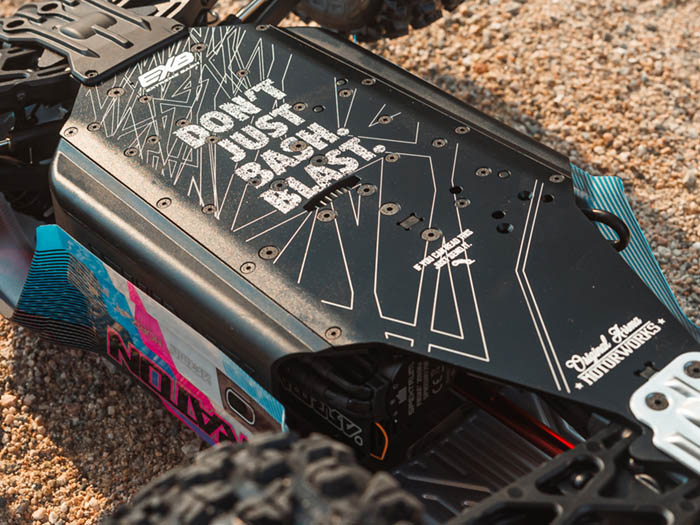

EXB CHASSIS

precision manufactured from
7075-T6 aluminum
fitted as standard

ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)

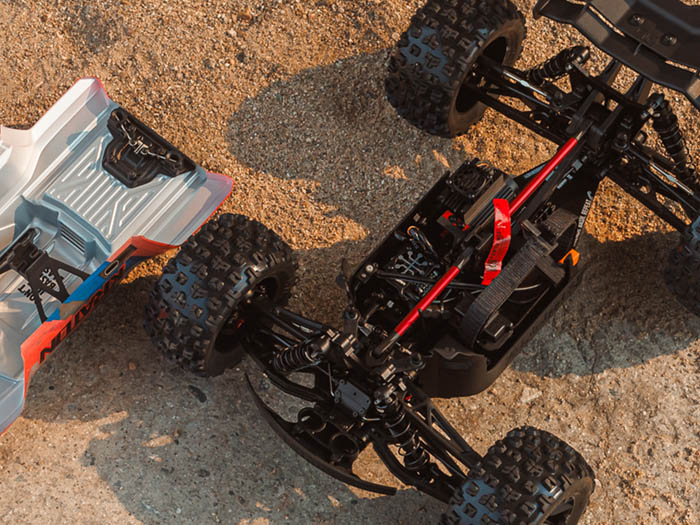

CLIPLESS BODY RETENTION

secure body mounting - zero clips, zero hassle

ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)

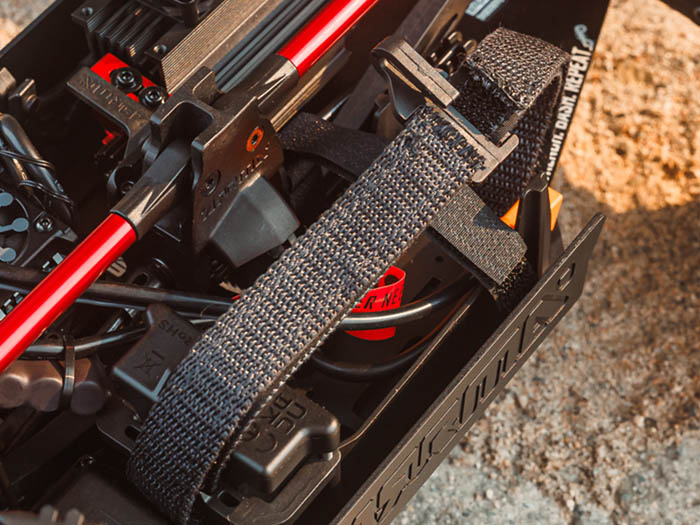

ARAMID FIBER REINFORCED

battery strap with hook & loop fastening
provides fast, secure battery retention

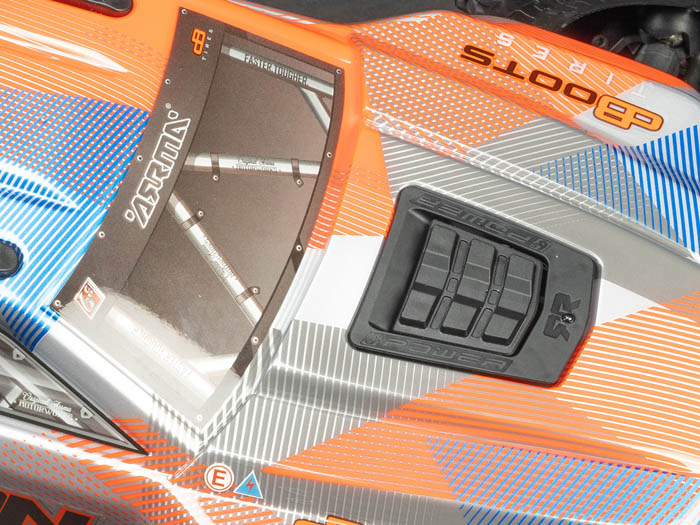

INTEGRATED

body retention buttons preserve
the clean lines of the KRATON

ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)

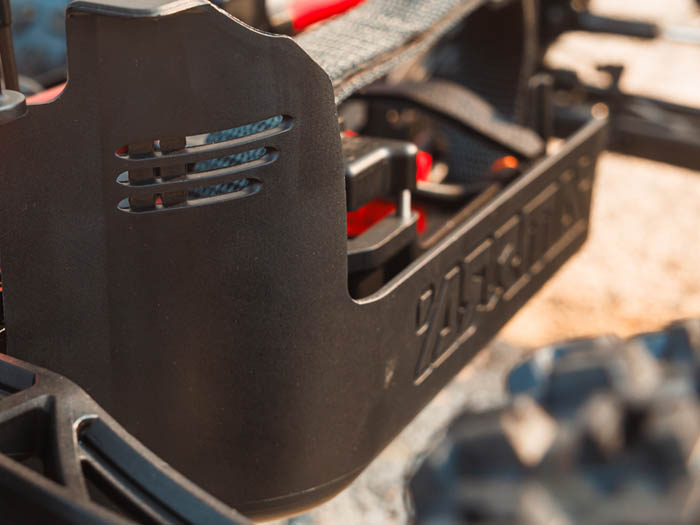

DIRT : DEFLECTED

composite side guards keep the dirt out
with additional venting to assist cooling

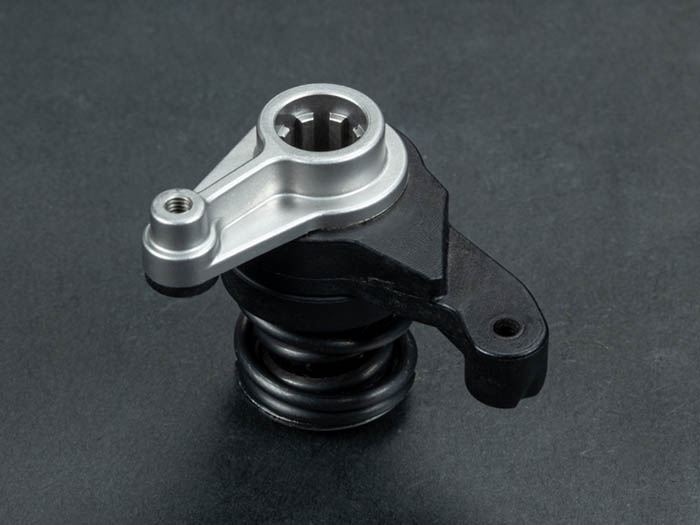

HIGH TORQUE SERVO SAVER

sliding design with dual springs provides precise
control and offers superb driving feedback

Feel the power

FIRMA 150A V2 SMART BRUSHLESS ESC
- All new firmware delivers extreme power, offers better air control and backflips on command
- Waterproof and dustproof design
- 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
- Spektrum SMART Technology
- Fitted with reliable IC5 connectors (EC5 compatible)
- Integrated fan for reduced heat during extreme running
- High quality 10awg wires
- Low voltage cut off and thermal overload protection
- User programmable punch, brake, BEC, reverse speed and motor timing settings
- Monochrome design
SPEKTRUM FIRMA 4074
2050Kv BRUSHLESS MOTOR
- Beautifully etched aluminum can
- 4-pole construction for smooth and consistent power
- 4mm gold bullet connectors for reliable and efficient connection
- Black anodized aluminum motor can for increased heat dissipation
- Super strong 5mm shaft
- Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
SPEKTRUM

SLT3 TRANSMITTER

50 & 75 THROTTLE LIMITER

easily match speed to your skills

MAXIMUM COMFORT

ergonomic handle and foam wheel grip

EASY DRIVING

adjustable steering rate
SPEKTRUM SR315 3 CHANNEL
DUAL PROTOCOL RECEIVER
- Dual Protocol - Compatible with SLT and DSMR 2.4GHz protocol transmitters
- Fast response rate and outstanding range
- Zero tool binding and protocol switching
- SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
- 3-Channel
SPEKTRUM S665 SERVO
- 20KG / 270oz-in torque
- 0.12s / 60 degree speed
- 11% more torque than V5 6S RTR servo
- 7.4v operation for more power
- Alloy case center provides improved heat dissipation
- All steel gears with 25T output spline

Ready to bash

dBoots COPPERHEAD 2

vented tires for increased durability & massive traction

ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)
STEEL SKID

for ultimate durability
included as standard
EXB SHOCK CAPS

emulsion design for smooth, consistent damping
SECURE

molded composite rear wing
mount interlocks with rear
shock tower for extra strength

ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
CLEAN LINES

rear body retention button neatly
incorporates into the rear deck

ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
TOWER-TO-TOWER

split chassis bracing offers
improved longitudinal rigidity

Under the hood

TWO VIVID COLOR SCHEMES

sets the KRATON apart from the crowd

ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)

ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)
SUPER BASHER

front bumper fitted as standard
to cope with the heaviest bashing

ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
BASHFLEX BODY

provides extra durability

ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)
RUBBER
SHIELDED
BEARINGS

reduced maintenance
smooth friction-free running
TOUGH COMPOSITE

molded rear wing provides the downforce

ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
INTERNAL FRAME

supports heavy roof landings

Check It Out

ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)
ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)
ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)
ARA8608V6T2 KRATON 6S SPEED TRUCK (Blue/Pink)
ARA8608V6T1 KRATON 6S SPEED TRUCK (Blue/Orange)

Specifications

Overview Detailed Specs Electronics Included/Required

ARRMA Part Number

ARA8608V6T1

ARA8608V6T2

Vehicle Name

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Orange

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Pink

SCALE

1/8

MAX SPEED POSSIBLE

65+mph / 104+km/h

POWER TYPE

Brushless

BUILD STATUS

RTR

Saleable Part #

ARA8608V6T1

ARA8608V6T2

Horizon Hobby Saleable Part #

ARA8608V6T1

ARA8608V6T2

BUILD CONFIGURATION OPTIONS

Mid Motor

DRIVE TYPE

4WD

VEHICLE TYPE

Speed Monster Truck

SURFACE

Off-road

LENGTH

596mm / 23.46"

WHEELBASE

377mm / 14.84"

RIDE HEIGHT

47mm / 1.85"

FRONT WIDTH

466mm / 18.35"

REAR WIDTH

466mm / 18.35"

HEIGHT

216mm / 8.5"

NUMBER OF DIFFERENTIALS

WEIGHT (NO BATTERY)

5.61kg / 12lbs 6oz

BATTERY RECOMMENDATIONS

4S or 6S Lipo (Hard or soft-case) within dimensions 158 x 48 x 70mm or 6.22 x 1.89 x 2.76 inches

WARRANTY LEVEL

2 Year Limited

ARRMA Part Number

ARA8608V6T1

ARA8608V6T2

Vehicle Name

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Orange

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Pink

BODY LENGTH

460mm / 18.11"

BODY WIDTH

230mm / 9.06"

BODY HEIGHT

130mm / 5.12"

FRONT SPRING RATE

1.21N/mm

REAR SPRING RATE

0.97N/mm

CAPTURED HINGEPINS

Yes

TURNBUCKLES/FIXED LINKS

Turnbuckles

HARDWARE TYPE

Hex Head

LOCKING DIFFS

DIFFERENTIAL TYPE

Gear

STANDARD SHOCK OIL (Viscosity)

F:1300 R:1300cSt

STANDARD DIFF OIL (Viscosity)

F:80k, C:100k, R:80kcSt

STANDARD SHOCK OIL (Type)

Silicone

STANDARD DIFF OIL (Type)

Silicone

DIFFERENTIAL CROWN GEAR SPECIFICIATION

43T 0.9m

DIFFERENTIAL PINION GEAR SPECIFICIATION

10T 0.9m

INTERNAL GEAR RATIO

4.3

INTERNAL GEAR MATERIAL

Metal

FITTED SPUR SIZE

50Tooth

FITTED SPUR MATERIAL

Metal

FITTED PINION GEAR SIZE

16Tooth

FITTED PINION MATERIAL

Metal

EXTRA SPEED PINION INCLUDED

Yes

PINION AND SPUR TOOTH PITCH

STANDARD FINAL GEAR RATIO

13.44

FINAL GEAR RATIO RANGE

9.77 - 17.92

TIRE STANDARD

TIRES INCLUDED

dBoots COPPERHEAD2

TIRE DIAMETER

169mm / 6.65"

TIRE INSERT TYPE

Medium

DRIVESHAFT TYPE

CVD Front/Dogbone Rear

WHEEL BEAD DIAMETER

97mm / 3.82"

WHEEL HEX SIZE

17mm

WHEEL STANDARD

WHEEL COLOR/FINISH

Black

MOUNTED TIRES

Yes

TIRE ATTACHMENT METHOD

Glued

SERVO HORN MATERIAL

Metal

SERVO SPLINE SIZE

25T

BATTERY MAX DIMENSIONS

158x48x70mm / 6.22x1.89x2.76"

CHASSIS MATERIAL

3mm Plate, 7075-T6 Aluminum

TRIMMED BODY

Yes

BODY-ON BATTERY ACCESS

BODY PIN RETAINERS

Clipless Mounting System

TORQUE SPLIT

50/50

MODEL PRODUCTION YEAR

2024

ARRMA Part Number

ARA8608V6T1

ARA8608V6T2

Vehicle Name

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Orange

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Pink

POWER LEVEL

RADIO SYSTEM

Spektrum SLT3 Tx/SR315 Rx 3ch (Dual Protocol Version)

2.4Ghz

Yes

NUMBER OF RADIO CHANNELS

ESC

Spektrum FIRMA 150 V2 SMART

WATERPROOF ELECTRONICS

Yes

ESC CONNECTOR TYPE

IC5

MOTOR

Spektrum FIRMA 4074 2050Kv

MAXIMUM MOTOR SIZE

43mm diameter, 80mm length

SERVO

Spektrum S665 Digital

SERVO GEAR MATERIAL

Steel

MAX SERVO SPEED @7.4v

0.12sec

ARRMA Part Number

ARA8608V6T1

ARA8608V6T2

Vehicle Name

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Orange

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Pink

Included

TOOLS INCLUDED

Cross Wrenches and Hex Wrenches (1.5, 2.0, 2.5, 5.0mm)

ADDITIONAL PARTS

IC5 Loop connector (for use with single 4S or 6S battery pack)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE

35C 5000mAh minimum, 100C 5000mAh recommended

REQUIRED ITEMS

2x2S LiPo, 2x3S LiPo, 1x4S LiPo OR 1x6S LiPo Battery, LiPo Charging Bag, Charger

Resources

ARA8608V6T1

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Orange

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

ARA8608V6T2

1/8 KRATON 6S V6 4X4 BLX Brushless Speed Monster Truck RTR, Blue/Pink

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts
