ARRMA TYPHON 6S BLX

Lower, Sexier, Faster.

TYPHON FEATURES

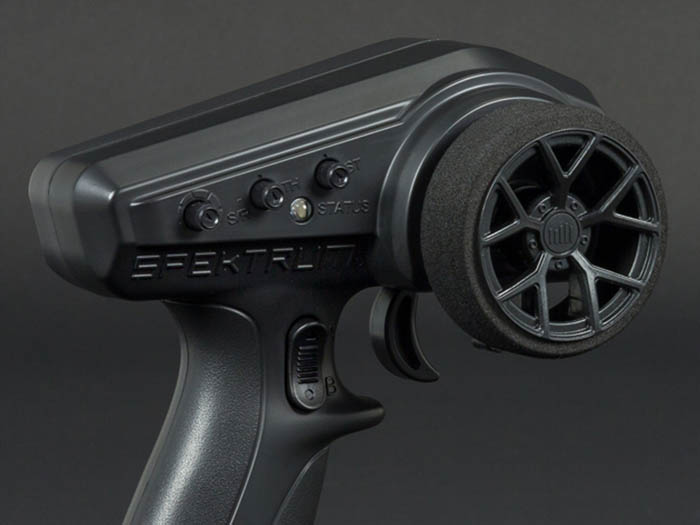

  • SPEKTRUM® SLT3® RADIO
    • Superb SLT response rate

    • 50% and 75% throttle limited switch - great for beginners

    • Steering & throttle rate & trim adjustments with throttle and steering reversing

    • Foam steering wheel grip

    • Compatible with Tactic Receivers
    SPEKTRUM® SR315 RECEIVER
    • Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters

    • Fast reponse rate and outstanding range

    • No tool binding and protocol switching

    • SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)

    • 3-Channel

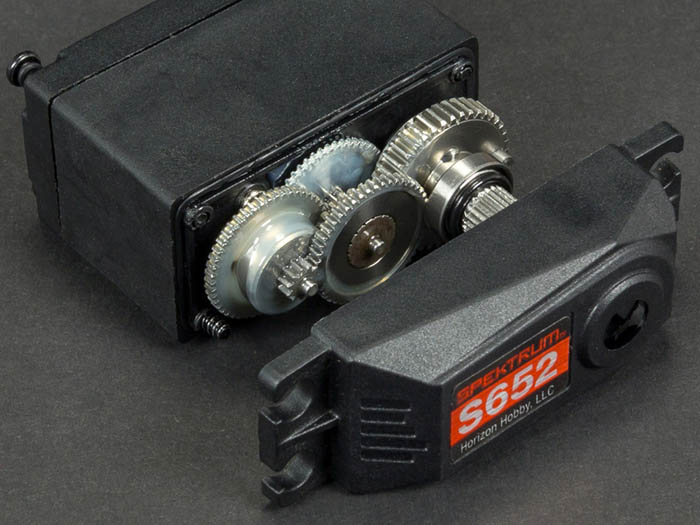

  • SPEKTRUM® SPMS652
    DIGITAL SERVO
    • Waterproof*
    • 19.08kg-cm/265oz-in Torque @7.4V
    *For details of waterproof standards, please refer to the product instruction manuals
    32% MORE TORQUE
    5% FASTER
    THAN ADS-15M SERVO
    ALL STEEL GEARS
  • SPEKTRUM® SMART TECHNOLOGY INCLUDED
    FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor

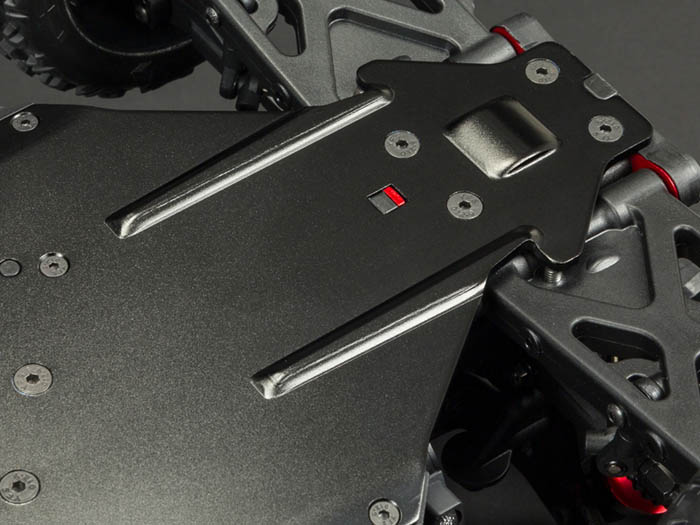

  • UPDATED
    CHASSIS
    DESIGN
    Wider rear section and 3D form introduced in key areas to greatly improve strength

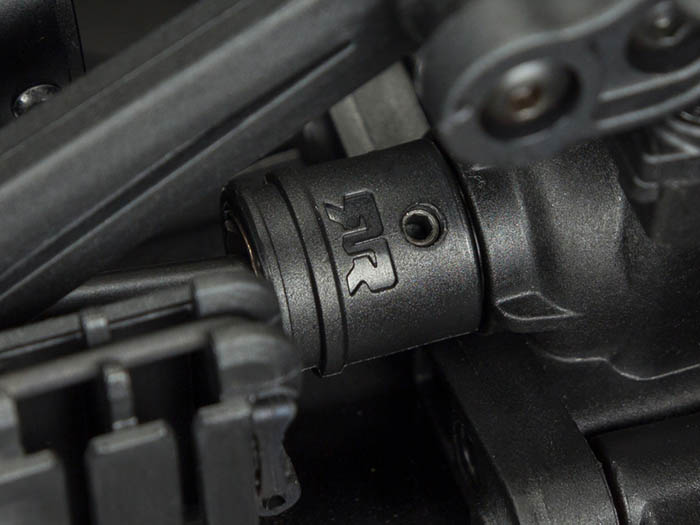

  • SAFE-D FIRST
    input gears are keyed to the drive cups composite sleeves
    to fortify retention of the drive cup set screw

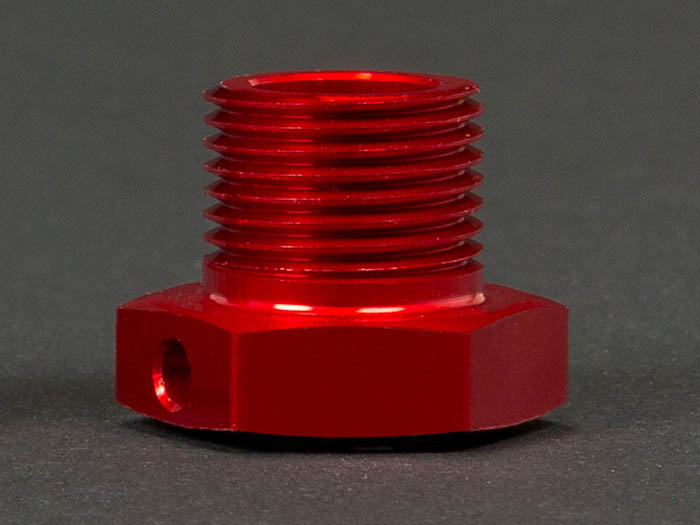

  • WIDER WHEEL HUBS
    increased wheel-to-hub clearance
    for greater durability

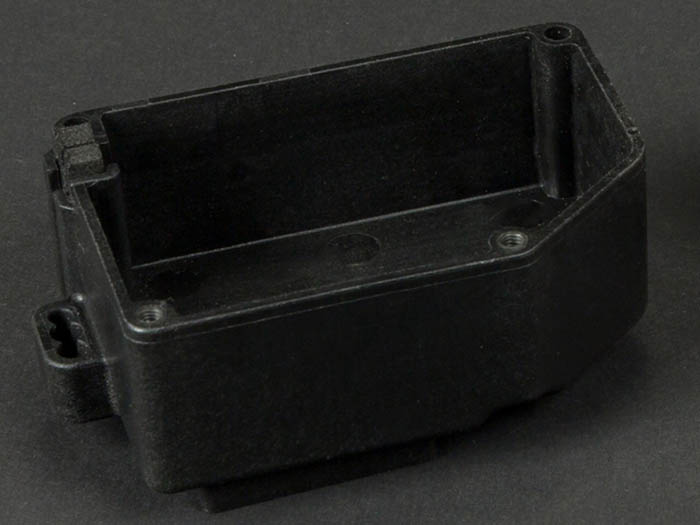

  • GO LARGE
    large volume waterproof receiver box

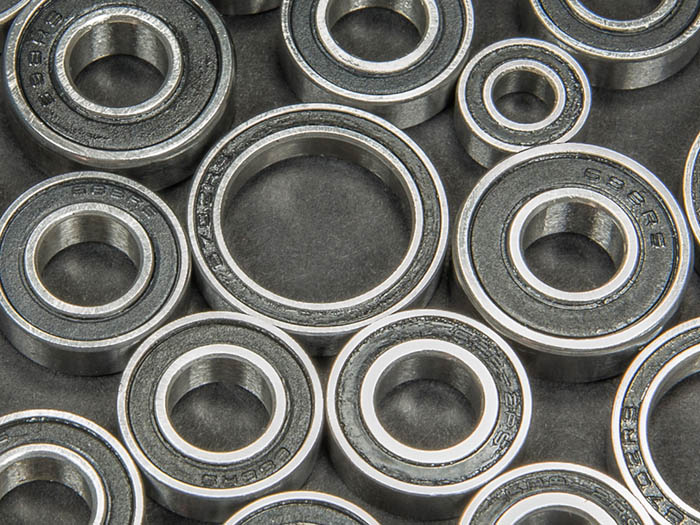

  • RUBBER
    SHIELDED
    BEARINGS
    longer life, less maintenance

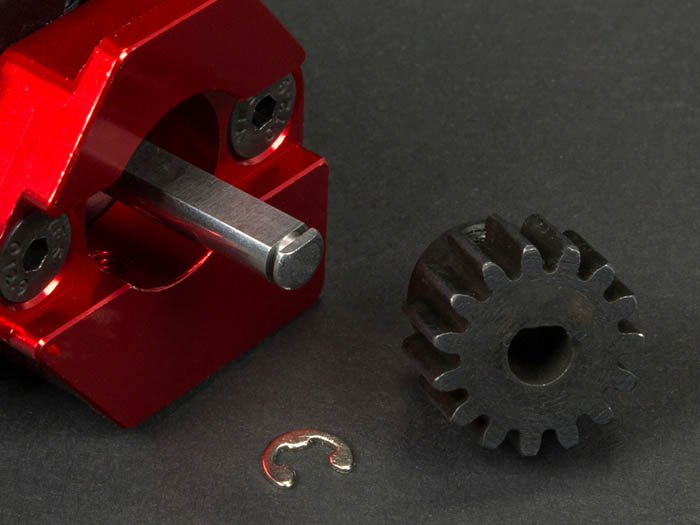

  • SAFE-D5
    pinion is keyed to the motor shaft and retained with an e-clip for added safety
    steel spacer tube prevents the pinion from contacting the motor plate
  • EXB COMPATIBLE*
    ALUMINUM TOP PLATE
    *compatible with ARA320564 FRONT CENTER CHASSIS BRACE ALUMINUM 98mm
    reversable design - one side for front braces with a 3mm diameter screw, flip it over for front braces with a 4mm diameter screw

ENGINEERED TO THRILL. DESIGNED TO BASH

  • **113+km/h. Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.
  • ALUMINUM SHOCK
    TOWERS FRONT
    & REAR
  • FRONT PIVOT BALL SUSPENSION
    for precise handling at top speeds
  • 3 DIFFS, 1 TOUGH TRANSMISSION
    efficient power transfer, blistering speed
    1
    2
    3
  • EASY & SECURE MOUNTING
    FOR A WIDE RANGE OF BATTERIES
  • FAST MAINTENANCE
    WITH EASY-ACCESS
    4 bolt center diff removal
  • SLIP & SLIDE
    sliding motor mount for easy meshing
  • HEAVY-DUTY
    tough A-arms and drivetrain
    components, keep you
    bashing for longer

CONSTANT IMPROVEMENT – FASTER FUN

BRUSHLESS EXTREME 6S – REALIABLE, DEPENDABLE, POWERFUL

  • **113+km/h. Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.
    • Fast Response SLT™ Protocol

    • Foam wheel

    • Improved Grip & Trigger Feel

    • Improved Grip & Trigger Force

    • 2-Way Thumb Switch 3rd Channel

    • 50% & 75% Throttle Mode (For Beginners)

    • TACTIC® SLT™ Receiver Compatible
    • Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters

    • Fast reponse rate and outstanding range

    • No tool binding and protocol switching

    • SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)

    • 3-Channel

    • Waterproof and dustproof design

    • 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)

    • Spektrum® SMART Technology

    • Fitted with reliable IC5® connectors (EC5™ compatible)

    • Integrated fan for reduced heat during extreme running

    • High quality 10awg wires

    • Low voltage cut off and thermal overload protection

    • User programmable punch, brake, BEC, reverse speed and motor timing settings
    FIRMA™ 150A SMART Brushless ESC
    • 2050Kv 4074 size 6S brushless motor

    • Beautifully etched aluminum can

    • 4-pole construction for smooth and consistent power

    • 4mm gold bullet connectors for reliable and efficient connection

    • Black anodized aluminum motor can for increased heat dissipation

    • Super strong 5mm shaft

    • Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
    FIRMA™ 4074 2050Kv Brushless Motor
  • SPEKTRUM® SPMS652 DIGITAL SERVO
    • Waterproof*

    • Strong steel gears

    • 19.08kg-cm/265oz-in Torque @7.4V

    • 32% More torque and 5% faster than ADS-15M Servo
    *For details of waterproof standards, please refer to the product instruction manuals
  • LARGE VOLUME
    WATERPROOF
    RECEIVER BOX
  • EASY ACCESS RAPID REMOVAL
    DIFFS WITH ALL METAL GEARS
  • HEAVY-DUTY
    SHOCK DESIGN
    INCLUDING 4MM
    SHOCK SHAFTS
  • OPTIONAL SPEED PINION INCLUDED
    red anodized motor mount and
    Mod 1 spur and pinion gears to
    handle optimum performance
  • READY TO BLAST
    high-speed wheels & multi-
    terrain dBoots® KATAR
    tires for speed runs and fun

Specifications

ARRMA Part Number
ARA8606V5
Vehicle Name
TYPHON 6S BLX 1/8TH BUGGY RTR (BLACK)
SCALE
1/8
MAX SPEED POSSIBLE
70+mph / 112+km/h
POWER TYPE
Brushless
BUILD STATUS
RTR
Saleable Part #
ARA8606V5
Horizon Hobby Saleable Part #
ARA8606V5
BUILD CONFIGURATION OPTIONS
Mid Motor
DRIVE TYPE
4WD
VEHICLE TYPE
Buggy
SURFACE
Off-road
LENGTH
510mm / 20.08"
WHEELBASE
328mm / 12.91"
RIDE HEIGHT
27mm / 1.06"
FRONT WIDTH
310mm / 12.2"
REAR WIDTH
310mm / 12.2"
HEIGHT
190mm / 7.48"
NUMBER OF DIFFERENTIALS
3
WEIGHT (NO BATTERY)
3.42kg / 7lbs 9oz
BATTERY RECOMMENDATIONS
4S or 6S Lipo (Hard or soft-case) within dimensions 158 x 48 x 51mm or 6.22 x 1.89 x 2.00 inches
WARRANTY LEVEL
2 Year Limited
ARRMA Part Number
ARA8606V5
Vehicle Name
TYPHON 6S BLX 1/8TH BUGGY RTR (BLACK)
BODY LENGTH
325mm / 12.8"
BODY WIDTH
185mm / 7.28"
BODY HEIGHT
94mm / 3.7"
FRONT SPRING RATE
0.75N/mm
REAR SPRING RATE
0.56N/mm
CAPTURED HINGEPINS
Yes
TURNBUCKLES/FIXED LINKS
Turnbuckles
HARDWARE TYPE
Hex Head
LOCKING DIFFS
No
DIFFERENTIAL TYPE
Gear
STANDARD SHOCK OIL (Viscosity)
F:550 R:550cSt
STANDARD DIFF OIL (Viscosity)
F:7k, C:10k, R:7kcSt
STANDARD SHOCK OIL (Type)
Silicone
STANDARD DIFF OIL (Type)
Silicone
DIFFERENTIAL CROWN GEAR SPECIFICIATION
43T 1m
DIFFERENTIAL PINION GEAR SPECIFICIATION
13T 1m
INTERNAL GEAR RATIO
3.3
INTERNAL GEAR MATERIAL
Metal
FITTED SPUR SIZE
50Tooth
FITTED SPUR MATERIAL
Metal
FITTED PINION GEAR SIZE
16Tooth
FITTED PINION MATERIAL
Metal
EXTRA SPEED PINION INCLUDED
Yes
PINION AND SPUR TOOTH PITCH
1m
STANDARD FINAL GEAR RATIO
10.31
FINAL GEAR RATIO RANGE
13.8 - 7.5
TIRE STANDARD
1/8th Buggy (17mm Hex)
TIRES INCLUDED
dBoots KATAR B
TIRE DIAMETER
118mm / 4.65"
TIRE INSERT TYPE
Medium
DRIVESHAFT TYPE
CVD Front/Dogbone Rear
WHEEL BEAD DIAMETER
83mm / 3.27"
WHEEL HEX SIZE
17mm
WHEEL STANDARD
1/8th Buggy (17mm Hex)
WHEEL COLOR/FINISH
Black
MOUNTED TIRES
Yes
TIRE ATTACHMENT METHOD
Glued
BOX DIMENSIONS
630x330x220mm / 24.8x12.99x8.66"
SERVO HORN MATERIAL
Metal
SERVO SPLINE SIZE
23T
BATTERY MAX DIMENSIONS
158x48x51mm / 6.22x1.89x2.01"
CHASSIS MATERIAL
3mm Plate, 6061-T6 Aluminum
TRIMMED BODY
Yes
BODY-ON BATTERY ACCESS
No
BODY PIN RETAINERS
Yes
TORQUE SPLIT
50/50
MODEL PRODUCTION YEAR
2020
ARRMA Part Number
ARA8606V5
Vehicle Name
TYPHON 6S BLX 1/8TH BUGGY RTR (BLACK)
POWER LEVEL
6S
RADIO SYSTEM
Spektrum SLT3 Tx/SR315 Rx 3ch (Dual Protocol Version)
2.4Ghz
Yes
NUMBER OF RADIO CHANNELS
3
ESC
Spektrum FIRMA 150 SMART
WATERPROOF ELECTRONICS
Yes
ESC CONNECTOR TYPE
IC5
MOTOR
Spektrum FIRMA 4074 2050Kv
MAXIMUM MOTOR SIZE
43mm diameter, 80mm length
SERVO
Spektrum S652 Digital
SERVO GEAR MATERIAL
Steel
MAX SERVO SPEED @7.4v
0.167sec
ARRMA Part Number
ARA8606V5
Vehicle Name
TYPHON 6S BLX 1/8TH BUGGY RTR (BLACK)

Included

OPTION GEARING
20 Tooth pinion
TOOLS INCLUDED
Cross Wrenches and Hex Wrenches (1.5, 2.0, 2.5, 5.0mm)
ADDITIONAL PARTS
20T Speed Pinion, IC5 Loop connector (for use with single 4S or 6S battery pack)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
35C 5000mAh minimum, 100C 5000mAh recommended
REQUIRED ITEMS
2x2S LiPo, 2x3S LiPo, 1x4S LiPo OR 1x6S LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
