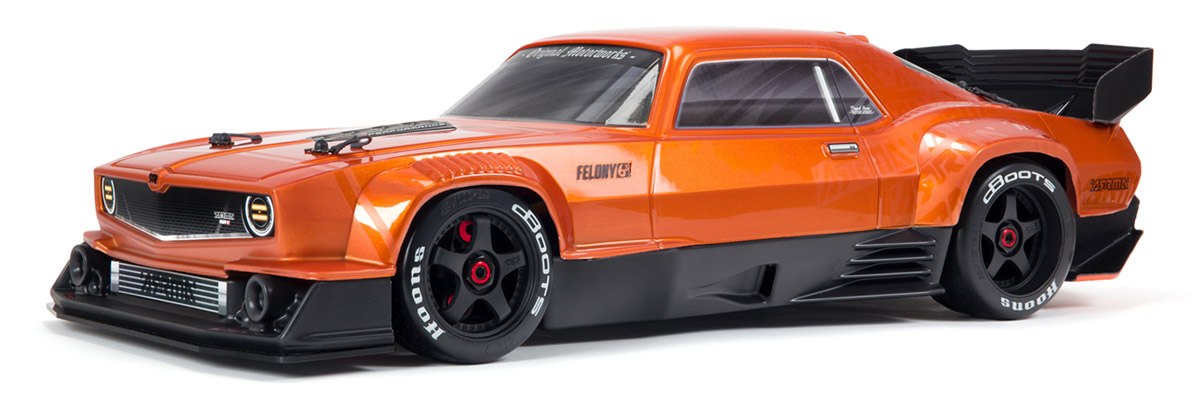

FELONY 6S BLX RESTO-MOD MUSCLE CAR

MUSCLE CAR MADNESS

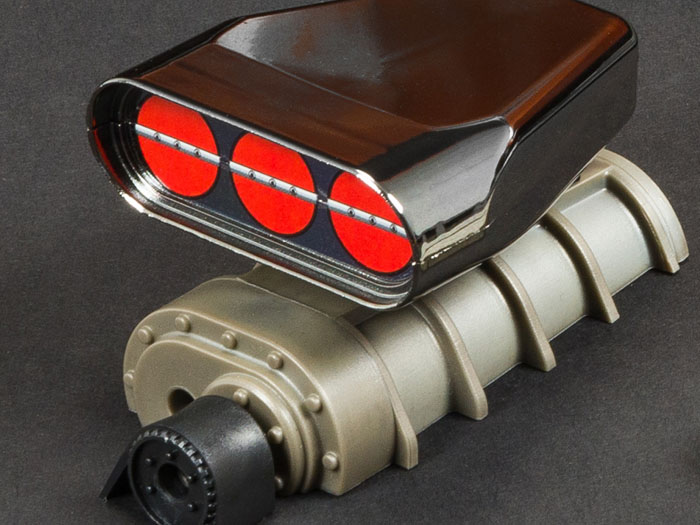

UNDER THE HIGH-PERFORMANCE HOOD

ALL-ROAD MUSCLE POWER

FELONY POWER & TECHNOLOGY

Specifications

ARRMA Part Number
ARA7617V2T1
ARA7617V2T2
Vehicle Name
FELONY STREET BASH 6S BLX 1/7TH SCALE ALL-ROAD RESTO-MOD MUSCLE CAR (BLACK)
FELONY STREET BASH 6S BLX 1/7TH SCALE ALL-ROAD RESTO-MOD MUSCLE CAR (ORANGE)
SCALE
1/7
1/7
MAX SPEED POSSIBLE
80+mph / 128+km/h
80+mph / 128+km/h
POWER TYPE
Brushless
Brushless
BUILD STATUS
RTR
RTR
Saleable Part #
ARA7617V2
ARA7617V2T2
BUILD CONFIGURATION OPTIONS
Mid Motor
Mid Motor
DRIVE TYPE
4WD
4WD
VEHICLE TYPE
Resto-Mod Muscle Car
Resto-Mod Muscle Car
SURFACE
All-road
All-road
LENGTH
725mm / 28.54"
725mm / 28.54"
WHEELBASE
406mm / 15.98"
406mm / 15.98"
RIDE HEIGHT
15mm / 0.59"
15mm / 0.59"
FRONT WIDTH
308mm / 12.13"
308mm / 12.13"
REAR WIDTH
328mm / 12.91"
328mm / 12.91"
HEIGHT
192mm / 7.56"
192mm / 7.56"
NUMBER OF DIFFERENTIALS
3
3
WEIGHT (NO BATTERY)
5kg / 11lbs
5kg / 11lbs
BATTERY RECOMMENDATIONS
2x2S or 2x3S Lipo (Hard or soft-case) within dimensions 180 x 55 x 70mm or 7.08 x 2.16 x 2.76 inches
2x2S or 2x3S Lipo (Hard or soft-case) within dimensions 180 x 55 x 70mm or 7.08 x 2.16 x 2.76 inches
WARRANTY LEVEL
2 Year Limited
2 Year Limited
ARRMA Part Number
ARA7617V2T1
ARA7617V2T2
Vehicle Name
FELONY STREET BASH 6S BLX 1/7TH SCALE ALL-ROAD RESTO-MOD MUSCLE CAR (BLACK)
FELONY STREET BASH 6S BLX 1/7TH SCALE ALL-ROAD RESTO-MOD MUSCLE CAR (ORANGE)
BODY LENGTH
700mm / 27.56"
700mm / 27.56"
BODY WIDTH
328mm / 12.91"
328mm / 12.91"
BODY HEIGHT
176mm / 6.93"
176mm / 6.93"
FRONT SPRING RATE
4.70N/mm
4.70N/mm
REAR SPRING RATE
4.70N/mm
4.70N/mm
CAPTURED HINGEPINS
Yes
Yes
TURNBUCKLES/FIXED LINKS
Turnbuckles
Turnbuckles
HARDWARE TYPE
Hex Head
Hex Head
LOCKING DIFFS
No
No
DIFFERENTIAL TYPE
Gear
Gear
STANDARD SHOCK OIL (Viscosity)
2000cSt
2000cSt
STANDARD DIFF OIL (Viscosity)
10k/100k/10kcSt
10k/100k/10kcSt
STANDARD SHOCK OIL (Type)
Silicone
Silicone
STANDARD DIFF OIL (Type)
Silicone
Silicone
DIFFERENTIAL CROWN GEAR SPECIFICIATION
F: 42T 0.9m; R: 45T 0.9m
F: 42T 0.9m; R: 45T 0.9m
DIFFERENTIAL PINION GEAR SPECIFICIATION
F: 15T 0.9m; R: 14T 0.9m
F: 15T 0.9m; R: 14T 0.9m
INTERNAL GEAR RATIO
F: 2.8; R: 3.21
F: 2.8; R: 3.21
INTERNAL GEAR MATERIAL
Metal
Metal
FITTED SPUR SIZE
46Tooth
46Tooth
FITTED SPUR MATERIAL
Metal
Metal
FITTED PINION GEAR SIZE
16Tooth
16Tooth
FITTED PINION MATERIAL
Metal
Metal
PINION AND SPUR TOOTH PITCH
1m
1m
STANDARD FINAL GEAR RATIO
F:8.05; R:9.24
F:8.05; R:9.24

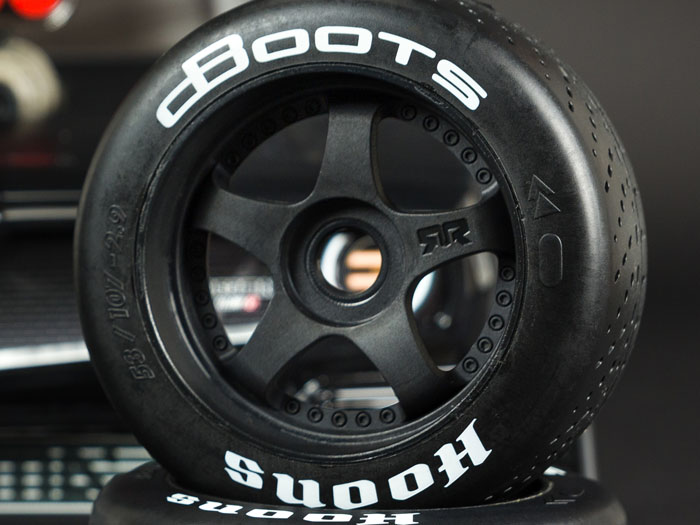

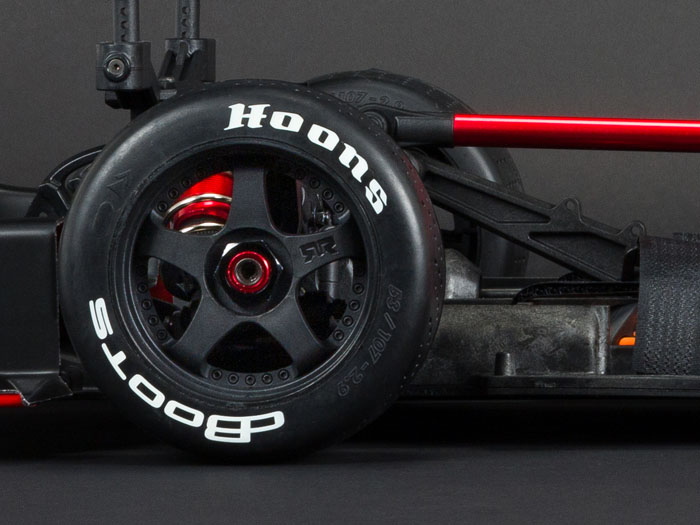

TIRES INCLUDED
Yes
Yes
TIRE DIAMETER
100/107mm / 3.94/4.21"
100/107mm / 3.94/4.21"

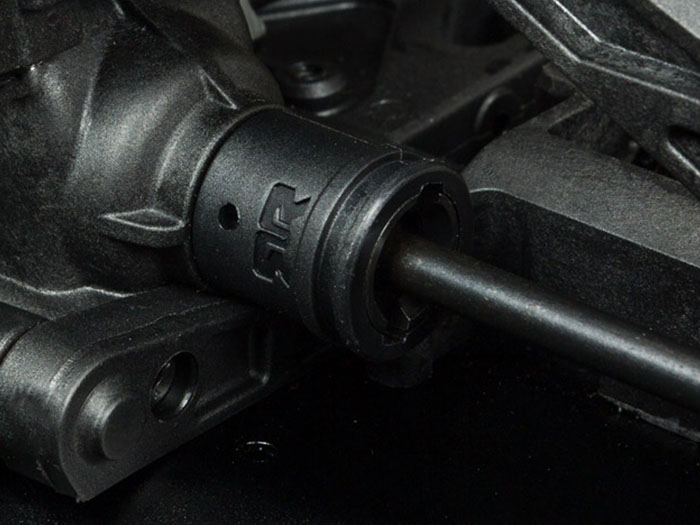

DRIVESHAFT TYPE
CVD Front/Dogbone Rear
CVD Front/Dogbone Rear
WHEEL BEAD DIAMETER
75/83mm / 2.95/3.27"
75/83mm / 2.95/3.27"
WHEEL HEX SIZE
17mm
17mm
WHEEL COLOR/FINISH
Black
Black
MOUNTED TIRES
Yes
Yes
TIRE ATTACHMENT METHOD
Glued
Glued
SERVO HORN MATERIAL
Metal
Metal
SERVO SPLINE SIZE
25T
25T
BATTERY MAX DIMENSIONS
180x55x70mm / 7.09x2.17x2.76"
180x55x70mm / 7.09x2.17x2.76"
CHASSIS MATERIAL
3mm Plate, 6061-T6 Aluminum
3mm Plate, 6061-T6 Aluminum
TRIMMED BODY
Yes
Yes
BODY-ON BATTERY ACCESS
No
No
BODY PIN RETAINERS
Yes
Yes
MODEL PRODUCTION YEAR
2020
2020
ARRMA Part Number
ARA7617V2T1
ARA7617V2T2
Vehicle Name
FELONY STREET BASH 6S BLX 1/7TH SCALE ALL-ROAD RESTO-MOD MUSCLE CAR (BLACK)
FELONY STREET BASH 6S BLX 1/7TH SCALE ALL-ROAD RESTO-MOD MUSCLE CAR (ORANGE)
POWER LEVEL
6S
6S

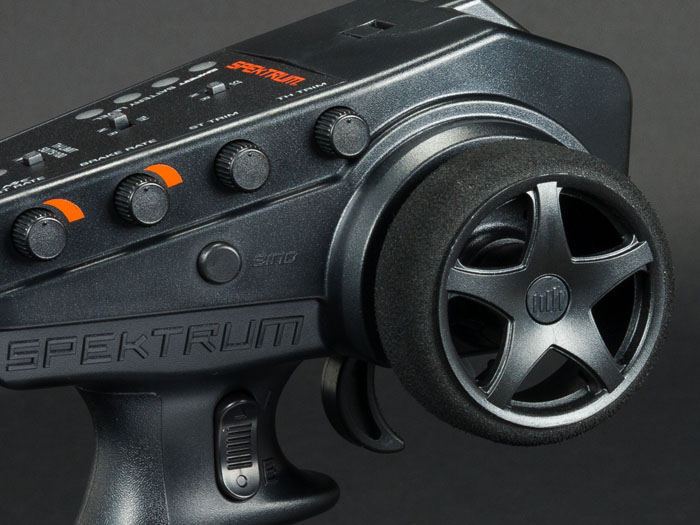

RADIO SYSTEM
DX3
DX3
2.4Ghz
Yes
Yes
NUMBER OF RADIO CHANNELS
3
3

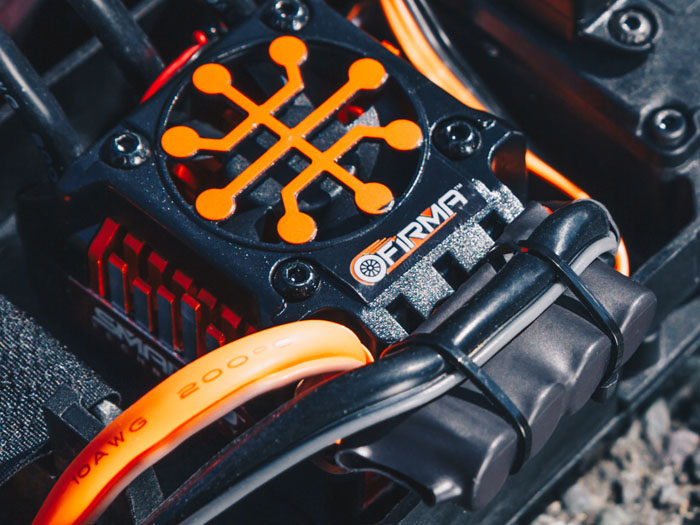

ESC
SPEKTRUM FIRMA 150A
SPEKTRUM FIRMA 150A
WATERPROOF ELECTRONICS
Yes
Yes
ESC CONNECTOR TYPE
IC5
IC5

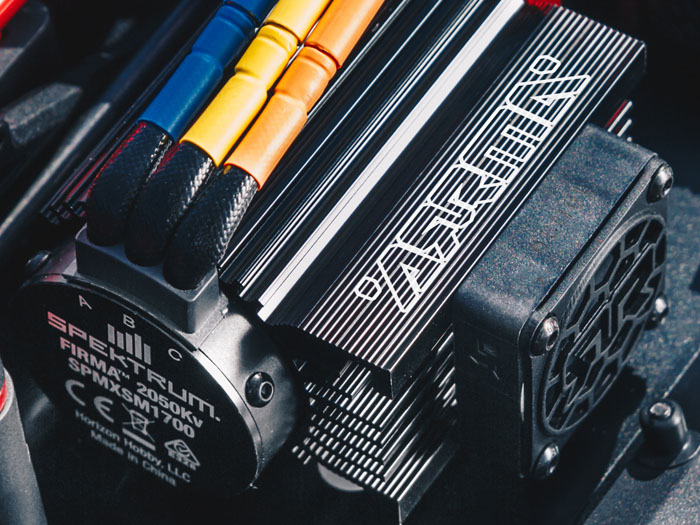

MOTOR
SPEKTRUM FIRMA 4074
SPEKTRUM FIRMA 4074
MAXIMUM MOTOR SIZE
43mm diameter, 80mm length
43mm diameter, 80mm length
SERVO
ADS-15M Waterproof
ADS-15M Waterproof
SERVO GEAR MATERIAL
Metal
Metal
MAX SERVO TORQUE @6v
14kg-cm / 195oz-in
14kg-cm / 195oz-in
MAX SERVO SPEED @6v
0.16sec
0.16sec
ARRMA Part Number
ARA7617V2T1
ARA7617V2T2
Vehicle Name
FELONY STREET BASH 6S BLX 1/7TH SCALE ALL-ROAD RESTO-MOD MUSCLE CAR (BLACK)
FELONY STREET BASH 6S BLX 1/7TH SCALE ALL-ROAD RESTO-MOD MUSCLE CAR (ORANGE)

Included

OPTION GEARING
27
27
TOOLS INCLUDED
Cross Wrenches and Hex Wrenches (1.5, 2.0, 2.5, 3.0, 5.0mm)
Cross Wrenches and Hex Wrenches (1.5, 2.0, 2.5, 3.0, 5.0mm)
ADDITIONAL PARTS
27T Speed Pinion, IC5 Loop connector (for use with single 4S or 6S battery pack)
27T Speed Pinion, IC5 Loop connector (for use with single 4S or 6S battery pack)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
35C 5000mAh minimum, 100C 5000mAh recommended
35C 5000mAh minimum, 100C 5000mAh recommended
REQUIRED ITEMS
2x2S LiPo, 2x3S LiPo, 1x4S LiPo OR 1x6S LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
2x2S LiPo, 2x3S LiPo, 1x4S LiPo OR 1x6S LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
