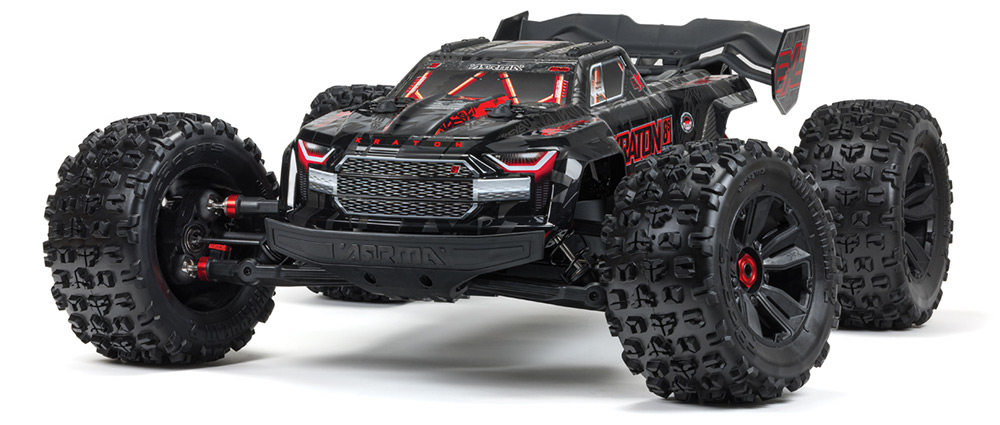

The Kraton 8S - Amplified

More Durable, More Power, More Capable

Powerful Spektrum Electronics

Bigger. Tougher. Stronger

Under The Hood

Option Parts

Specifications

ARRMA Part Number
ARA5808V2T1
Vehicle Name
KRATON 4X4 8S BLX BRUSHLESS 1/5TH 4WD SPEED MONSTER TRUCK
SCALE
1/5
MAX SPEED POSSIBLE
60+mph / 96+km/h
POWER TYPE
Brushless
BUILD STATUS
RTR
Saleable Part #
ARA5808V2T1
Horizon Hobby Saleable Part #
ARA5808V2T1
BUILD CONFIGURATION OPTIONS
Mid Motor
DRIVE TYPE
4WD
VEHICLE TYPE
Monster Truck
SURFACE
Off-road
LENGTH
771mm / 30.35"
WHEELBASE
491mm / 19.33"
RIDE HEIGHT
65mm / 2.56"
FRONT WIDTH
602mm / 23.7"
REAR WIDTH
602mm / 23.7"
HEIGHT
282mm / 11.1"
NUMBER OF DIFFERENTIALS
3
WEIGHT (NO BATTERY)
11.2kg / 24lbs 11oz
BATTERY RECOMMENDATIONS
100C 5000mAh 2 x 4S Lipo (Hard or soft-case) within dimensions 180 x 55 x 53mm or 7.09 x 2.16 x 2.09 inches
WARRANTY LEVEL
2 Year Limited
ARRMA Part Number
ARA5808V2T1
Vehicle Name
KRATON 4X4 8S BLX BRUSHLESS 1/5TH 4WD SPEED MONSTER TRUCK
BODY LENGTH
605mm / 23.82"
BODY WIDTH
281mm / 11.06"
BODY HEIGHT
163mm / 6.42"
FRONT SPRING RATE
2.54N/mm
REAR SPRING RATE
2.21N/mm
CAPTURED HINGEPINS
Yes
TURNBUCKLES/FIXED LINKS
Turnbuckles
HARDWARE TYPE
Hex Head
LOCKING DIFFS
No
DIFFERENTIAL TYPE
Gear
STANDARD SHOCK OIL (Viscosity)
700cSt
STANDARD DIFF OIL (Viscosity)
100k/20M/100kcSt
STANDARD SHOCK OIL (Type)
Silicone
STANDARD DIFF OIL (Type)
Silicone
DIFFERENTIAL CROWN GEAR SPECIFICIATION
39T 1.5m
DIFFERENTIAL PINION GEAR SPECIFICIATION
12T 1.5m
INTERNAL GEAR RATIO
9.06
INTERNAL GEAR MATERIAL
Metal
FITTED SPUR SIZE
47Tooth
FITTED SPUR MATERIAL
Metal
FITTED PINION GEAR SIZE
23Tooth
FITTED PINION MATERIAL
Metal
EXTRA SPEED PINION INCLUDED
30
PINION AND SPUR TOOTH PITCH
1m
FINAL GEAR RATIO RANGE
9.1 - 28.4
TIRE STANDARD
MT (4.88")
TIRES INCLUDED
dBoots COPPERHEAD 2 BIG BLOCK
TIRE DIAMETER
211mm / 8.31"
TIRE INSERT TYPE
Medium
DRIVESHAFT TYPE
CVD Front & Rear
WHEEL BEAD DIAMETER
124mm / 4.88"
WHEEL HEX SIZE
24mm
WHEEL STANDARD
MT (4.88" 24mm hex)
WHEEL COLOR/FINISH
Black
MOUNTED TIRES
Yes
TIRE ATTACHMENT METHOD
Glued
SERVO HORN MATERIAL
Plastic
SERVO SPLINE SIZE
15T
BATTERY MAX DIMENSIONS
180x55x53mm / 7.09x2.17x2.09"
CHASSIS MATERIAL
5mm Plate, 7075-T6 Aluminum
TRIMMED BODY
Yes
BODY-ON BATTERY ACCESS
No
BODY PIN RETAINERS
Yes
TORQUE SPLIT
50/50
MODEL PRODUCTION YEAR
2023
ARRMA Part Number
ARA5808V2T1
Vehicle Name
KRATON 4X4 8S BLX BRUSHLESS 1/5TH 4WD SPEED MONSTER TRUCK
POWER LEVEL
8S
RADIO SYSTEM
SPEKTRUM DX3 SMART DSMR & SR6200A
2.4Ghz
Yes
NUMBER OF RADIO CHANNELS
3
ESC
SPEKTRUM FIRMA 160A V2
WATERPROOF ELECTRONICS
Yes
ESC CONNECTOR TYPE
IC5
MOTOR
SPEKTRUM FIRMA 5687 1100KV
MAXIMUM MOTOR SIZE
56mm diameter, 113mm length
SERVO
SPEKTRUM S6510
SERVO GEAR MATERIAL
Metal
ARRMA Part Number
ARA5808V2T1
Vehicle Name
KRATON 4X4 8S BLX BRUSHLESS 1/5TH 4WD SPEED MONSTER TRUCK

Included

BATTERY INCLUDED
No
TOOLS INCLUDED
24mm Wheel Nut Driver, Circlip Pliers

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
50C 5000mAh
REQUIRED ITEMS
Batteries, Charger, LiPo Charging Bag
