3S BLX ALL-ROAD SPEED BASH RACER
VENDETTA 3S BLX 4X4 DETAILS
All-Road Family
1/8th SCALE SIZE TUNED FOR ALL-ROADS
HIGHLY DETAILED DESIGN
ENGINEERED ALL-ROAD ABILITY
ADVANCED TECHNOLOGY
Specifications
ARRMA Part Number
ARA4319V3T1
ARA4319V3T2
Vehicle Name
VENDETTA 4X4 3S BLX ALL-ROAD (GREEN)
VENDETTA 4X4 3S BLX ALL-ROAD (BLUE)
SCALE
1/8
1/8
MAX SPEED POSSIBLE
70+mph / 112+km/h
70+mph / 112+km/h
POWER TYPE
Brushless
Brushless
BUILD STATUS
RTR
RTR
Saleable Part #
ARA4319V3T1
ARA4319V3T2
BUILD CONFIGURATION OPTIONS
Mid Motor
Mid Motor
DRIVE TYPE
4WD
4WD
VEHICLE TYPE
Speed Bash Racer
Speed Bash Racer
SURFACE
All-Road
All-Road
LENGTH
595mm / 23.43"
595mm / 23.43"
WHEELBASE
335mm / 13.19"
335mm / 13.19"
RIDE HEIGHT
15mm / 0.59"
15mm / 0.59"
FRONT WIDTH
255mm / 10.04"
255mm / 10.04"
REAR WIDTH
256mm / 10.08"
256mm / 10.08"
HEIGHT
158mm / 6.22"
158mm / 6.22"
NUMBER OF DIFFERENTIALS
2
2
WEIGHT (NO BATTERY)
2.9kg / 6lbs 6oz
2.9kg / 6lbs 6oz
BATTERY RECOMMENDATIONS
2S or 3S Lipo (Hardcase only) within dimensions 165 x 51 x 48mm / 6.5 x 2.01 x 1.89 inches
2S or 3S Lipo (Hardcase only) within dimensions 165 x 51 x 48mm / 6.5 x 2.01 x 1.89 inches
WARRANTY LEVEL
2 Year Limited
2 Year Limited
ARRMA Part Number
ARA4319V3T1
ARA4319V3T2
Vehicle Name
VENDETTA 4X4 3S BLX ALL-ROAD (GREEN)
VENDETTA 4X4 3S BLX ALL-ROAD (BLUE)
BODY LENGTH
595mm / 23.43"
595mm / 23.43"
BODY WIDTH
265mm / 10.43"
265mm / 10.43"
BODY HEIGHT
140mm / 5.51"
140mm / 5.51"

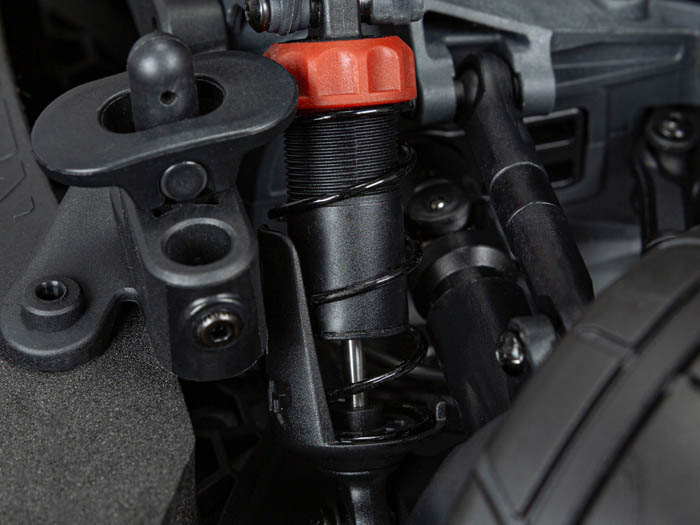

FRONT SPRING RATE
1.65N/mm
1.65N/mm
REAR SPRING RATE
1.85N/mm
1.85N/mm
CAPTURED HINGEPINS
Yes
Yes
TURNBUCKLES/FIXED LINKS
Turnbuckles
Turnbuckles
HARDWARE TYPE
Hex Head
Hex Head
LOCKING DIFFS
No
No
DIFFERENTIAL TYPE
Gear
Gear
STANDARD SHOCK OIL (Viscosity)
2000cSt
2000cSt
STANDARD DIFF OIL (Viscosity)
Rear - Grease / Front - 10kcSt
Rear - Grease / Front - 10kcSt
STANDARD SHOCK OIL (Type)
Silicone
Silicone
STANDARD DIFF OIL (Type)
Silicone Front / Gear Grease Rear
Silicone Front / Gear Grease Rear
DIFFERENTIAL CROWN GEAR SPECIFICIATION
37T 1.35m
37T 1.35m
DIFFERENTIAL PINION GEAR SPECIFICIATION
13T 1.35m
13T 1.35m
INTERNAL GEAR RATIO
2.85
2.85
INTERNAL GEAR MATERIAL
Plastic
Plastic
FITTED SPUR SIZE
50Tooth
50Tooth
FITTED SPUR MATERIAL
Plastic
Plastic
FITTED PINION GEAR SIZE
20Tooth
20Tooth
FITTED PINION MATERIAL
Metal
Metal
PINION AND SPUR TOOTH PITCH
0.8m
0.8m
STANDARD FINAL GEAR RATIO
7.125
7.125

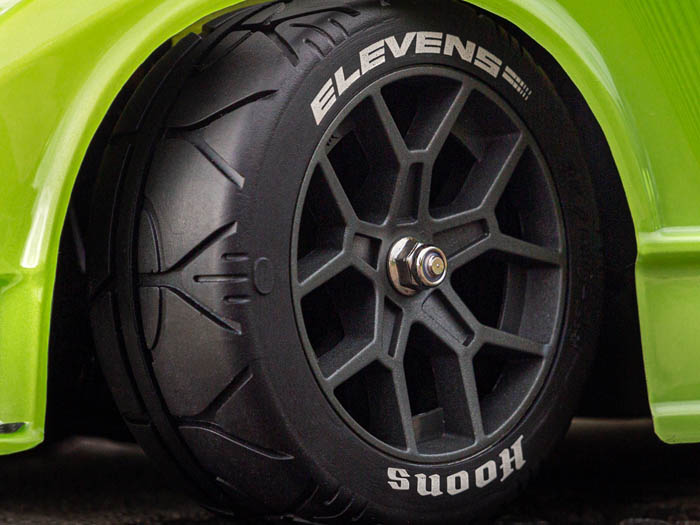

TIRES INCLUDED
dBoot ELEVENS
dBoot ELEVENS
TIRE DIAMETER
85mm / 3.35"
85mm / 3.35"
TIRE INSERT TYPE
None
None
DRIVESHAFT TYPE
UJ Slider
UJ Slider
WHEEL BEAD DIAMETER
61/68mm / 2.4/2.68"
61/68mm / 2.4/2.68"
WHEEL HEX SIZE
14mm
14mm
WHEEL COLOR/FINISH
Gun Metal
Gun Metal
MOUNTED TIRES
Yes
Yes
TIRE ATTACHMENT METHOD
Glued
Glued
SERVO HORN MATERIAL
Plastic
Plastic
SERVO SPLINE SIZE
23T
23T
BATTERY MAX DIMENSIONS
165x51x48mm / 6.5x2.01x1.89"
165x51x48mm / 6.5x2.01x1.89"
CHASSIS MATERIAL
Moulded Composite
Moulded Composite
TRIMMED BODY
Yes
Yes
BODY-ON BATTERY ACCESS
No
No
BODY PIN RETAINERS
Yes
Yes
TORQUE SPLIT
50/50
50/50
MODEL PRODUCTION YEAR
2021
2021
ARRMA Part Number
ARA4319V3T1
ARA4319V3T2
Vehicle Name
VENDETTA 4X4 3S BLX ALL-ROAD (GREEN)
VENDETTA 4X4 3S BLX ALL-ROAD (BLUE)
POWER LEVEL
3S
3S

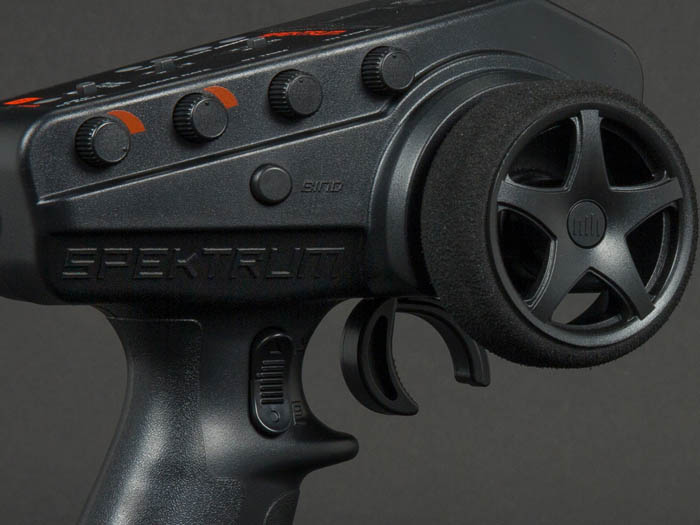

RADIO SYSTEM
Spektrum DX3 Tx / SR6200 Rx
Spektrum DX3 Tx / SR6200 Rx
2.4Ghz
Yes
Yes
NUMBER OF RADIO CHANNELS
3
3

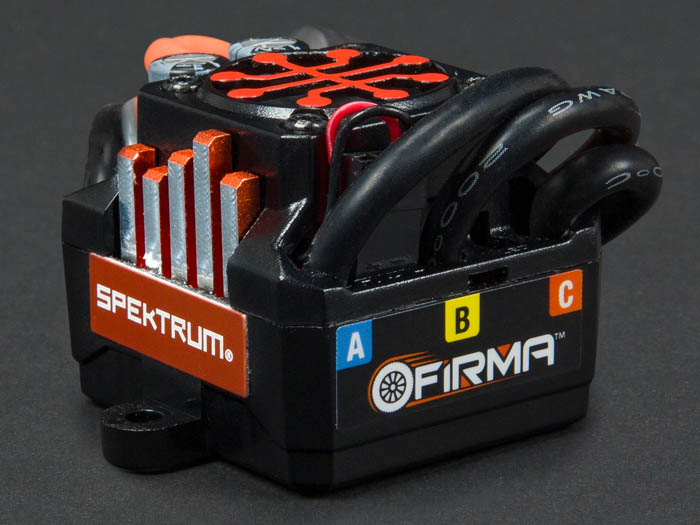

ESC
Spektrum FIRMA 100A SMART
Spektrum FIRMA 100A SMART
WATERPROOF ELECTRONICS
Yes
Yes
ESC CONNECTOR TYPE
IC5
IC5
MOTOR
SPEKTRUM FIRMA BRUSHLESS 3900Kv 3660
SPEKTRUM FIRMA BRUSHLESS 3900Kv 3660

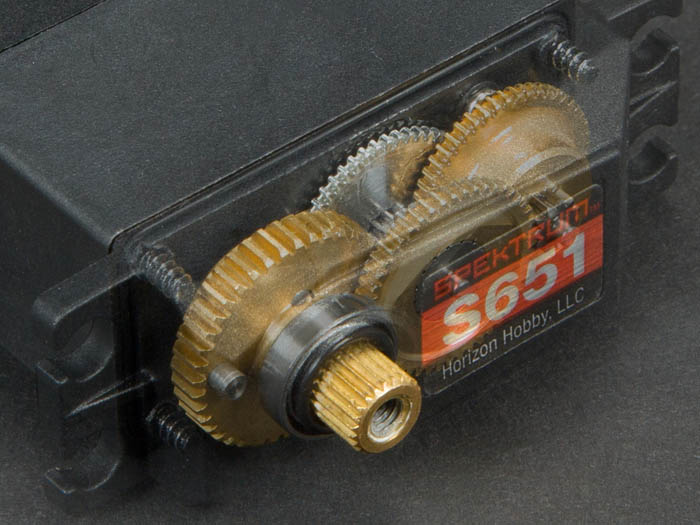

SERVO
SPEKTRUM S651
SPEKTRUM S651
SERVO GEAR MATERIAL
Metal
Metal
MAX SERVO TORQUE @6v
7.27kg-cm / 101oz-in
7.27kg-cm / 101oz-in
MAX SERVO SPEED @6v
0.14sec
0.14sec
ARRMA Part Number
ARA4319V3T1
ARA4319V3T2
Vehicle Name
VENDETTA 4X4 3S BLX ALL-ROAD (GREEN)
VENDETTA 4X4 3S BLX ALL-ROAD (BLUE)
Included
OPTION GEARING
26
26
BATTERY CONNECTOR SUPPLIED
IC5
IC5
TOOLS INCLUDED
Multi Tool and Hex Wrenches (2.0, 2.5mm)
Multi Tool and Hex Wrenches (2.0, 2.5mm)
Required
RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
50C 5000mAh
50C 5000mAh
REQUIRED ITEMS
6 to 8-Cell NiMh, 2S LiPo or 3S Hardcase LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
6 to 8-Cell NiMh, 2S LiPo or 3S Hardcase LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
Resources

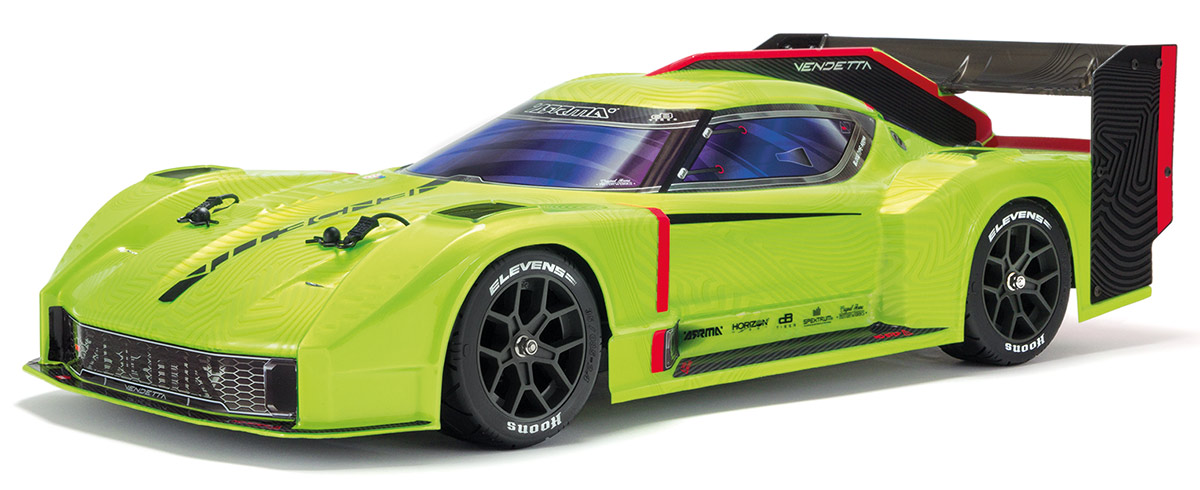

ARA4319V3T1
VENDETTA 4X4 3S BLX ALL-ROAD (GREEN)

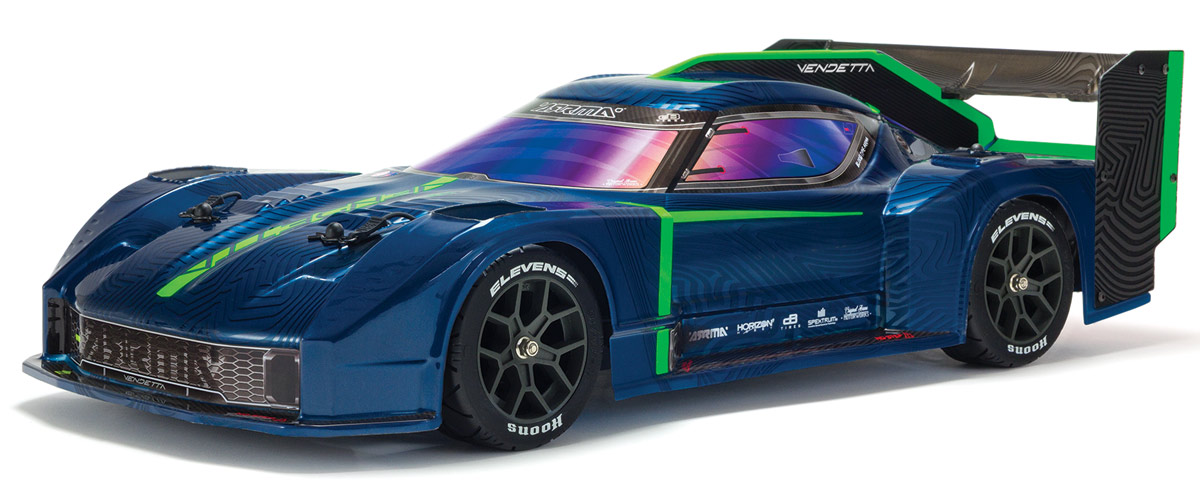

ARA4319V3T2
