Fun, Tough & Amazing Value With No Compromises

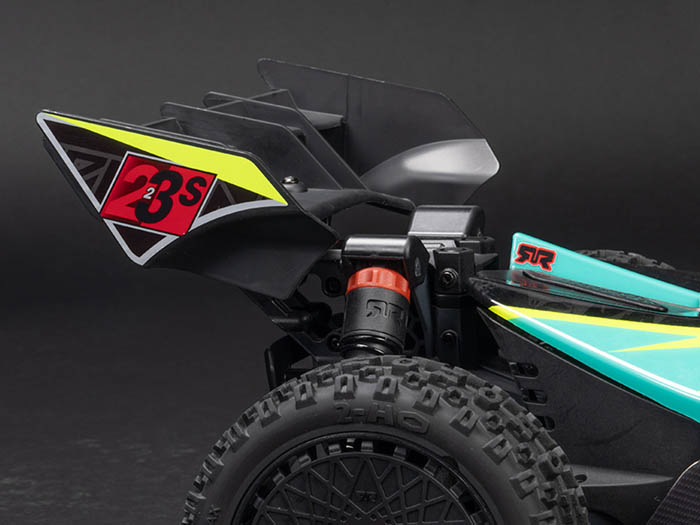

2S or 3S; Have It Your Way

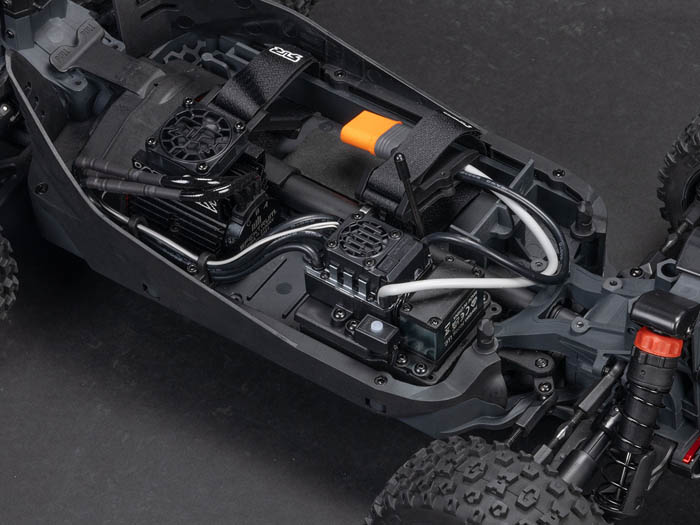

Powerful Spektrum Electronics

Great Features

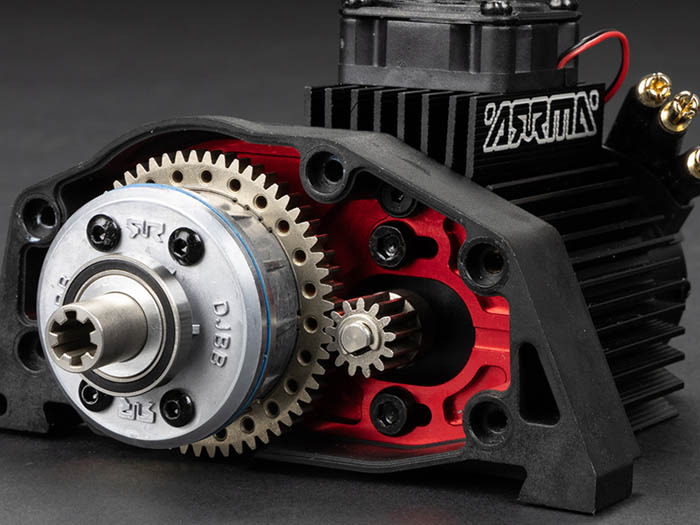

Under the hood

Check It Out

Specifications

ARRMA Part Number
ARA4306V4T1
ARA4306V4T2
Vehicle Name

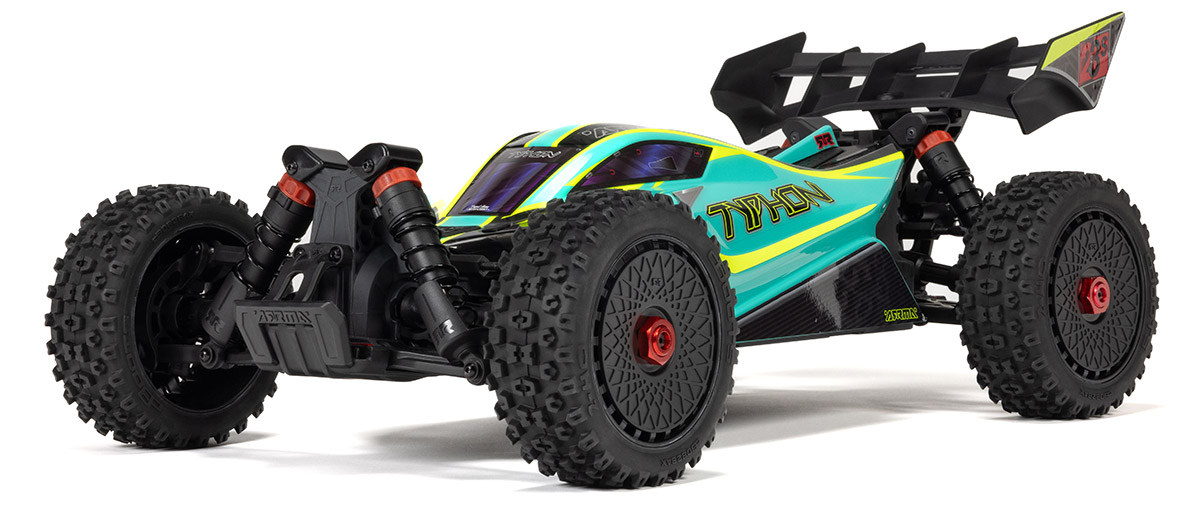

1/8 TYPHON 223S BLX Brushless 4X4 Buggy RTR with DSC, Green

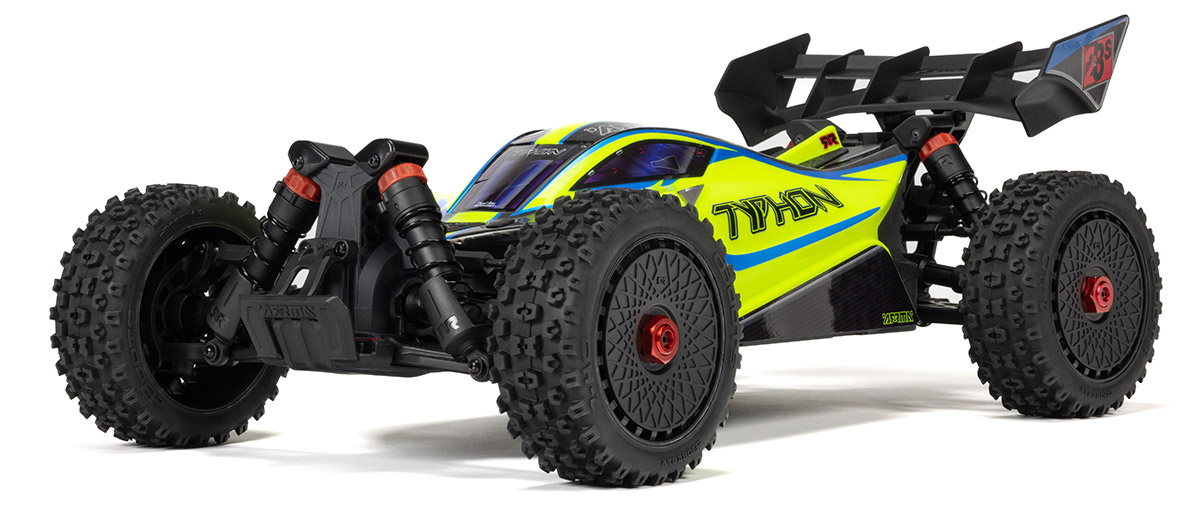

1/8 TYPHON 223S BLX Brushless 4X4 Buggy RTR with DSC, Yellow
SCALE
1/8
1/8

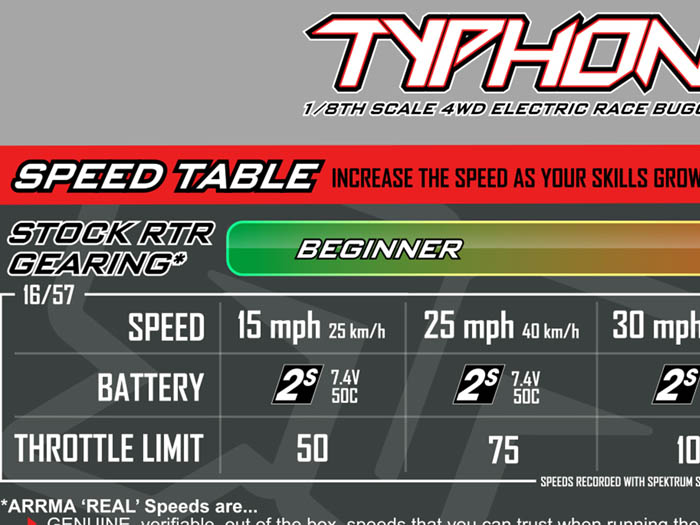

MAX SPEED POSSIBLE
50+mph / 80+km/h
50+mph / 80+km/h
POWER TYPE
Brushless
Brushless
BUILD STATUS
RTR
RTR
Saleable Part #
ARA4306V4T1
ARA4306V4T2
BUILD CONFIGURATION OPTIONS
Mid Motor
Mid Motor
DRIVE TYPE
4WD
4WD
VEHICLE TYPE
Buggy
Buggy
SURFACE
Off-road
Off-road
LENGTH
511mm / 20.12"
511mm / 20.12"
WHEELBASE
328mm / 12.91"
328mm / 12.91"
RIDE HEIGHT
42mm / 1.65"
42mm / 1.65"
FRONT WIDTH
306mm / 12.05"
306mm / 12.05"
REAR WIDTH
306mm / 12.05"
306mm / 12.05"
HEIGHT
195mm / 7.68"
195mm / 7.68"
NUMBER OF DIFFERENTIALS
3
3
WEIGHT (NO BATTERY)
3.01kg / 6lbs 10oz
3.01kg / 6lbs 10oz
BATTERY RECOMMENDATIONS
2S or 3S Lipo (Hardcase only) within dimensions 165 x 51 x 48mm / 6.5 x 2.01 x 1.89 inches
2S or 3S Lipo (Hardcase only) within dimensions 165 x 51 x 48mm / 6.5 x 2.01 x 1.89 inches
WARRANTY LEVEL
2 Year Limited
2 Year Limited
ARRMA Part Number
ARA4306V4T1
ARA4306V4T2
Vehicle Name
1/8 TYPHON 223S BLX Brushless 4X4 Buggy RTR with DSC, Green
1/8 TYPHON 223S BLX Brushless 4X4 Buggy RTR with DSC, Yellow
BODY LENGTH
321mm / 12.64"
321mm / 12.64"
BODY WIDTH
165mm / 6.5"
165mm / 6.5"
BODY HEIGHT
100mm / 3.94"
100mm / 3.94"
FRONT SPRING RATE
1N/mm
1N/mm
REAR SPRING RATE
0.84N/mm
0.84N/mm
CAPTURED HINGEPINS
Yes
Yes
TURNBUCKLES/FIXED LINKS
Turnbuckles
Turnbuckles
HARDWARE TYPE
Hex Head
Hex Head
LOCKING DIFFS
No
No

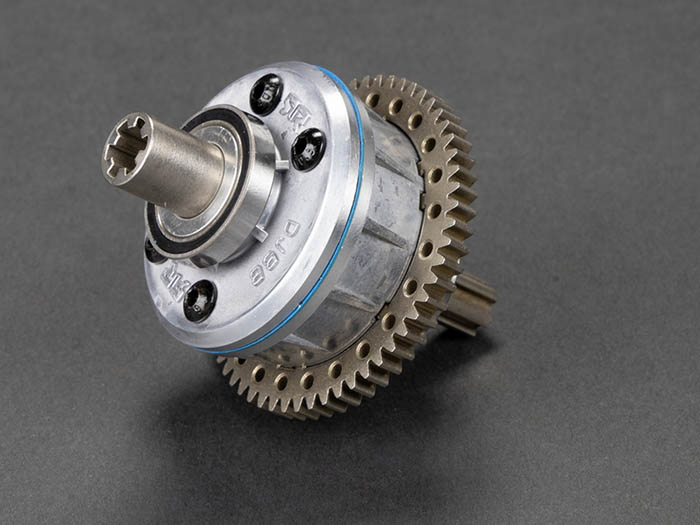

DIFFERENTIAL TYPE
Gear
Gear
STANDARD SHOCK OIL (Viscosity)
500cSt
500cSt
STANDARD DIFF OIL (Viscosity)
10,000cSt
10,000cSt
STANDARD SHOCK OIL (Type)
Silicone
Silicone
STANDARD DIFF OIL (Type)
Silicone
Silicone
DIFFERENTIAL CROWN GEAR SPECIFICIATION
37T 1.35m
37T 1.35m
DIFFERENTIAL PINION GEAR SPECIFICIATION
13T 1.35m
13T 1.35m
INTERNAL GEAR RATIO
2.85
2.85
INTERNAL GEAR MATERIAL
Plastic
Plastic
FITTED SPUR SIZE
57Tooth
57Tooth
FITTED SPUR MATERIAL
Metal
Metal
FITTED PINION GEAR SIZE
16Tooth
16Tooth
FITTED PINION MATERIAL
Metal
Metal
PINION AND SPUR TOOTH PITCH
0.8m
0.8m
STANDARD FINAL GEAR RATIO
10.15
10.15
TIRE STANDARD
1/8th Buggy (17mm Hex)
1/8th Buggy (17mm Hex)
TIRES INCLUDED
dBoots 2HO
dBoots 2HO
TIRE DIAMETER
117mm / 4.61"
117mm / 4.61"
TIRE INSERT TYPE
Medium
Medium
DRIVESHAFT TYPE
UJ Slider
UJ Slider
WHEEL BEAD DIAMETER
83mm / 3.27"
83mm / 3.27"
WHEEL HEX SIZE
17mm
17mm
WHEEL STANDARD
1/8th Buggy (17mm Hex)
1/8th Buggy (17mm Hex)
WHEEL COLOR/FINISH
Black
Black
MOUNTED TIRES
Yes
Yes
TIRE ATTACHMENT METHOD
Glued
Glued
SERVO HORN MATERIAL
Plastic
Plastic
SERVO SPLINE SIZE
25T
25T
BATTERY MAX DIMENSIONS
165x51x48mm / 6.5x2.01x1.89"
165x51x48mm / 6.5x2.01x1.89"
CHASSIS MATERIAL
Moulded Composite
Moulded Composite
TRIMMED BODY
Yes
Yes
BODY-ON BATTERY ACCESS
No
No
BODY PIN RETAINERS
Clipless Mounting System
Clipless Mounting System
TORQUE SPLIT
50/50
50/50
MODEL PRODUCTION YEAR
2024
2024
ARRMA Part Number
ARA4306V4T1
ARA4306V4T2
Vehicle Name
1/8 TYPHON 223S BLX Brushless 4X4 Buggy RTR with DSC, Green
1/8 TYPHON 223S BLX Brushless 4X4 Buggy RTR with DSC, Yellow
POWER LEVEL
3S
3S
RADIO SYSTEM
Spektrum SLT3 Tx/Spektrum 8010RX Brushless 2in1 Unit with Gyro
Spektrum SLT3 Tx/Spektrum 8010RX Brushless 2in1 Unit with Gyro
2.4Ghz
Yes
Yes
NUMBER OF RADIO CHANNELS
3
3
ESC
Spektrum 8010RX Brushless 2in1 Unit with Gyro
Spektrum 8010RX Brushless 2in1 Unit with Gyro
WATERPROOF ELECTRONICS
Yes
Yes
ESC CONNECTOR TYPE
IC5
IC5
MOTOR
SPEKTRUM FIRMA BRUSHLESS 3100Kv 3660
Spektrum 8010RX Brushless 2in1 Unit with Gyro
MAXIMUM MOTOR SIZE
3660
3660
SERVO
SPEKTRUM S662
SPEKTRUM S662
SERVO GEAR MATERIAL
Metal
Metal
MAX SERVO TORQUE @6v
12KGkg-cm / 167oz-in
12KGkg-cm / 167oz-in
MAX SERVO SPEED @6v
0.14sec
0.14sec
ARRMA Part Number
ARA4306V4T1
ARA4306V4T2
Vehicle Name
1/8 TYPHON 223S BLX Brushless 4X4 Buggy RTR with DSC, Green
1/8 TYPHON 223S BLX Brushless 4X4 Buggy RTR with DSC, Yellow

Included

BATTERY INCLUDED
No
No
BATTERY CONNECTOR SUPPLIED
IC5
IC5
TOOLS INCLUDED
Multi Tool and Hex Wrenches (2.0, 2.5mm)
Multi Tool and Hex Wrenches (2.0, 2.5mm)

Required

REQUIRED ITEMS
6 to 8-Cell NiMh, 2S LiPo or 3S Hardcase LiPo Battery, LiPo Charging Bag, Charger
6 to 8-Cell NiMh, 2S LiPo or 3S Hardcase LiPo Battery, LiPo Charging Bag, Charger
