Fun, Tough & Amazing Value With No Compromises

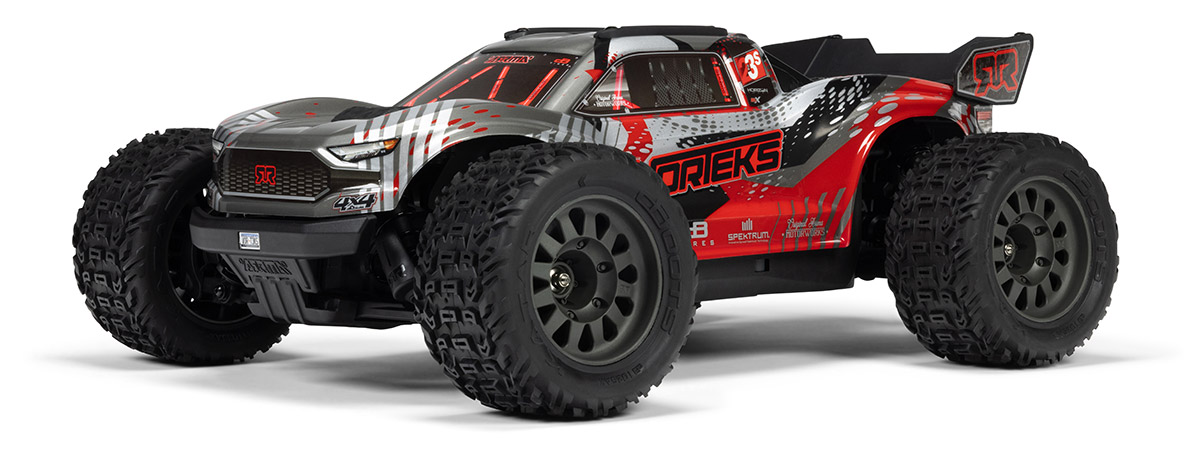

ARA4305V4T1 VORTEKS 223S BLX (Red/Silver)

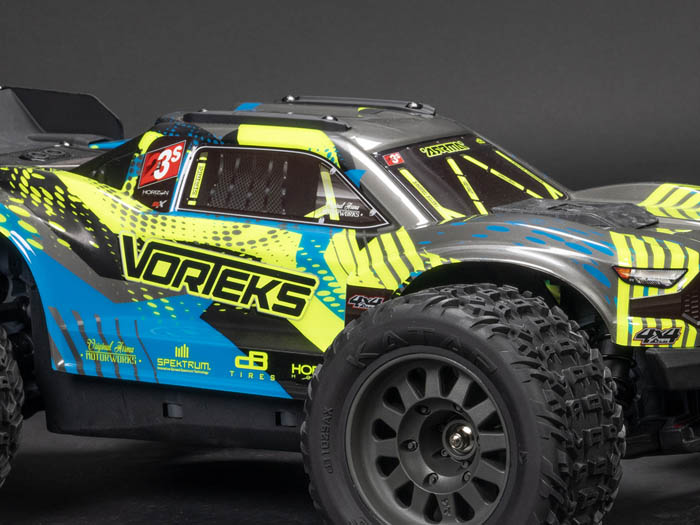

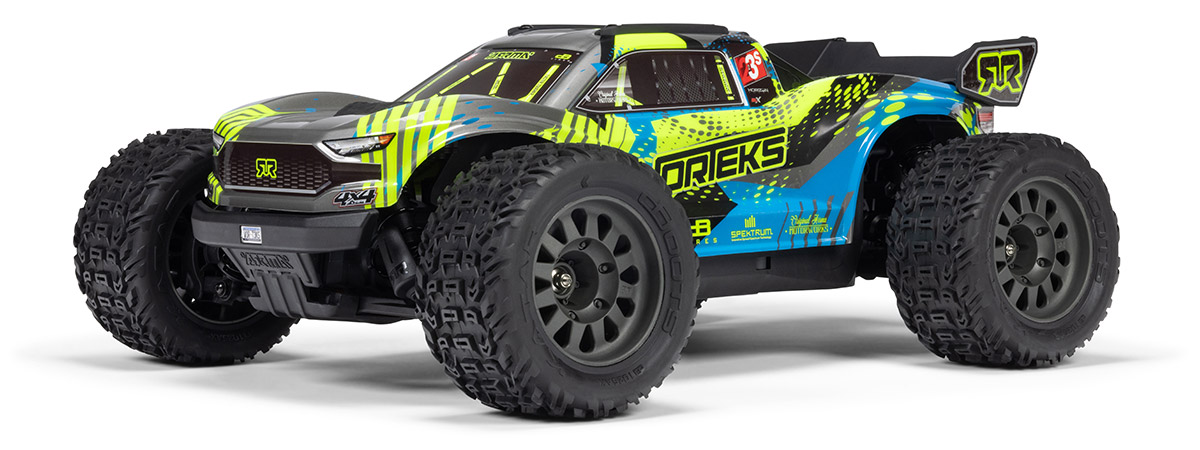

ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)

ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)
ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)
ARA4305V4T1 VORTEKS 223S BLX (Red/Silver)
ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)
ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)
ARA4305V4T1 VORTEKS 223S BLX (Red/Silver)
ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)

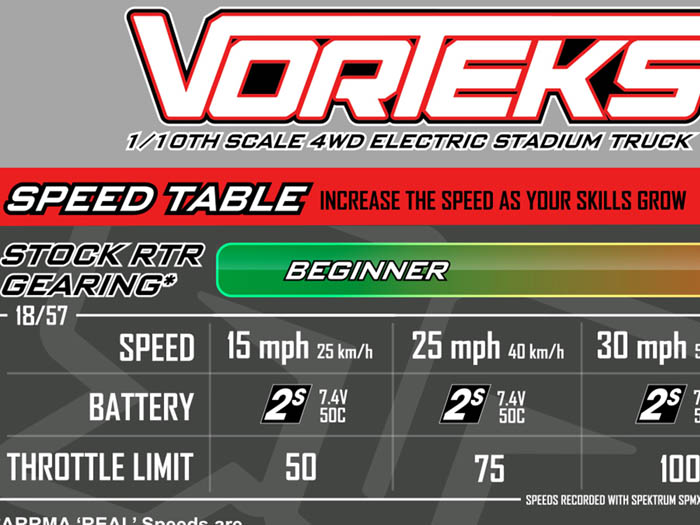

2S or 3S; Have It Your Way

2

2

3S

discover the ultimate value with ARRMA 223S; run 2S batteries for speeds to match or beat the competition & switch to 3S for wild, extreme performance - all with no extra parts

ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)
FOUR MODES
High - great for beginners, maximum stability

Medium - ideal for lower grip surfaces

Low - perfect for high grip surfaces

Off - maximum fun for skilled drivers; you are on your own
one easy adjustment on the transmitter

SPEKTRUM DSC SENSES THE RATE OF CHANGE TO THE
YAW ANGLE AND APPLIES STEERING CORRECTION

ARA4305V4T1 VORTEKS 223S BLX (Red/Silver)
FEEL THE
DIFF-ERENCE

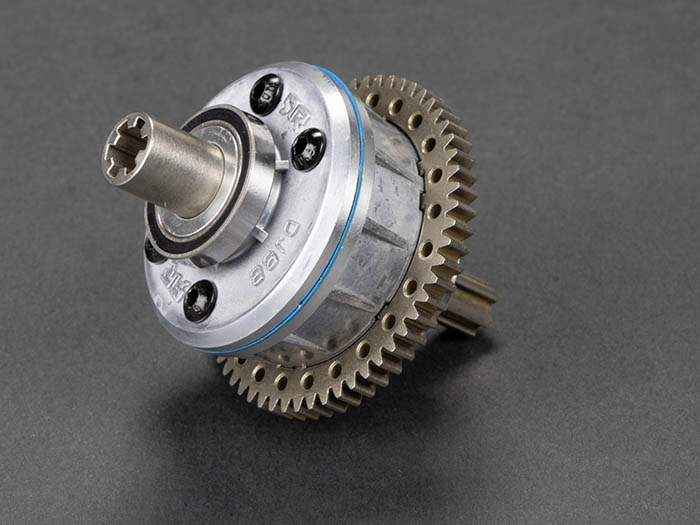

oil-filled center differential for
incredible traction & handling
PRECISION MOLDED

rugged composite chassis
for go-anywhere toughness

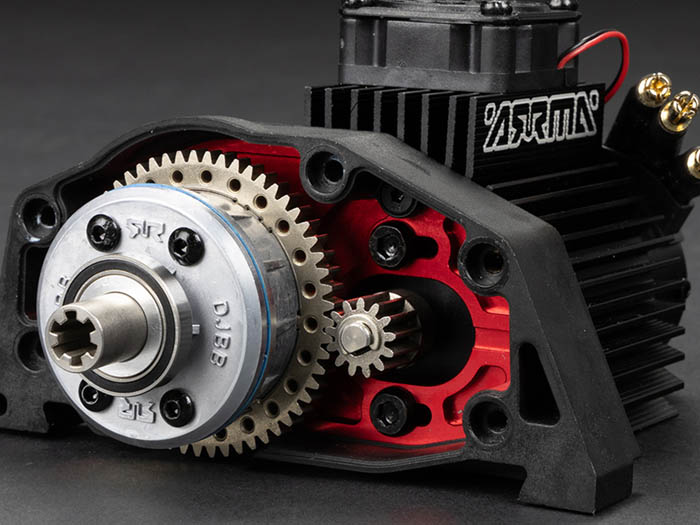

MODULAR DESIGN

easy to remove power module
accommodates the center diff

ALUMINUM
MOTOR PLATE

improves heat dissipation & keeps
the gear mesh straight and true
LOW CG DESIGN

for agile, accurate handling that
allows you to carve those turns

ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)
CLIPLESS

body release mechanism for
easy, secure fitting and clean
uninterrupted body lines

ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)

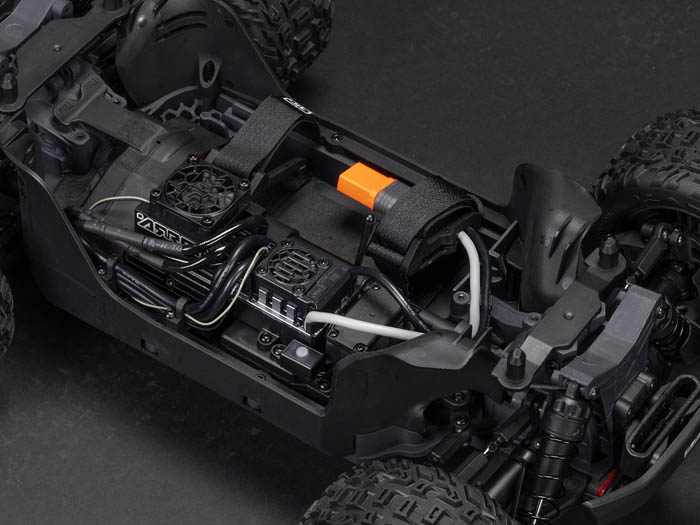

Powerful Spektrum Electronics

SPEKTRUM 2in1
BRUSHLESS ESC/RECEIVER

for smooth, proportional control &
waterproof, go-anywhere performance
POWERFUL 3100KV MOTOR

to tackle any surface and handle
2S or 3S power with ease
THE PERFECT COMPLEMENT

power your VORTEKS 223S BLX with genuine SPEKTRUM accessories

SPMXC2090 S100 1x100W
USB-C Smart Charger

SPMXC2050 S155 1x55W
AC Smart Charger

SPMX-1027 65W USB-C
GaN Power Supply

SPMX52S50H5 7.4V 5000mAh 2S 50C
Smart G2 Hardcase LiPo Battery: IC5

SPMX53S50H5 11.1V 5000mAh 3S 50C
Smart G2 Hardcase LiPo Battery: IC5
SPEKTRUM

SLT3 TRANSMITTER

50 & 75 THROTTLE LIMITER

easily match speed to your skills

MAXIMUM COMFORT

ergonomic handle and foam wheel grip

EASY DRIVING

adjustable steering rate

SIMPLE

DSC mode adjustment
SPEKTRUM S662 SERVO
17KG / 236oz-in torque

0.15s / 60 degree speed

Alloy case center provides improved heat dissipation

Steel gears with 25T output spline
CLAMPING HEATSINK

draws heat from the motor for
extended bashing sessions

Great Features

THREE VIBRANT BODY COLOR OPTIONS

sets the VORTEKS 223S BLX apart

ARA4305V4T1 VORTEKS 223S BLX (Red/Silver)

ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)

ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)
METAL INTERNAL DIFF GEARS

proven tough in the ARRMA 4S range, so we
use them in the VORTEKS 223S BLX too
INTEGRATED
SERVO SAVER

with 25T spline fitment
ALL METAL DIFF PINION GEARS

straight from the ARRMA 4S range for extreme durability
EASY GEAR MESH

grommeted windows allow
easy access to motor screws
HEAVY DUTY

composite slider driveshafts
transfer power to the wheels
MOLDED
COMPOSITE

rear wing with easily
replaceable double
headed skid screws

ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)

Under the hood

dBoots
KATAR

vented tires for
increased durability
and massive traction
WHEELIE BAR

for insane stunt action

OIL-FILLED

coil-over shock absorbers
soak up the terrain
RUBBER
SHIELDED
BEARINGS

reduced maintenance
smooth, efficient running
DETAILED

body design with awesome looks

ARA4305V4T1 VORTEKS 223S BLX (Red/Silver)
TOUGH COMPOSITE

molded bumpers help to shrug off the hits

ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)
CHASSIS DIRT DRAIN

prevents dirt build up in harsh conditions
SLEEK

clipless body release
system preserves
the clean lines of the
VORTEKS 223S BLX

ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)

Check It Out

ARA4305V4T1 VORTEKS 223S BLX (Red/Silver)
ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)
ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)
ARA4305V4T1 VORTEKS 223S BLX (Red/Silver)
ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)
ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)
ARA4305V4T1 VORTEKS 223S BLX (Red/Silver)
ARA4305V4T3 VORTEKS 223S BLX (Purple/Pink)
ARA4305V4T2 VORTEKS 223S BLX (Teal/Yellow)

Specifications

Overview Detailed Specs Electronics Included/Required

ARRMA Part Number

ARA4305V4T1

ARA4305V4T2

ARA4305V4T3

Vehicle Name

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Red

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Teal

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Purple

SCALE

1/10

MAX SPEED POSSIBLE

50+mph / 80+km/h

POWER TYPE

Brushless

BUILD STATUS

RTR

Saleable Part #

ARA4305V4T1

ARA4305V4T2

ARA4305V4T3

BUILD CONFIGURATION OPTIONS

Mid Motor

DRIVE TYPE

4WD

VEHICLE TYPE

Stadium Truck

SURFACE

Off-road

LENGTH

470mm / 18.5"

WHEELBASE

284mm / 11.18"

RIDE HEIGHT

40mm / 1.57"

FRONT WIDTH

334mm / 13.15"

REAR WIDTH

334mm / 13.15"

HEIGHT

169mm / 6.65"

NUMBER OF DIFFERENTIALS

WEIGHT (NO BATTERY)

3.43kg / 7lbs 9oz

BATTERY RECOMMENDATIONS

2S or 3S Lipo (Hardcase only) within dimensions 165 x 51 x 48mm / 6.5 x 2.01 x 1.89 inches

WARRANTY LEVEL

2 Year Limited

ARRMA Part Number

ARA4305V4T1

ARA4305V4T2

ARA4305V4T3

Vehicle Name

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Red

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Teal

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Purple

BODY LENGTH

450mm / 17.72"

BODY WIDTH

180mm / 7.09"

BODY HEIGHT

109mm / 4.29"

FRONT SPRING RATE

1.2N/mm

REAR SPRING RATE

1.06N/mm

CAPTURED HINGEPINS

Yes

TURNBUCKLES/FIXED LINKS

Turnbuckles

HARDWARE TYPE

Hex Head

LOCKING DIFFS

DIFFERENTIAL TYPE

Gear

STANDARD SHOCK OIL (Viscosity)

F: 700 R:500cSt

STANDARD DIFF OIL (Viscosity)

10,000cSt

STANDARD SHOCK OIL (Type)

Silicone

STANDARD DIFF OIL (Type)

Silicone

DIFFERENTIAL CROWN GEAR SPECIFICIATION

37T 1.35m

DIFFERENTIAL PINION GEAR SPECIFICIATION

13T 1.35m

INTERNAL GEAR RATIO

2.85

INTERNAL GEAR MATERIAL

Plastic

FITTED SPUR SIZE

57Tooth

FITTED SPUR MATERIAL

Metal

FITTED PINION GEAR SIZE

18Tooth

FITTED PINION MATERIAL

Metal

EXTRA SPEED PINION INCLUDED

PINION AND SPUR TOOTH PITCH

0.8m

STANDARD FINAL GEAR RATIO

9.025

TIRE STANDARD

MT (2.8")

TIRES INCLUDED

dBoots Katar

TIRE DIAMETER

115mm / 4.53"

TIRE INSERT TYPE

Medium

DRIVESHAFT TYPE

UJ Slider

WHEEL BEAD DIAMETER

72mm / 2.83"

WHEEL HEX SIZE

14mm

WHEEL STANDARD

MT (2.8" 14mm hex)

WHEEL COLOR/FINISH

Gunmetal

MOUNTED TIRES

Yes

TIRE ATTACHMENT METHOD

Glued

SERVO HORN MATERIAL

Plastic

SERVO SPLINE SIZE

25T

BATTERY MAX DIMENSIONS

165x51x48mm / 6.5x2.01x1.89"

CHASSIS MATERIAL

Moulded Composite

TRIMMED BODY

Yes

BODY-ON BATTERY ACCESS

BODY PIN RETAINERS

Clipless Mounting System

TORQUE SPLIT

50/50

MODEL PRODUCTION YEAR

2024

ARRMA Part Number

ARA4305V4T1

ARA4305V4T2

ARA4305V4T3

Vehicle Name

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Red

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Teal

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Purple

POWER LEVEL

RADIO SYSTEM

Spektrum SLT3 Tx/Spektrum 8010RX Brushless 2in1 Unit with Gyro

2.4Ghz

Yes

NUMBER OF RADIO CHANNELS

ESC

Spektrum 8010RX Brushless 2in1 Unit with Gyro

WATERPROOF ELECTRONICS

Yes

ESC CONNECTOR TYPE

IC5

MOTOR

Spektrum 8010RX Brushless 2in1 Unit with Gyro

MAXIMUM MOTOR SIZE

3660

SERVO

SPEKTRUM S662

SERVO GEAR MATERIAL

Metal

MAX SERVO TORQUE @6v

12KGkg-cm / 167oz-in

MAX SERVO SPEED @6v

0.14sec

ARRMA Part Number

ARA4305V4T1

ARA4305V4T2

ARA4305V4T3

Vehicle Name

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Red

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Teal

1/10 VORTEKS 223S BLX Brushless 4X4 Stadium Truck RTR with DSC, Purple

Included

BATTERY INCLUDED

BATTERY CONNECTOR SUPPLIED

IC5

TOOLS INCLUDED

Multi Tool and Hex Wrenches (2.0, 2.5mm)

Required

REQUIRED ITEMS

6 to 8-Cell NiMh, 2S LiPo or 3S Hardcase LiPo Battery, LiPo Charging Bag, Charger
