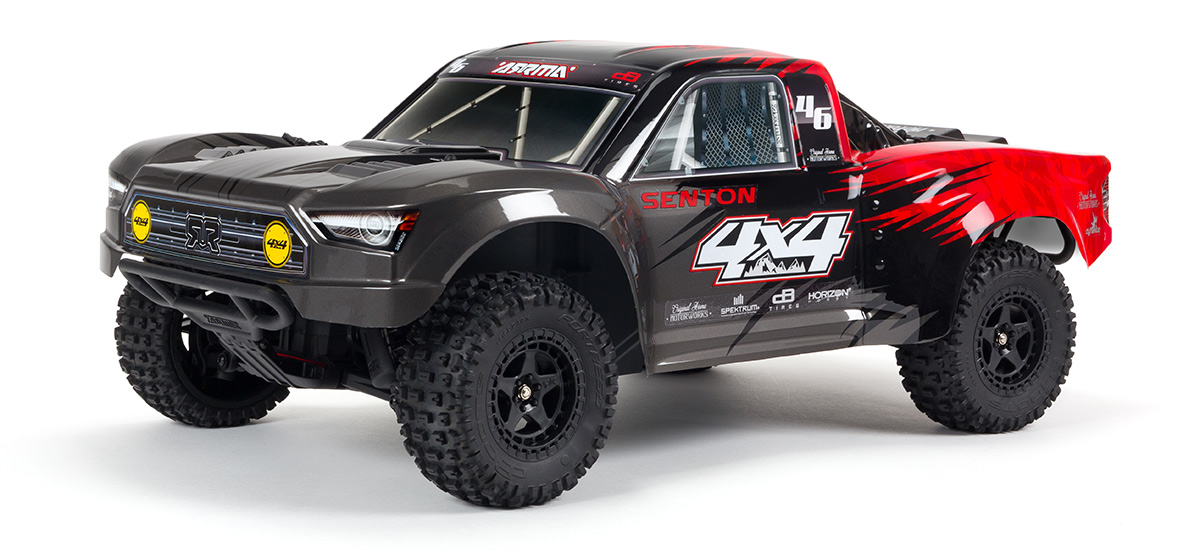

SENTON MEGA 550 4x4
SENTON MEGA 550 4x4 FEATURES
SENTON MEGA 550 4x4 UNDER THE HOOD
SENTON MEGA 550 4x4 POWER & TECHNOLOGY
Specifications
ARRMA Part Number
ARA4203V3T1
Vehicle Name
SENTON 4X4 550 MEGA BRUSHED 1/10TH 4WD SHORT COURSE (RED)
SCALE
1/10
MAX SPEED POSSIBLE
30mph / 48km/h
POWER TYPE
Brushed
BUILD STATUS
RTR
Saleable Part #
ARA4203V3T1
BUILD CONFIGURATION OPTIONS
Mid Motor
DRIVE TYPE
4WD
VEHICLE TYPE
Short Course
SURFACE
Off-road
LENGTH
558mm / 21.97"
WHEELBASE
327mm / 12.87"
RIDE HEIGHT
32mm / 1.26"
FRONT WIDTH
298mm / 11.73"
REAR WIDTH
298mm / 11.73"
HEIGHT
210mm / 8.27"
NUMBER OF DIFFERENTIALS
2
WEIGHT (INC. SUPPLIED BATTERY)
2.95kg / 6lbs 8oz
BATTERY RECOMMENDATIONS
8.4v (7 Cell) NiMh Hump Pack or Hardcase 7.4V (2S) Lipo within max dimensions 165 x 51 x 48mm / 6.5 x 2.01 x 1.89 inches
WARRANTY LEVEL
2 Year Limited
ARRMA Part Number
ARA4203V3T1
Vehicle Name
SENTON 4X4 550 MEGA BRUSHED 1/10TH 4WD SHORT COURSE (RED)
BODY LENGTH
541mm / 21.3"
BODY WIDTH
305mm / 12.01"
BODY HEIGHT
155mm / 6.1"
FRONT SPRING RATE
0.80N/mm
REAR SPRING RATE
0.61N/mm
CAPTURED HINGEPINS
Yes
TURNBUCKLES/FIXED LINKS
Fixed Links
HARDWARE TYPE
Hex Head
LOCKING DIFFS
No
DIFFERENTIAL TYPE
Gear
STANDARD SHOCK OIL (Viscosity)
500cSt
STANDARD DIFF OIL (Viscosity)
10,000cSt
STANDARD SHOCK OIL (Type)
Silicone
STANDARD DIFF OIL (Type)
Silicone

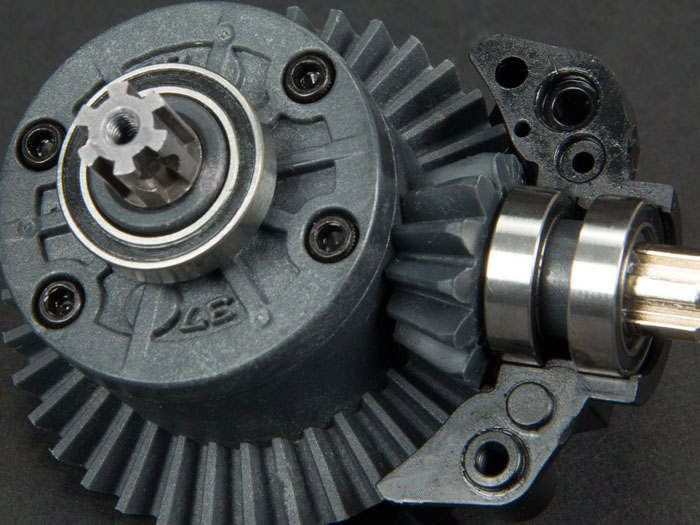

DIFFERENTIAL CROWN GEAR SPECIFICIATION
37T 1.35m
DIFFERENTIAL PINION GEAR SPECIFICIATION
13T 1.35m
INTERNAL GEAR RATIO
2.85
INTERNAL GEAR MATERIAL
Plastic

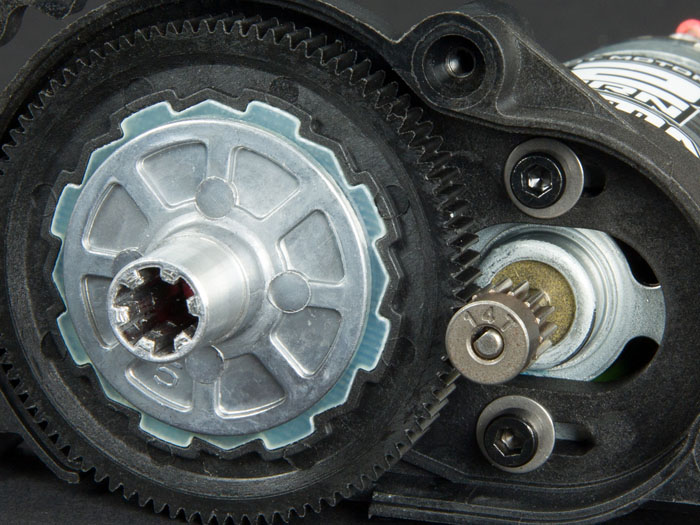

FITTED SPUR SIZE
91Tooth
FITTED SPUR MATERIAL
Plastic
FITTED PINION GEAR SIZE
17Tooth
FITTED PINION MATERIAL
Metal
EXTRA SPEED PINION INCLUDED
No
PINION AND SPUR TOOTH PITCH
48dp
STANDARD FINAL GEAR RATIO
15.26
TIRE STANDARD
SC (2.2"/3")

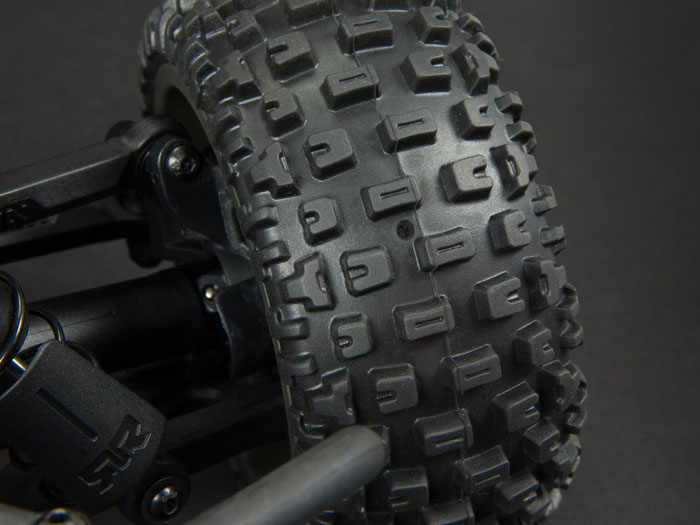

TIRES INCLUDED
dBoots Fortress SC
TIRE DIAMETER
110mm / 4.33"
TIRE INSERT TYPE
Medium
DRIVESHAFT TYPE
UJ Slider
WHEEL BEAD DIAMETER
56/76mm / 2.2/2.99"
WHEEL HEX SIZE
14mm
WHEEL STANDARD
SC (2.2"/3")
WHEEL COLOR/FINISH
Black
MOUNTED TIRES
Yes
TIRE ATTACHMENT METHOD
Glued
SERVO HORN MATERIAL
Plastic
SERVO SPLINE SIZE
23T
BATTERY MAX DIMENSIONS
165x51x48mm / 6.5x2.01x1.89"

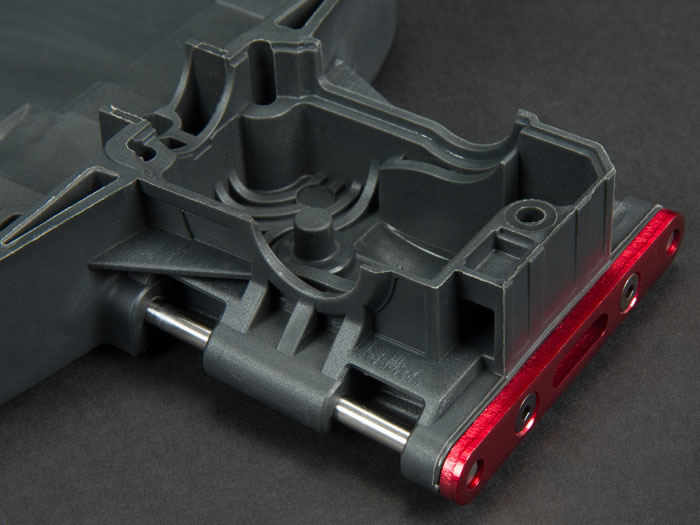

CHASSIS MATERIAL
Moulded Composite
TRIMMED BODY
Yes
BODY-ON BATTERY ACCESS
No
BODY PIN RETAINERS
Yes
TORQUE SPLIT
50/50
MODEL PRODUCTION YEAR
2020
ARRMA Part Number
ARA4203V3T1
Vehicle Name
SENTON 4X4 550 MEGA BRUSHED 1/10TH 4WD SHORT COURSE (RED)
POWER LEVEL
MEGA

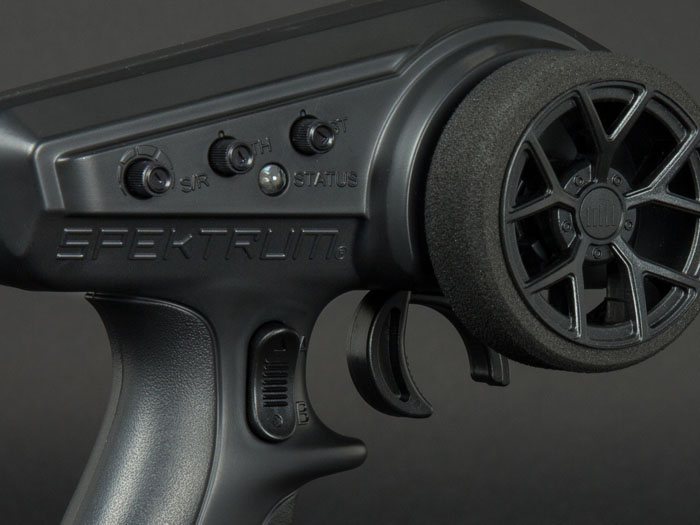

RADIO SYSTEM
SPEKTRUM SLT3
2.4Ghz
Yes
NUMBER OF RADIO CHANNELS
3
ESC
ARRMA MEGA WATERPROOF
WATERPROOF ELECTRONICS
Yes
ESC CONNECTOR TYPE
IC3
MOTOR
MEGA 550 12T BRUSHED MOTOR
MAXIMUM MOTOR SIZE
550

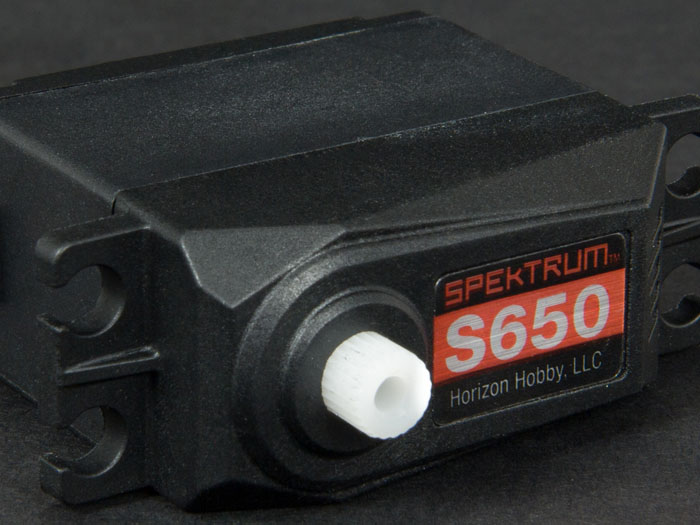

SERVO
SPEKTRUM S650
SERVO GEAR MATERIAL
Plastic
MAX SERVO TORQUE @6v
6kg-cm / 84oz-in
MAX SERVO SPEED @6v
0.12sec
ARRMA Part Number
ARA4203V3T1
Vehicle Name
SENTON 4X4 550 MEGA BRUSHED 1/10TH 4WD SHORT COURSE (RED)
Included
BATTERY INCLUDED
DYNAMITE 8.4V 7-Cell 3300mAh Speedpack2 Hump Pack
CHARGER TYPE SUPPLIED
0.7A ADC-N7 Multi-Region NiMh Charger
BATTERY CONNECTOR SUPPLIED
IC3
TOOLS INCLUDED
Multi Tool and Hex Wrenches (1.5, 2.0, 2.5mm)
Required
RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
25C 4000mAh
REQUIRED ITEMS
4 x 'AA' Batteries
