Hell Yeah Brother!

Officially Licensed Action

Powerful Spektrum Electronics

Born Loud, Built Fast

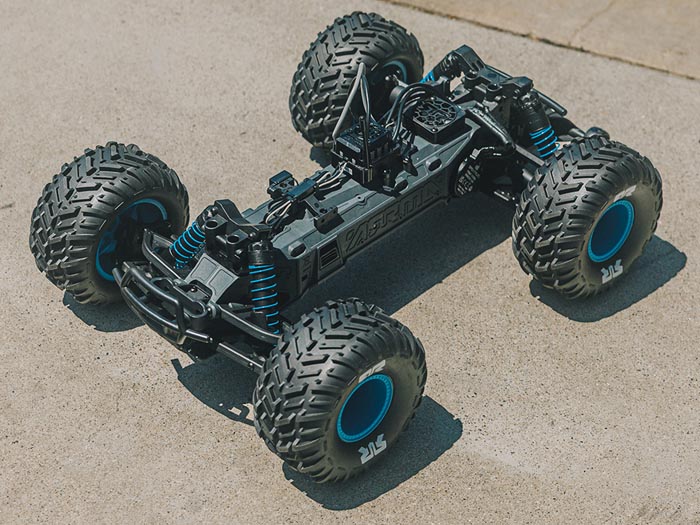

Under The Hood

Star Spangled Sends!

Specifications

ARRMA Part Number
ARA3530SFFT1
Vehicle Name
1/10 FREEDOM FLYER 223S 2WD RTR Brushless Monster Truck (Battery & Charger Included)
SCALE
1/10
MAX SPEED POSSIBLE
50+mph / 80+km/h
POWER TYPE
Brushless
BUILD STATUS
RTR
Saleable Part #
ARA3530SFFT1
Horizon Hobby Saleable Part #
ARA3530SFFT1
BUILD CONFIGURATION OPTIONS
Mid Motor
DRIVE TYPE
2WD
VEHICLE TYPE
Monster Truck
SURFACE
Off-road
LENGTH
465mm / 18.31"
WHEELBASE
295mm / 11.61"
RIDE HEIGHT
50mm / 1.97"
FRONT WIDTH
345mm / 13.58"
REAR WIDTH
345mm / 13.58"
HEIGHT
230mm / 9.06"
NUMBER OF DIFFERENTIALS
1
WEIGHT (INC. SUPPLIED BATTERY)
2.95kg / 6lbs 8oz
BATTERY RECOMMENDATIONS
2S or 3S Lipo (Hardcase only) within dimensions 140x50x35mm
WARRANTY LEVEL
2 Year Limited
ARRMA Part Number
ARA3530SFFT1
Vehicle Name
1/10 FREEDOM FLYER 223S 2WD RTR Brushless Monster Truck (Battery & Charger Included)
BODY LENGTH
420mm / 16.54"
BODY WIDTH
160mm / 6.3"
BODY HEIGHT
120mm / 4.72"
FRONT SPRING RATE
0.359N/mm
REAR SPRING RATE
0.359N/mm
CAPTURED HINGEPINS
Yes
TURNBUCKLES/FIXED LINKS
Fixed Link
HARDWARE TYPE
Hex Head
LOCKING DIFFS
No
DIFFERENTIAL TYPE
Gear
STANDARD SHOCK OIL (Viscosity)
100cSt
STANDARD SHOCK OIL (Type)
Silicone
STANDARD DIFF OIL (Type)
Grease
INTERNAL GEAR RATIO
3.13
INTERNAL GEAR MATERIAL
Plastic
FITTED SPUR SIZE
61Tooth
FITTED SPUR MATERIAL
Plastic
FITTED PINION GEAR SIZE
16Tooth
FITTED PINION MATERIAL
Metal
EXTRA SPEED PINION INCLUDED
No
PINION AND SPUR TOOTH PITCH
0.8Mod
STANDARD FINAL GEAR RATIO
11.93
TIRE STANDARD
MT (2.8")
TIRES INCLUDED
dBoots Cut Chevron MT
TIRE DIAMETER
127mm / 5"
TIRE INSERT TYPE
Medium
DRIVESHAFT TYPE
UJ Slider
WHEEL BEAD DIAMETER
72mm / 2.83"
WHEEL HEX SIZE
14mm
WHEEL STANDARD
MT (2.8" 14mm hex)
WHEEL COLOR/FINISH
Blue
MOUNTED TIRES
Yes
TIRE ATTACHMENT METHOD
Glued
SERVO HORN MATERIAL
Plastic
SERVO SPLINE SIZE
25T
BATTERY MAX DIMENSIONS
140x50x35mm / 5.51x1.97x1.38"
CHASSIS MATERIAL
Moulded Composite
TRIMMED BODY
Yes
BODY-ON BATTERY ACCESS
Yes
BODY PIN RETAINERS
Clipless Mounting System
MODEL PRODUCTION YEAR
2026
ARRMA Part Number
ARA3530SFFT1
Vehicle Name
1/10 FREEDOM FLYER 223S 2WD RTR Brushless Monster Truck (Battery & Charger Included)
POWER LEVEL
223S
RADIO SYSTEM
Spektrum SLT2 Tx/Spektrum 4510RX Brushless 2in1 Unit with Gyro
2.4Ghz
Yes
NUMBER OF RADIO CHANNELS
2
ESC
Spektrum 4510RX Brushless 2in1 Unit with Gyro
WATERPROOF ELECTRONICS
Yes
ESC CONNECTOR TYPE
IC5
MOTOR
Spektrum Firma 3660 4000KV
MAXIMUM MOTOR SIZE
3660
SERVO
Spektrum S681
SERVO GEAR MATERIAL
Metal
MAX SERVO TORQUE @6v
6KGkg-cm / 84oz-in
MAX SERVO SPEED @6v
0.15sec
ARRMA Part Number
ARA3530SFFT1
Vehicle Name
1/10 FREEDOM FLYER 223S 2WD RTR Brushless Monster Truck (Battery & Charger Included)

Included

BATTERY INCLUDED
SPMX-1087
CHARGER TYPE SUPPLIED
Spektrum S100 G2 USB-C Charger
BATTERY CONNECTOR SUPPLIED
IC5
TOOLS INCLUDED
Multi Tool and Hex Wrenches (2.0, 2.5mm)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
30C 4000mAh
REQUIRED ITEMS
LiPo Charging Bag

Resources

ARA3530SFFT1
1/10 FREEDOM FLYER 223S 2WD RTR Brushless Monster Truck (Battery & Charger Included)
Product Page / Downloads
Exploded View (Interactive)
Standard Parts
Option Parts
