Fun, Tough & Amazing Value With No Compromises

  • ARA3521T1 FURY 223S
    BLX SC Truck (Blue)
    ARA3521T2 FURY 223S
    BLX SC Truck (Green)
    ARA3521T3 FURY 223S
    BLX SC Truck (Purple)
  • ARA3521T3 FURY 223S BLX SC Truck (Purple)
  • ARA3521T2 FURY 223S BLX SC Truck (Green)
  • ARA3521T1 FURY 223S BLX SC Truck (Blue)
  • ARA3521T3 FURY 223S BLX SC Truck (Purple)
  • ARA3521T2 FURY 223S BLX SC Truck (Green)

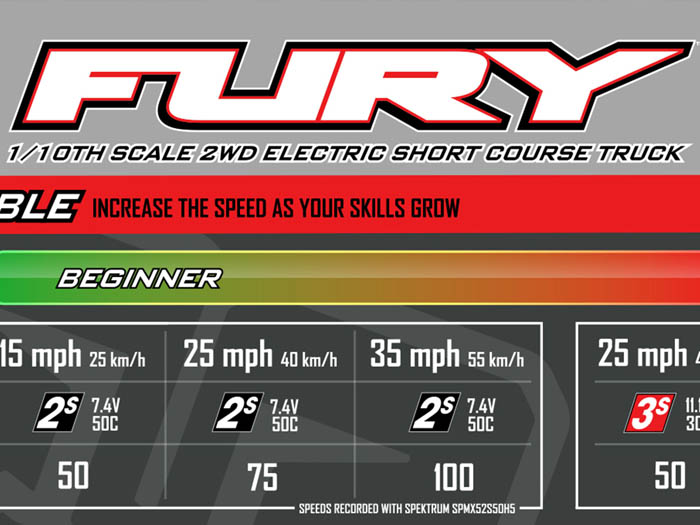

Match Speed To Your Skill

  • 2
    2
    3S
    discover the ultimate value with ARRMA 223S; run 2S batteries for speeds to match or beat the competition & switch to 3S for wild, extreme performance - all with no extra parts
    ARA3521T1 FURY 223S BLX SC Truck (Blue)
  • FOUR MODES
    • High - great for beginners, maximum stability

    • Medium - ideal for lower grip surfaces

    • Low - perfect for high grip surfaces

    • Off - maximum fun for skilled drivers; you are on your own
    one easy adjustment on the transmitter
    SPEKTRUM DSC SENSES THE RATE OF CHANGE TO THE
    YAW ANGLE AND APPLIES STEERING CORRECTION
    ARA3521T1 FURY 223S BLX SC Truck (Blue)
  • COMPOSITE CHASSIS
    low center of gravity & long wheelbase with
    modern mid-motor design gives balanced
    handling & keeps motor clean for longer
    life & reduced maintenance

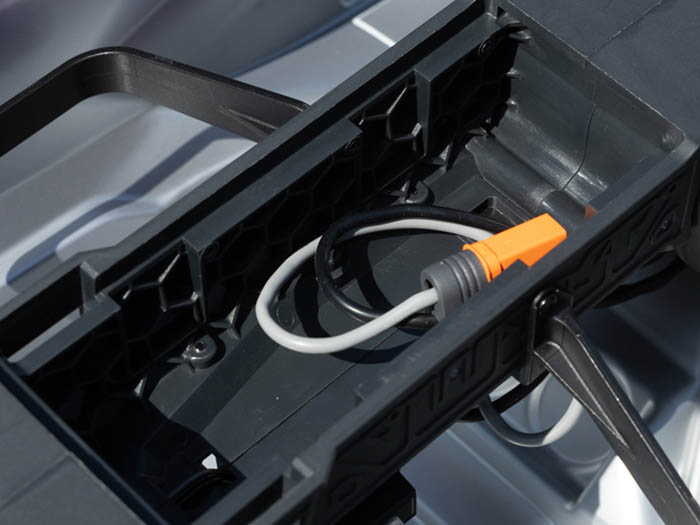

  • EASY ACCESS
    battery tray for fast
    battery swaps
  • SIMPLE
    two sliding clips
    for body retention

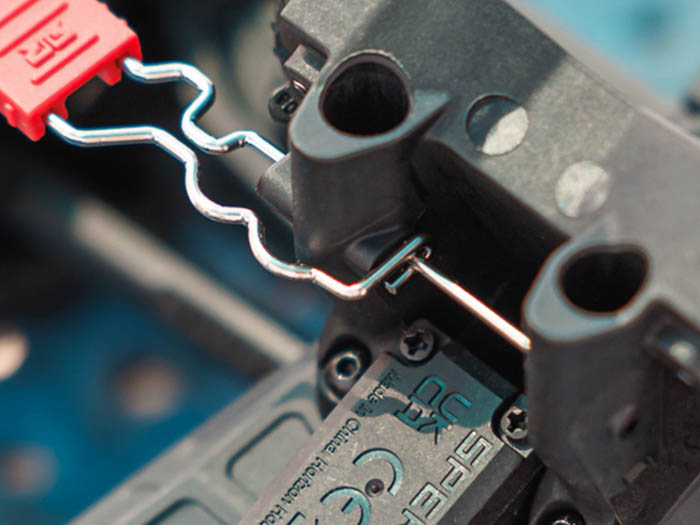

  • MESH-SAFE PLATE
    locks the motor into the correct position
    for fast, easy, secure gearing setting
    ARA3521T3 FURY 223S BLX SC Truck (Purple)

Powerful Spektrum Electronics

  • SPEKTRUM 2in1
    BRUSHLESS ESC/RECEIVER
    for smooth, proportional control &
    waterproof, go-anywhere performance
  • SPEKTRUM
    SLT2 TRANSMITTER
    50 & 75 THROTTLE LIMITER
    easily match speed to your skills
    MAXIMUM COMFORT
    ergonomic handle and foam wheel grip
    EASY DRIVING
    adjustable steering rate
    SIMPLE
    DSC mode adjustment
  • THE PERFECT COMPLEMENT
    power your FURY 223S BLX with genuine SPEKTRUM accessories
    SPMXC2090 S100 1x100W
    USB-C Smart Charger
    SPMXC2050 S155 1x55W
    AC Smart Charger
    SPMX-1027 65W USB-C
    GaN Power Supply
    SPMX52S50H5 7.4V 5000mAh 2S 50C
    Smart G2 Hardcase LiPo Battery: IC5
    SPMX-1088 11.1V 4000mAh 3S 30C
    Smart G2 Hardcase LiPo Battery: IC5

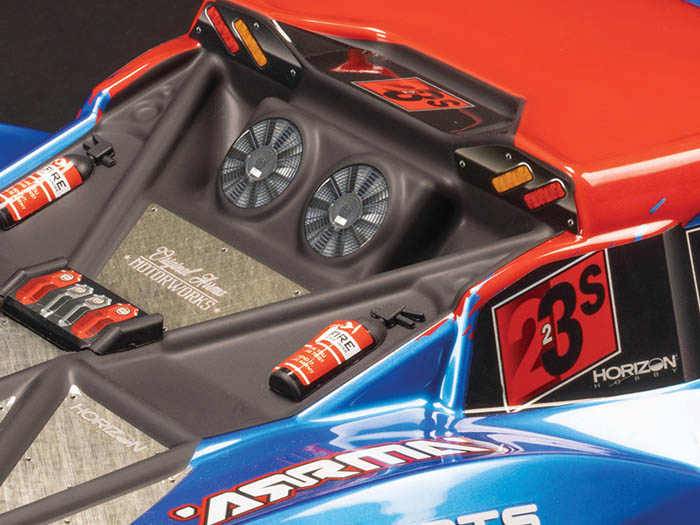

  • KEEP COOL
    40mm fan holds motor
    temperatures in check
  • POWERFUL 4000KV
    MOTOR
    propels the FURY 223S BLX
    to speeds of up to 50MPH

Great Features

  • THREE GREAT COLOR CHOICES
    sets the FURY 223S BLX apart
    ARA3521T1 FURY 223S
    BLX SC Truck (Blue)
    ARA3521T2 FURY 223S
    BLX SC Truck (Green)
    ARA3521T3 FURY 223S
    BLX SC Truck (Purple)
  • SUPER TOUGH
    TRANSMISSION
    massive 22mm wide gears
    efficiently transfer all the
    horsepower - even with 3S
  • BEEFY GEARS
    durable composite & alloy gears
    to put the power to the ground
  • METAL INTERNAL DIFF GEARS
    for added toughness
  • NERF BARS
    protect the FURY 223S BLX
    from side impacts

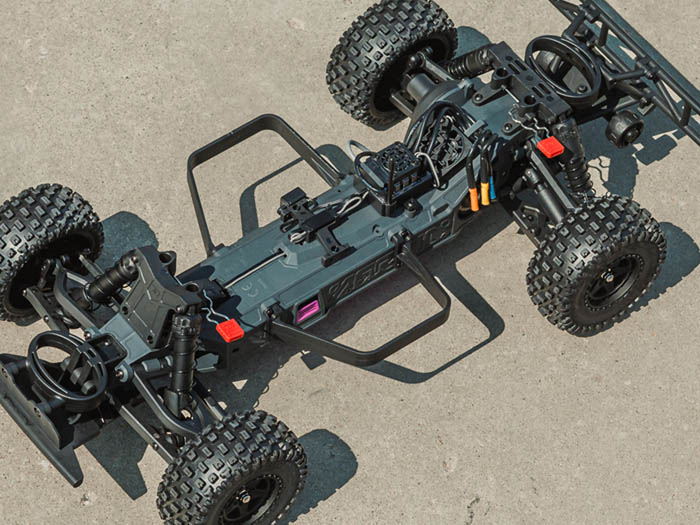

Under the hood

  • KEEP IT SIMPLE
    spine chassis layout design is
    easy to keep clean and maintain
  • BUILT FOR BASHING
    shock absorbing bumpers
    & skid plates offer the
    FURY 223S BLX
    incredible durability
  • ABSORB THE TERRAIN
    oil filled shock absorbers
    soak-up the rough stuff
  • HEAVY DUTY
    composite slider driveshafts
    transfer power to the rear wheels

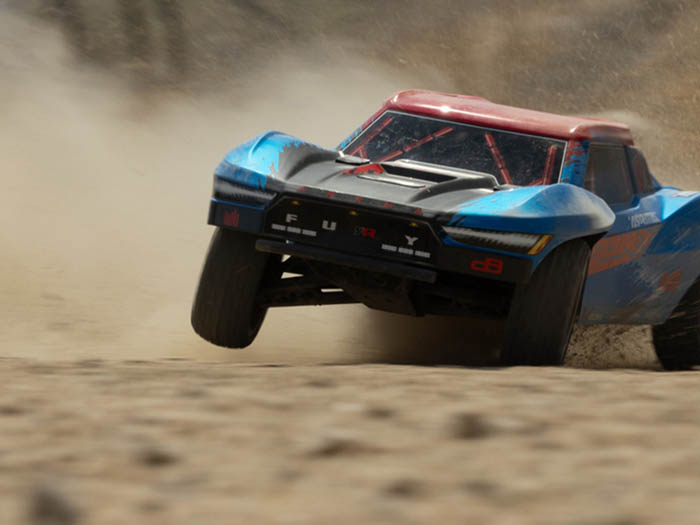

Unleash The FURY

  • ARA3521T2 FURY 223S BLX SC Truck (Green)
  • ARA3521T1 FURY 223S BLX SC Truck (Blue)
  • ARA3521T3 FURY 223S BLX SC Truck (Purple)
  • ARA3521T2 FURY 223S BLX SC Truck (Green)
  • ARA3521T1 FURY 223S BLX SC Truck (Blue)

Specifications

ARRMA Part Number
ARA3521T1
ARA3521T2
ARA3521T3
Vehicle Name
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Blue
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Green
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Purple
SCALE
1/10
1/10
1/10
MAX SPEED POSSIBLE
50+mph / 80+km/h
50+mph / 80+km/h
50+mph / 80+km/h
POWER TYPE
Brushless
Brushless
Brushless
BUILD STATUS
RTR
RTR
RTR
Saleable Part #
ARA3521T1
ARA3521T2
ARA3521T3
BUILD CONFIGURATION OPTIONS
Mid Motor
Mid Motor
Mid Motor
DRIVE TYPE
2WD
2WD
2WD
VEHICLE TYPE
Short Course Truck
Short Course Truck
Short Course Truck
SURFACE
Off-road
Off-road
Off-road
LENGTH
558mm / 21.97"
558mm / 21.97"
558mm / 21.97"
WHEELBASE
330mm / 12.99"
330mm / 12.99"
330mm / 12.99"
RIDE HEIGHT
38mm / 1.5"
38mm / 1.5"
38mm / 1.5"
FRONT WIDTH
310mm / 12.2"
310mm / 12.2"
310mm / 12.2"
REAR WIDTH
310mm / 12.2"
310mm / 12.2"
310mm / 12.2"
HEIGHT
205mm / 8.07"
205mm / 8.07"
205mm / 8.07"
NUMBER OF DIFFERENTIALS
1
1
1
WEIGHT (NO BATTERY)
2.44kg / 5lbs 6oz
2.44kg / 5lbs 6oz
2.44kg / 5lbs 6oz
BATTERY RECOMMENDATIONS
2S or 3S Lipo (Hardcase only) within dimensions 140x50x35mm
2S or 3S Lipo (Hardcase only) within dimensions 140x50x35mm
2S or 3S Lipo (Hardcase only) within dimensions 140x50x35mm
WARRANTY LEVEL
2 Year Limited
2 Year Limited
2 Year Limited
ARRMA Part Number
ARA3521T1
ARA3521T2
ARA3521T3
Vehicle Name
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Blue
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Green
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Purple
BODY LENGTH
536mm / 21.1"
536mm / 21.1"
536mm / 21.1"
BODY WIDTH
310mm / 12.2"
310mm / 12.2"
310mm / 12.2"
BODY HEIGHT
152mm / 5.98"
152mm / 5.98"
152mm / 5.98"
FRONT SPRING RATE
0.402N/mm
0.402N/mm
0.402N/mm
REAR SPRING RATE
0.547N/mm
0.547N/mm
0.547N/mm
CAPTURED HINGEPINS
Yes
Yes
Yes
TURNBUCKLES/FIXED LINKS
Fixed Link
Fixed Link
Fixed Link
HARDWARE TYPE
Hex Head
Hex Head
Hex Head
LOCKING DIFFS
No
No
No
DIFFERENTIAL TYPE
Gear
Gear
Gear
STANDARD SHOCK OIL (Viscosity)
500cSt
500cSt
500cSt
STANDARD SHOCK OIL (Type)
Silicone
Silicone
Silicone
STANDARD DIFF OIL (Type)
Grease
Grease
Grease
INTERNAL GEAR RATIO
3.13
3.13
3.13
INTERNAL GEAR MATERIAL
Plastic
Plastic
Plastic
FITTED SPUR SIZE
61Tooth
61Tooth
61Tooth
FITTED SPUR MATERIAL
Plastic
Plastic
Plastic
FITTED PINION GEAR SIZE
17Tooth
17Tooth
17Tooth
FITTED PINION MATERIAL
Metal
Metal
Metal
EXTRA SPEED PINION INCLUDED
No
No
No
PINION AND SPUR TOOTH PITCH
0.8Mod
0.8Mod
0.8Mod
STANDARD FINAL GEAR RATIO
11.23
11.23
11.23
TIRE STANDARD
SC (2.2"/3")
SC (2.2"/3")
SC (2.2"/3")
TIRES INCLUDED
dBoots Fortress SC
dBoots Fortress SC
dBoots Fortress SC
TIRE DIAMETER
110mm / 4.33"
110mm / 4.33"
110mm / 4.33"
TIRE INSERT TYPE
Medium
Medium
Medium
DRIVESHAFT TYPE
UJ Slider
UJ Slider
UJ Slider
WHEEL BEAD DIAMETER
56/76mm / 2.2/2.99"
56/76mm / 2.2/2.99"
56/76mm / 2.2/2.99"
WHEEL HEX SIZE
14mm
14mm
14mm
WHEEL STANDARD
SC (2.2"/3")
SC (2.2"/3")
SC (2.2"/3")
WHEEL COLOR/FINISH
Black
Black
Black
MOUNTED TIRES
Yes
Yes
Yes
TIRE ATTACHMENT METHOD
Glued
Glued
Glued
SERVO HORN MATERIAL
Plastic
Plastic
Plastic
SERVO SPLINE SIZE
25T
25T
25T
BATTERY MAX DIMENSIONS
140x50x35mm / 5.51x1.97x1.38"
140x50x35mm / 5.51x1.97x1.38"
140x50x35mm / 5.51x1.97x1.38"
CHASSIS MATERIAL
Moulded Composite
Moulded Composite
Moulded Composite
TRIMMED BODY
Yes
Yes
Yes
BODY-ON BATTERY ACCESS
Yes
Yes
Yes
BODY PIN RETAINERS
Clipless Mounting System
Clipless Mounting System
Clipless Mounting System
MODEL PRODUCTION YEAR
2024
2024
2024
ARRMA Part Number
ARA3521T1
ARA3521T2
ARA3521T3
Vehicle Name
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Blue
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Green
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Purple
POWER LEVEL
2 - 3S
2 - 3S
2 - 3S
RADIO SYSTEM
Spektrum SLT2 Tx/Spektrum 4510RX Brushless 2in1 Unit with Gyro
Spektrum SLT2 Tx/Spektrum 4510RX Brushless 2in1 Unit with Gyro
Spektrum SLT2 Tx/Spektrum 4510RX Brushless 2in1 Unit with Gyro
2.4Ghz
Yes
Yes
Yes
NUMBER OF RADIO CHANNELS
2
2
2
ESC
Spektrum 4510RX Brushless 2in1 Unit with Gyro
Spektrum 4510RX Brushless 2in1 Unit with Gyro
Spektrum 4510RX Brushless 2in1 Unit with Gyro
WATERPROOF ELECTRONICS
Yes
Yes
Yes
ESC CONNECTOR TYPE
IC5
IC5
IC5
MOTOR
Spektrum Firma 3650 4000KV
Spektrum Firma 3650 4000KV
Spektrum Firma 3650 4000KV
MAXIMUM MOTOR SIZE
550
550
550
SERVO
Spektrum S681
Spektrum S681
Spektrum S681
SERVO GEAR MATERIAL
Metal
Metal
Metal
MAX SERVO TORQUE @6v
6KGkg-cm / 84oz-in
6KGkg-cm / 84oz-in
6KGkg-cm / 84oz-in
MAX SERVO SPEED @6v
0.15sec
0.15sec
0.15sec
ARRMA Part Number
ARA3521T1
ARA3521T2
ARA3521T3
Vehicle Name
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Blue
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Green
1/10 FURY 223S BLX Brushless 2WD Short Course Truck RTR with DSC, Purple

Included

BATTERY INCLUDED
No
No
No
BATTERY CONNECTOR SUPPLIED
IC5
IC5
IC5
TOOLS INCLUDED
Multi Tool and Hex Wrenches (2.0, 2.5mm)
Multi Tool and Hex Wrenches (2.0, 2.5mm)
Multi Tool and Hex Wrenches (2.0, 2.5mm)

Required

REQUIRED ITEMS
2S LiPo or 3S LiPo, LiPo Charging Bag, Charger
2S LiPo or 3S LiPo, LiPo Charging Bag, Charger
2S LiPo or 3S LiPo, LiPo Charging Bag, Charger
