Fun, Tough and Amazing Value

Have It Your Way

READY FOR ACTION - YOUR WAY

GORGON offers two models supplied with a battery & charger
or one model that allows you to pick your own

ARA3230ST1 - GORGON 550 Mega RTR (Flouro Yellow) SMART USB
ARA3230ST2 - GORGON 550 Mega RTR (Red) SMART USB
ARA3230T1 - GORGON 550 Mega RTR (Blue)
BUILD YOUR OWN

ready to assemble can be up-and-running in under 1 hour

ARA3230SKT1 - GORGON 550 Mega RTA (Gunmetal) SMART USB
BIG FUN

crush the terrain & enjoy
wheelie popping action

ARA3230T1 - GORGON 550 Mega RTR (Blue)

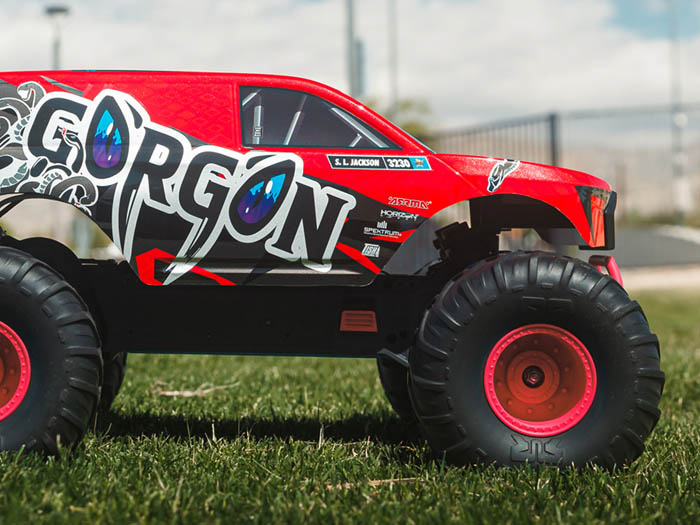

SLEEK

hidden body mounts
preserve scale look

ARA3230ST2 - GORGON 550 Mega RTR (Red) SMART USB
COMPOSITE CHASSIS

extra ground clearance for all terrains

ARA3230T1 - GORGON 550 Mega RTR (Blue)
EASY ACCESS

battery tray allows fast battery swaps
color coded for additional style

ARA3230ST1 - GORGON 550 Mega RTR (Flouro Yellow) SMART USB

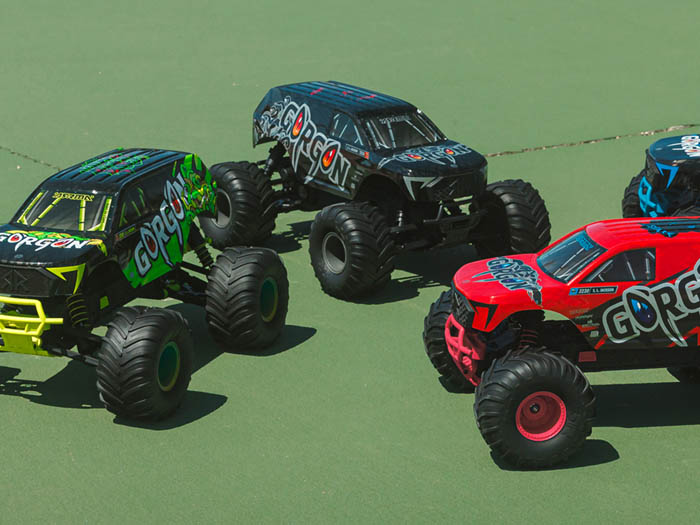

BEAUTY IS NO MYTH

stunning color schemes make the
GORGON stand out from the crowd

ARA3230ST1 - GORGON 550 Mega RTR (Flouro Yellow) SMART USB
READY TO ASSEMBLE

most of the GORGON range is ready to run, but if you prefer to build we have that
covered too - start your RC building journey and learn mechanical skills here

ARA3230SKT1 - GORGON 550 Mega RTA (Gunmetal) SMART USB
ARA3230ST1 - GORGON 550 Mega RTR (Flouro Yellow) SMART USB

Proven Spektrum Electronics

SLT2 TRANSMITTER

50% & 75% THROTTLE LIMITER

easily match speed to your skills

MAXIMUM COMFORT

ergonomic handle and foam wheel grip

EASY DRIVING

adjustable steering rate
SPEKTRUM 8.4V SMART NiMH BATTERY
- 3300mAh Capacity for long run times
- Hump pack design for compact footprint
- Spektrum Smart Technology makes charging and maintaining batteries easy
- Automatic charging when paired with a Spektrum Smart Charger - ensures safe and accurate charge parameters
- Internal battery temperature monitor helps guarantee safe charging and discharging
- Integrated microchip stores unique parameters for each battery
- IC3 Connector (Compatible with EC3)
Included with the following Smart equipped models:
ARA3230ST1 - GORGON 550 Mega RTR (Flouro Yellow) SMART USB
ARA3230ST2 - GORGON 550 Mega RTR (Red) SMART USB
ARA3230SKT1 - GORGON 550 Mega RTA (Gunmetal) SMART USB
Available as a separate item:
SPMX33007C3H - Spektrum 3300mAh 7C 8.4V Smart NiMH Hump Pack
SPEKTRUM S120 USB-C SMART CHARGER

Included with the following Smart equipped models:
ARA3230ST1 - GORGON 550 Mega RTR (Flouro Yellow) SMART USB
ARA3230ST2 - GORGON 550 Mega RTR (Red) SMART USB
ARA3230SKT1 - GORGON 550 Mega RTA (Gunmetal) SMART USB
Available as a separate item:
SPMXC1020 - Spektrum S120 USB-C Smart Charger 1x20W
- Easily charge compatible smart batteries from any compatible USB power source
- Automatically detects smart battery information and begins charging when connected
- 20W Fast charge for typical charge times of 2 to 3 hours
- Auto charge cut-off for safe operation
- Compatible with 2-3 cell Spektrum Smart LiPo/LiFe/LiHV and 6-7 cell Smart NiMH Batteries
- Recommended to be used with USB Power adaptor with QC 2.0 / 3.0 18W+ (not included)
LiPo READY CHARGER

compatible with Spektrum Smart LiPo batteries
CHARGE ANYWHERE

USB input to charge at home or in your car*

USB adaptor not included

SIMPLE TO USE

Spektrum Smart Technology
to plug and go

SAFE

automatically detects battery type
and selects correct charge profile

FUTURE PROOF

compatible with Smart LiPo
batteries for easy upgrades
to more power

Included with the following Smart equipped models:
ARA3230ST1 - GORGON 550 Mega RTR (Flouro Yellow) SMART USB
ARA3230ST2 - GORGON 550 Mega RTR (Red) SMART USB
ARA3230SKT1 - GORGON 550 Mega RTA (Gunmetal) SMART USB

Available as separate items:
SPMX33007C3H - Spektrum 3300mAh 7C 8.4V Smart NiMH Hump Pack
SPMXC1020 - Spektrum S120 USB-C Smart Charger 1x20W

*Never leave charging batteries unattended
YOU DECIDE

ARA3230ST1
ARA3230ST2
ARA3230SKT1

ARA3230T1

"S" MODELS WITH SMART BATTERY & CHARGER

WITHOUT BATTERY & CHARGER

EVERYTHING INCLUDED - MAXIMUM CONVENIENCE

USE YOUR OWN or GO STRAIGHT FOR LiPo POWER

GORGON 550 MEGA RTR (Flouro Yellow) Smart USB
GORGON 550 MEGA RTR (Red) Smart USB
GORGON 550 MEGA RTA (Gunmetal) Smart USB

GORGON 550 MEGA RTR (Blue)

Recommended completion items:
SPMXPSS100
SPMX-1031
SPMX33007C3H
SPMXC1020

100W S100 Smart Powerstage Bundle - Surface - 3300mAh 7-Cell NiMH Battery
100W S100 Smart Powerstage Bundle - Surface - 5000mAh Hardcase 2S 50C LIPO Battery (iC3)
Spektrum 3300mAh 7C 8.4V Smart NiMH Hump Pack
Spektrum S120 USB-C Smart Charger 1x20W
EXTRA POWER

8.4v battery provides 17% more voltage than typical RTR batteries

LONGER RUNTIMES

3300mAh battery offers 83% increase
in capacity over a typical 1800mAh pack

EASY UPGRADES

change to a Smart 2S LiPo battery for
more speed and even longer runtimes

Included with the following Smart equipped models:
ARA3230ST1 - GORGON 550 Mega RTR (Flouro Yellow) SMART USB
ARA3230ST2 - GORGON 550 Mega RTR (Red) SMART USB
ARA3230SKT1 - GORGON 550 Mega RTA (Gunmetal) SMART USB
Available as a separate item:
SPMX33007C3H - Spektrum 3300mAh 7C 8.4V Smart NiMH Hump Pack

Optional battery pictured:
SPMX52S30H3 - 7.4V 5000mAh 2S 30C Smart LiPo G2 Hard Case: IC3
SPEKTRUM S660 SERVO

rugged, powerful & waterproof to turn the GORGON with ease
ARA3230SKT1 - GORGON 550 Mega RTA (Gunmetal) SMART USB

Tough Transmission

BRUSHLESS READY
TRANSMISSION

ready for even more power?
the GORGON is up to the task

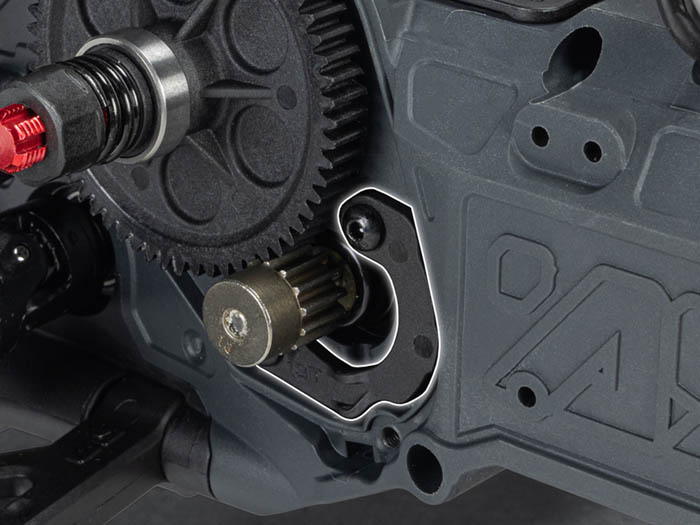

BEEFY GEARS

durable composite & alloy gears
to put the power to the ground
FAST

diff access - just four screws
METAL INTERNAL DIFF GEARS

for added toughness
SLIPPER CLUTCH

easily accessible & ready to protect the transmission
from anything that dares to get in the path of the GORGON
HEAVY DUTY

composite slider driveshafts
transfer power to the rear wheels
RUBBER
SHIELDED
BEARINGS

reduced maintenance
ARA3230ST2 - GORGON 550 Mega RTR (Red) SMART USB

Under The Hood

POINT THE WAY

dBoots CHEVRON tires
provide durable traction
& true monster truck style
PERFECTLY DAMPED

chunky oil filled dampers and color coded
springs soak-up the roughest terrain
THE SPINE OF
THE BEAST

rigid composite chassis provides
solid backbone for maximum
bashing fun, less dirt build-up
and easy maintenance

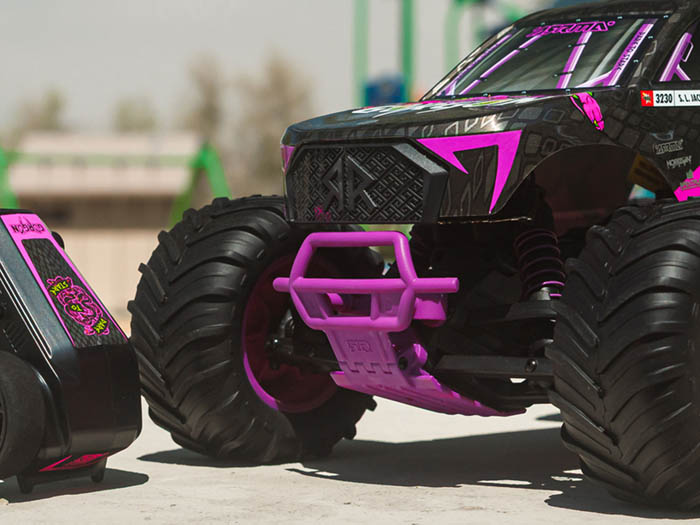

BASH IN STYLE

shock absorbing color coded
bumpers & skid plates offer
the GORGON incredible durability
and let it stand out from the crowd
PRESERVE
& PROTECT

new body mount system
preserves clean lines of
the bodyshell and
protects from impacts
ARA3230T1 - GORGON 550 Mega RTR (Blue)

Option Parts

OPTION PARTS

the GORGON is fully equipped straight from the
box, but use these parts to make it your own!

ARA3230ST2 - GORGON 550 Mega RTR (Red) SMART USB
COLOR CONVERSION SETS

four options to easily personalize your GORGON

ARA402354
Black/Red

ARA402357
Orange

ARA402356
Green

ARA402350
Purple
INDIVIDUAL COLOR PARTS

make your own combinations
and choose your style

Alternative color parts available in:

Fluorescent Yellow

Red

Black

Blue

Purple

Orange

Pink

Green

Click here to purchase
GORGON pictured fitted with
ARA402350 Purple Color Conversion Set
ORIGINAL COLORS

easily convert your GORGON to one of the other factory color options

ARA402349
Fluorescent Yellow

ARA402351
Red

ARA402355
Blue

ARA402353
Gunmetal

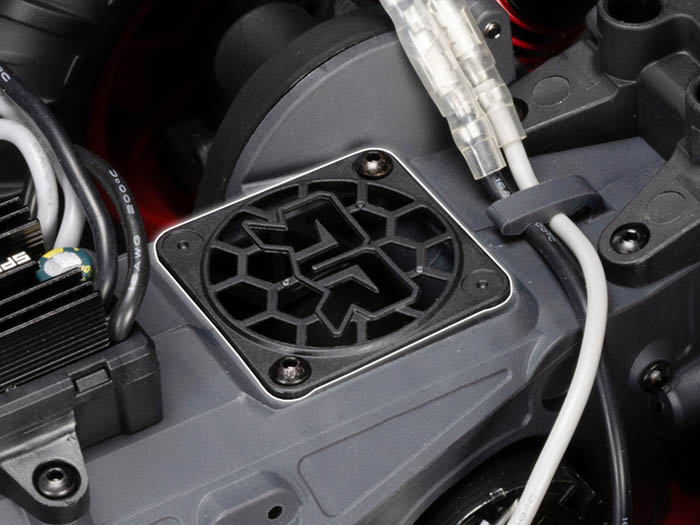

KEEP YOUR COOL

easily mount a fan to take
the heat off the motor

ARA390300 Fan Set (35mmx35mm)

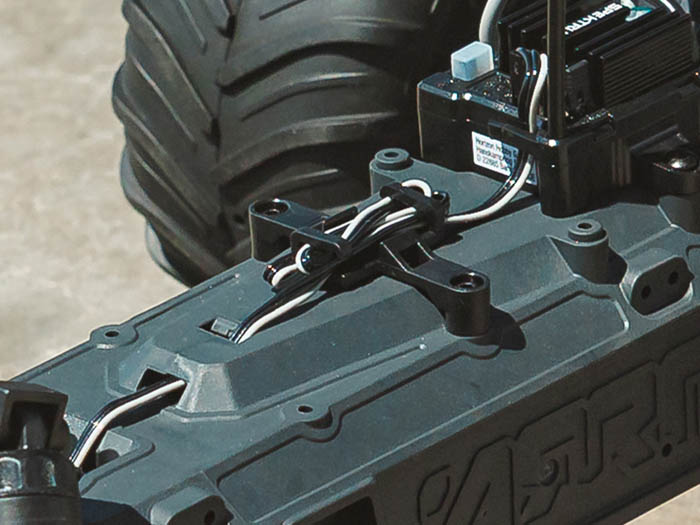

BOXING CLEVER

want to fit an aftermarket receiver?
the official ARRMA receiver box retains
the waterproof status of the GORGON

ARA320685
Receiver Box Set
GORGON pictured fitted with
ARA402357 Orange Color Conversion Set
RAISE THE BAR

wheelie bar makes
stunt action effortless

ARA320613
Wheelie Bar Set

Specifications

Overview Detailed Specs Electronics Included/Required

ARRMA Part Number

ARA3230ST1

ARA3230ST2

ARA3230SKT1

ARA3230T1

Vehicle Name

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Yellow

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Red

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck Ready-To-Assemble Kit with Battery & Charger

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR

SCALE

1/10

MAX SPEED POSSIBLE

20+mph / 32+km/h

POWER TYPE

Brushed

BUILD STATUS

RTR

Kit

RTR

Saleable Part #

ARA3230ST1

ARA3230ST2

ARA3230SKT1

ARA3230T1

BUILD CONFIGURATION OPTIONS

Mid Motor

DRIVE TYPE

2WD

VEHICLE TYPE

Monster Truck

SURFACE

Off-road

LENGTH

421mm / 16.57"

WHEELBASE

295mm / 11.61"

RIDE HEIGHT

65mm / 2.56"

FRONT WIDTH

334mm / 13.15"

REAR WIDTH

334mm / 13.15"

HEIGHT

245mm / 9.65"

NUMBER OF DIFFERENTIALS

WEIGHT (INC. SUPPLIED BATTERY)

2.7kg / 5lbs 15oz

WEIGHT (NO BATTERY)

2.26kg / 5lbs

BATTERY RECOMMENDATIONS

8.4v (7 Cell) NiMh Hump Pack or Hardcase 7.4V (2S) Lipo within max dimensions 156 x 51 x 48mm / 6.14 x 2.01 x 1.89 inches

WARRANTY LEVEL

2 Year Limited

ARRMA Part Number

ARA3230ST1

ARA3230ST2

ARA3230SKT1

ARA3230T1

Vehicle Name

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Yellow

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Red

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck Ready-To-Assemble Kit with Battery & Charger

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR

BODY LENGTH

421mm / 16.57"

BODY WIDTH

150mm / 5.91"

BODY HEIGHT

122mm / 4.8"

FRONT SPRING RATE

0.359N/mm

REAR SPRING RATE

0.359N/mm

CAPTURED HINGEPINS

Yes

TURNBUCKLES/FIXED LINKS

Fixed Links

HARDWARE TYPE

Hex Head

LOCKING DIFFS

DIFFERENTIAL TYPE

Gear

STANDARD SHOCK OIL (Viscosity)

100cSt

STANDARD SHOCK OIL (Type)

Silicone

DIFFERENTIAL CROWN GEAR SPECIFICIATION

47T 0.8M

DIFFERENTIAL PINION GEAR SPECIFICIATION

15T 0.8M

INTERNAL GEAR RATIO

3.13

INTERNAL GEAR MATERIAL

Plastic

FITTED SPUR SIZE

61TTooth

FITTED SPUR MATERIAL

Plastic

FITTED PINION GEAR SIZE

13Tooth

FITTED PINION MATERIAL

Metal

EXTRA SPEED PINION INCLUDED

PINION AND SPUR TOOTH PITCH

0.8Mod

STANDARD FINAL GEAR RATIO

14.68

TIRE STANDARD

MT (2.8")

TIRES INCLUDED

dBoots Chevron MT

TIRE DIAMETER

130mm / 5.12"

DRIVESHAFT TYPE

UJ Slider

WHEEL BEAD DIAMETER

71.5mm / 2.81"

WHEEL HEX SIZE

14mm

WHEEL STANDARD

MT (2.8" 14mm hex)

WHEEL COLOR/FINISH

Gunmetal

MOUNTED TIRES

Yes

TIRE ATTACHMENT METHOD

Glued

SERVO HORN MATERIAL

Plastic

SERVO SPLINE SIZE

25T

BATTERY MAX DIMENSIONS

156x51x48mm / 6.14x2.01x1.89"

CHASSIS MATERIAL

Moulded Composite

TRIMMED BODY

Yes

BODY-ON BATTERY ACCESS

Yes

BODY PIN RETAINERS

Yes

MODEL PRODUCTION YEAR

2023

ARRMA Part Number

ARA3230ST1

ARA3230ST2

ARA3230SKT1

ARA3230T1

Vehicle Name

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Yellow

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Red

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck Ready-To-Assemble Kit with Battery & Charger

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR

POWER LEVEL

Mega

RADIO SYSTEM

Spektrum SLT2

2.4Ghz

Yes

NUMBER OF RADIO CHANNELS

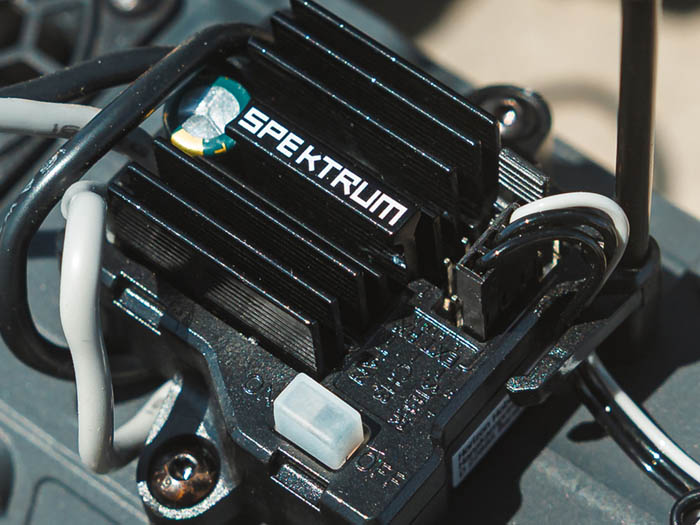

ESC

Spektrum SLT 2-IN-1 25A

WATERPROOF ELECTRONICS

Yes

ESC CONNECTOR TYPE

IC3

MOTOR

MEGA 550 14T BRUSHED MOTOR

MAXIMUM MOTOR SIZE

550

SERVO

SPEKTRUM S660

SERVO GEAR MATERIAL

Plastic

MAX SERVO TORQUE @6v

6kg-cm / 84oz-in

MAX SERVO SPEED @6v

0.12sec

ARRMA Part Number

ARA3230ST1

ARA3230ST2

ARA3230SKT1

ARA3230T1

Vehicle Name

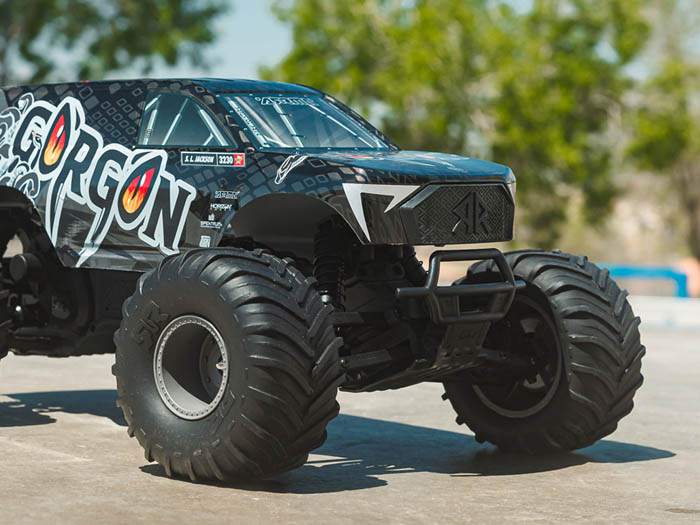

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Yellow

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Red

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck Ready-To-Assemble Kit with Battery & Charger

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR

Included

BATTERY INCLUDED

SPMX33007C3H 3300mAh 7C 8.4V Smart NiMH Hump IC3

BATTERY CONNECTOR SUPPLIED

IC3

TOOLS INCLUDED

Multi Tool and Hex Wrenches (1.5, 2.0, 2.5mm)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE

25C 4000mAh

REQUIRED ITEMS

7 Cell NiMh, 2S Hardcase LiPo Battery, LiPo Charging Bag, Charger

Resources

ARA3230ST1

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Yellow

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

ARA3230ST2

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR with Battery & Charger, Red

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

ARA3230SKT1

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck Ready-To-Assemble Kit with Battery & Charger

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

ARA3230T1

1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

Language

Fun, Tough and Amazing Value

Have It Your Way

Proven Spektrum Electronics

Tough Transmission

Under The Hood

Option Parts

Specifications

Included

Required

Resources

General

Products & Extras

Shop Types of Vehicles

Contact and Care
