The MOJAVE GROM: Small & Skillful

Small in scale: big on features

Feel the power

Ready to bash

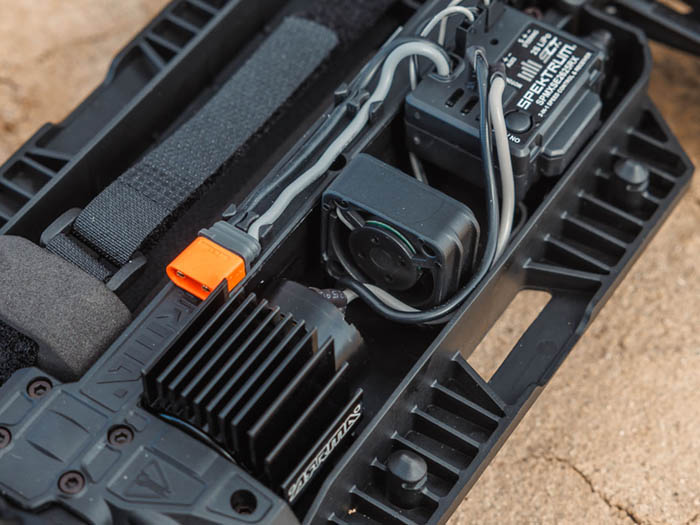

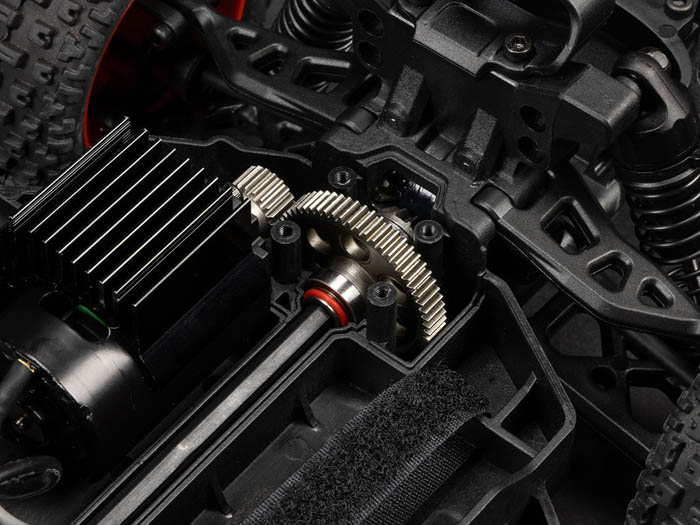

Under the hood

Trick it up

Specifications

ARRMA Part Number
ARA2104T1
ARA2104T2
Vehicle Name

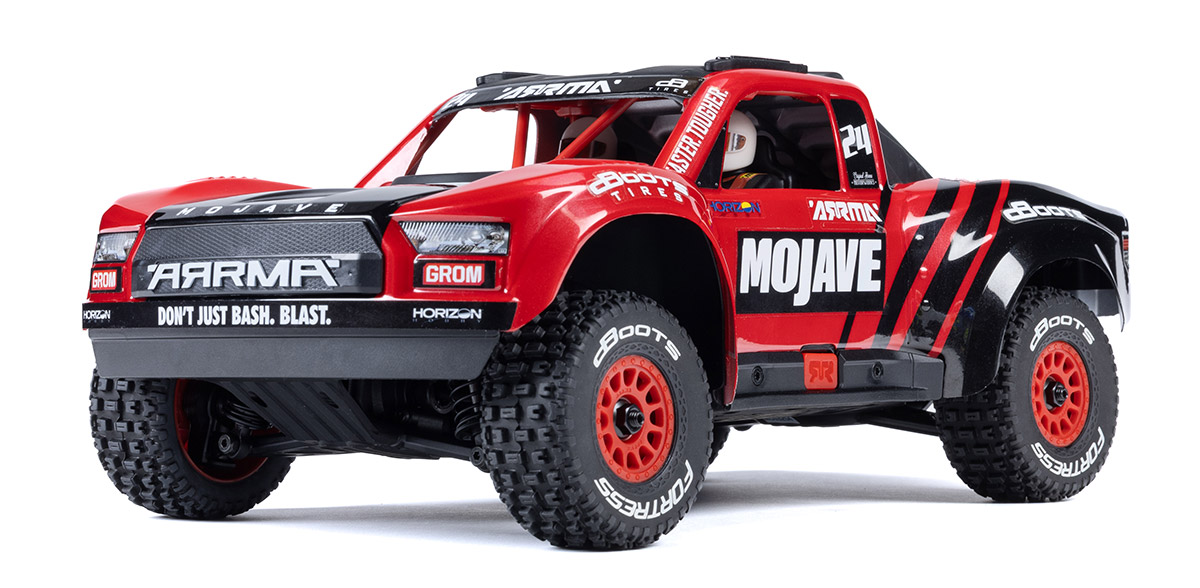

MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Red/Black

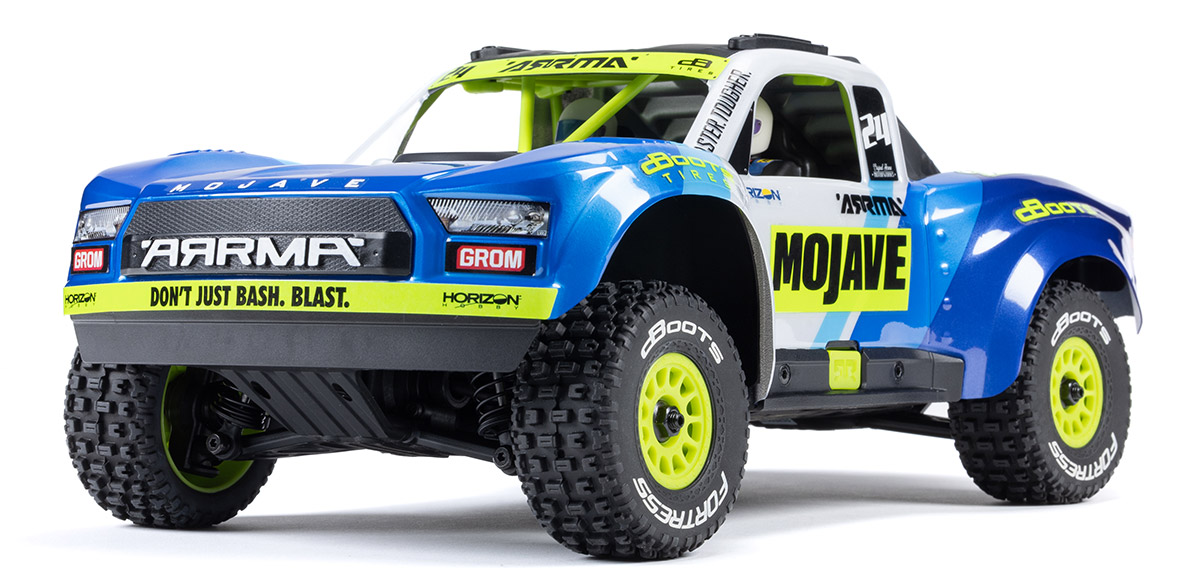

MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Blue/White
SCALE
Small
Small
MAX SPEED POSSIBLE
20+mph / 32+km/h
20+mph / 32+km/h
POWER TYPE
Brushed
Brushed
BUILD STATUS
RTR
RTR
Saleable Part #
ARA2104T1
ARA2104T2
BUILD CONFIGURATION OPTIONS
Mid Motor
Mid Motor
DRIVE TYPE
4WD
4WD
VEHICLE TYPE
Desert Truck
Desert Truck
SURFACE
Off-road
Off-road
LENGTH
338mm / 13.31"
338mm / 13.31"
WHEELBASE
196mm / 7.72"
196mm / 7.72"
RIDE HEIGHT
23mm / 0.91"
23mm / 0.91"
FRONT WIDTH
172mm / 6.77"
172mm / 6.77"
REAR WIDTH
172mm / 6.77"
172mm / 6.77"
HEIGHT
120mm / 4.72"
120mm / 4.72"
NUMBER OF DIFFERENTIALS
2
2
WEIGHT (INC. SUPPLIED BATTERY)
1.03kg / 2lbs 4oz
1.03kg / 2lbs 4oz
WARRANTY LEVEL
2 Year Limited
2 Year Limited
ARRMA Part Number
ARA2104T1
ARA2104T2
Vehicle Name
MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Red/Black
MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Blue/White
BODY LENGTH
340mm / 13.39"
340mm / 13.39"
BODY WIDTH
175mm / 6.89"
175mm / 6.89"
BODY HEIGHT
95mm / 3.74"
95mm / 3.74"
FRONT SPRING RATE
0.45N/mm
0.45N/mm
REAR SPRING RATE
0.45N/mm
0.45N/mm
CAPTURED HINGEPINS
Yes
Yes
TURNBUCKLES/FIXED LINKS
Fixed Link
Fixed Link
HARDWARE TYPE
Hex Head
Hex Head
LOCKING DIFFS
No
No

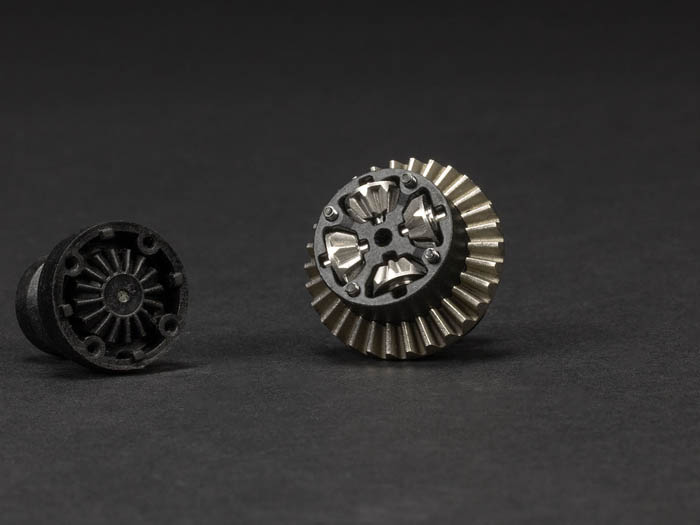

DIFFERENTIAL TYPE
Gear
Gear
STANDARD SHOCK OIL (Viscosity)
800cSt
800cSt
STANDARD SHOCK OIL (Type)
Silicone
Silicone
STANDARD DIFF OIL (Type)
Grease
Grease
DIFFERENTIAL CROWN GEAR SPECIFICIATION
30T 0.8Mod
30T 0.8Mod
DIFFERENTIAL PINION GEAR SPECIFICIATION
12T 0.8Mod
12T 0.8Mod
INTERNAL GEAR RATIO
2.5
2.5

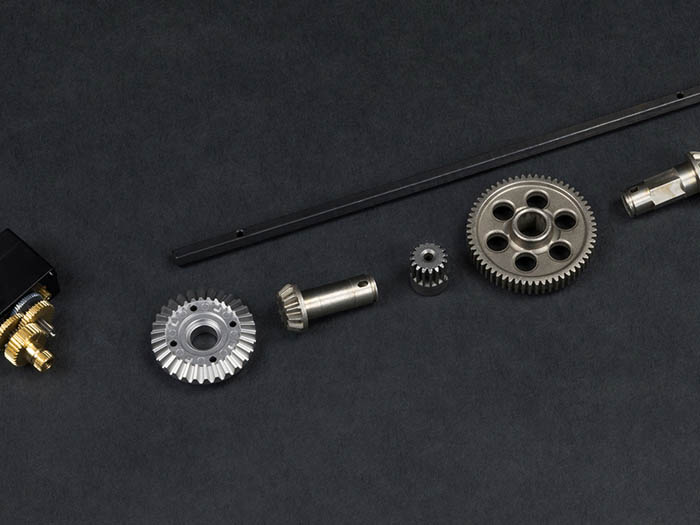

INTERNAL GEAR MATERIAL
Metal
Metal
FITTED SPUR SIZE
59Tooth
59Tooth
FITTED SPUR MATERIAL
Metal
Metal
FITTED PINION GEAR SIZE
19Tooth
19Tooth
FITTED PINION MATERIAL
Metal
Metal
EXTRA SPEED PINION INCLUDED
No
No
PINION AND SPUR TOOTH PITCH
0.5Mod
0.5Mod
STANDARD FINAL GEAR RATIO
7.76
7.76
TIRE STANDARD
Small Scale
Small Scale
TIRES INCLUDED
dBoots FORTRESS
dBoots FORTRESS
TIRE DIAMETER
65mm / 2.56"
65mm / 2.56"
DRIVESHAFT TYPE
CVD Front/Dogbone Rear
CVD Front/Dogbone Rear
WHEEL BEAD DIAMETER
44mm Inner / 31mm Outermm / 1.73/1.22"
44mm Inner / 31mm Outermm / 1.73/1.22"
WHEEL HEX SIZE
12mm
12mm
WHEEL COLOR/FINISH
Red
Flourescent Yellow
MOUNTED TIRES
Yes
Yes
TIRE ATTACHMENT METHOD
Glued
Glued
SERVO HORN MATERIAL
Plastic
Plastic
SERVO SPLINE SIZE
20T
20T
BATTERY MAX DIMENSIONS
101x31x21mm / 3.98x1.22x0.83"
101x31x21mm / 3.98x1.22x0.83"
CHASSIS MATERIAL
Moulded Composite
Moulded Composite
TRIMMED BODY
Yes
Yes
BODY-ON BATTERY ACCESS
No
No
BODY PIN RETAINERS
Clipless Mounting System
Clipless Mounting System
TORQUE SPLIT
50/50
50/50
MODEL PRODUCTION YEAR
2024
2024
ARRMA Part Number
ARA2104T1
ARA2104T2
Vehicle Name
MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Red/Black
MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Blue/White
POWER LEVEL
2S
2S
RADIO SYSTEM
Spektrum SLT2 Tx/Spektrum 2625RX 2in1 Unit
Spektrum SLT2 Tx/Spektrum 2625RX 2in1 Unit
2.4Ghz
Yes
Yes
NUMBER OF RADIO CHANNELS
2
2
ESC
Spektrum 2625RX 2in1 Unit
Spektrum 2625RX 2in1 Unit
WATERPROOF ELECTRONICS
Yes
Yes
ESC CONNECTOR TYPE
IC2
IC2
MOTOR
Mega 380 28T
Mega 380 28T
MAXIMUM MOTOR SIZE
380
380
SERVO
Spektrum SX110
Spektrum SX110
SERVO GEAR MATERIAL
Metal
Metal
ARRMA Part Number
ARA2104T1
ARA2104T2
Vehicle Name
MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Red/Black
MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Blue/White

Included

BATTERY INCLUDED
Yes
Yes
CHARGER TYPE SUPPLIED
Spektrum S10 2S USB-C Smart Charger
Spektrum S10 2S USB-C Smart Charger
BATTERY CONNECTOR SUPPLIED
IC2
IC2

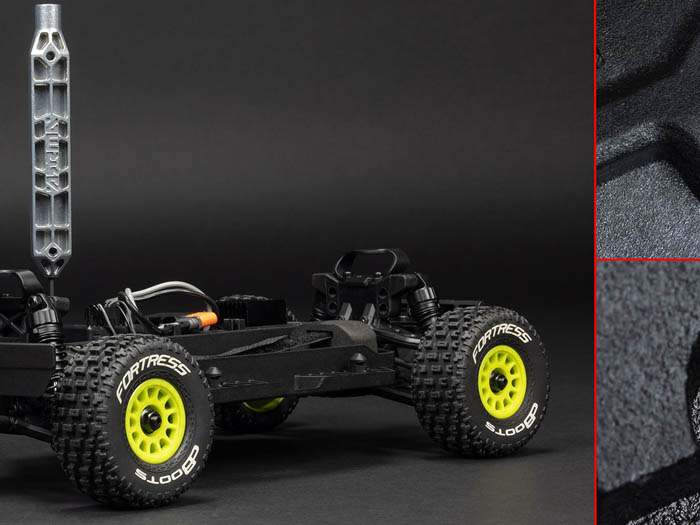

TOOLS INCLUDED
Multi Tool and Hex Wrench
Multi Tool and Hex Wrench

Required

Resources

ARA2104T1
MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Red/Black
Product Page / Downloads
Exploded View (Interactive)
Standard Parts
Option Parts
ARA2104T2
MOJAVE GROM MEGA 4X4 Small Scale Desert Truck RTR, Blue/White
Product Page / Downloads
Exploded View (Interactive)
Standard Parts
Option Parts
