4X4 MEGA Street Bash Resto-Mod Truck

FEATURES

•
  ARRMA MEGA POWER SYSTEM
  featuring a high torque 570 size 9T brushed motor
•

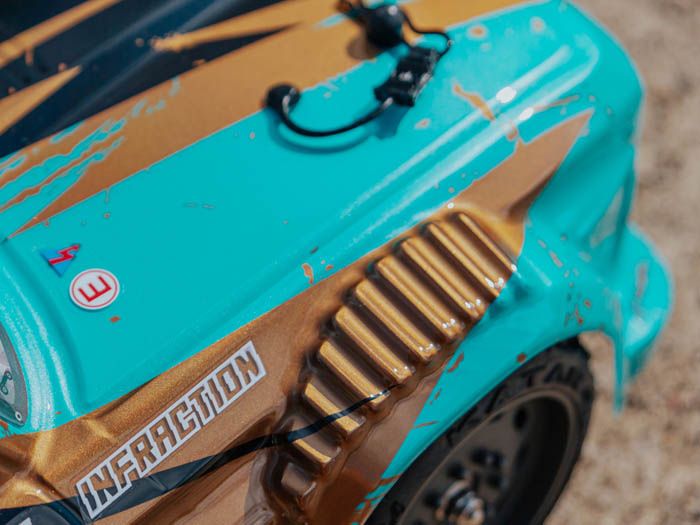

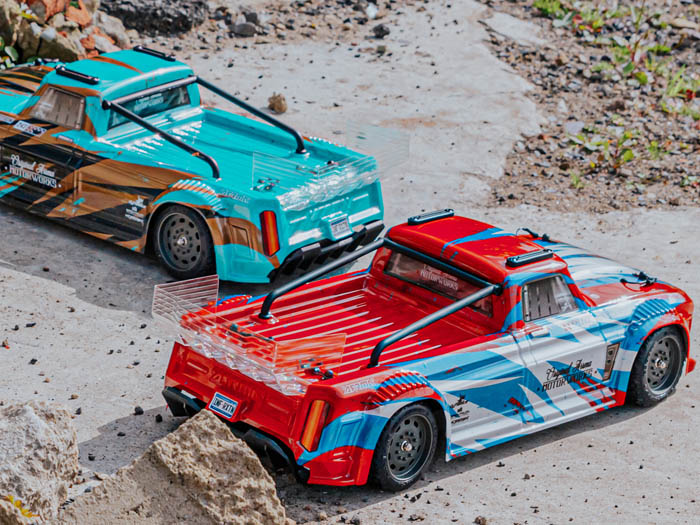

  TWO STUNNING
  BODY PRINTS
  which will you choose?
•

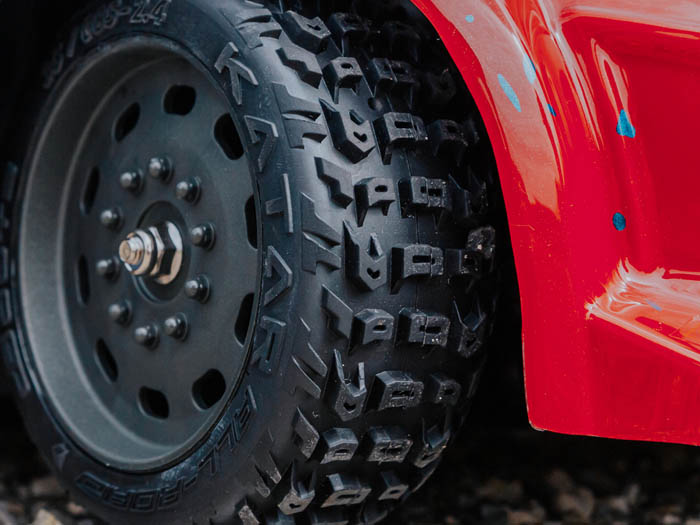

  dBoots® KATAR tires are
  vented and mounted to strong
  gunmetal color wheels
  TRACTION ON
  ALL-ROADS
•
  ACCLAIMED ARRMA INFRACTION STYLING
  now available on an 1/8th scale MEGA vehicle
•

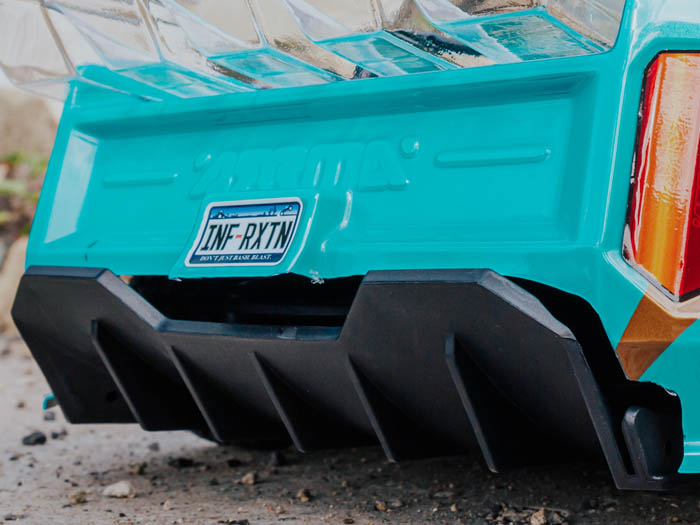

  REAR DIFFUSER
  increased grip, reduced drag
•

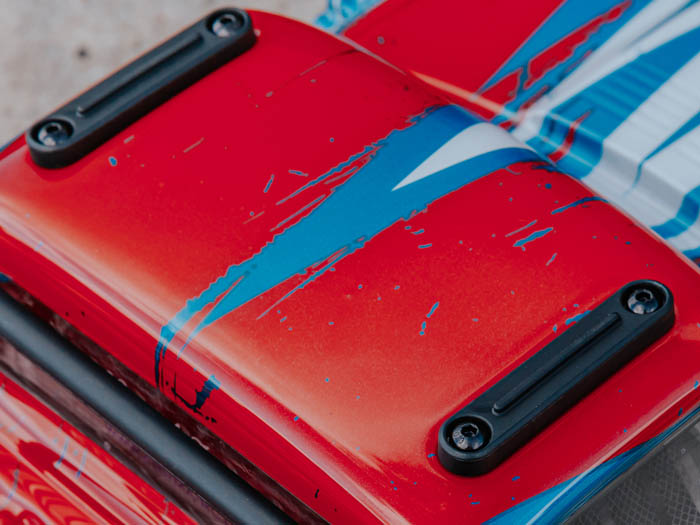

  BODY PROTECTION
  roof skids and rear roll cage protect
  the awesome bodies from battle scars
•

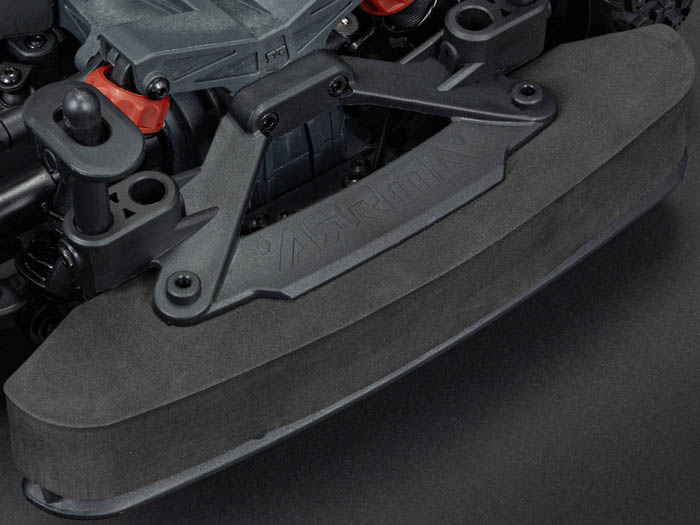

  FRONT COLLISION PROTECTION
  front bumper features a large impact absorbing foam element
  that fits close to the body to provide support in this area
•

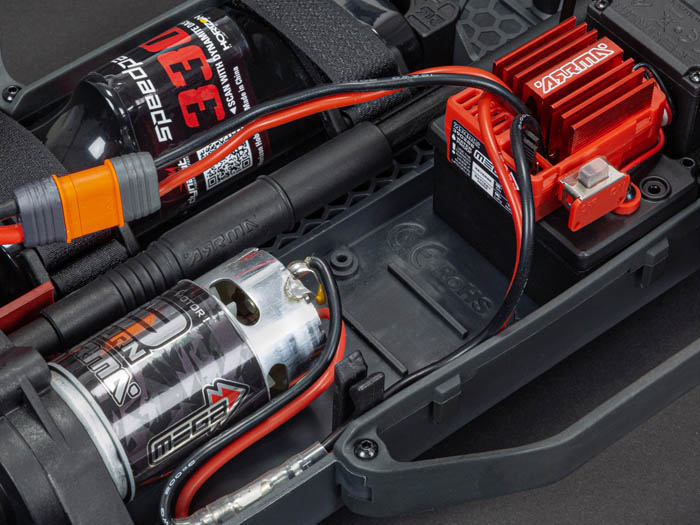

  POWER MODULE
  CASTELLATED
  SLIPPER PAD
  increased durability
  FULLY ADJUSTABLE
  sliding gear mesh
  0.8 MODULE
  GEARS
  increased tooth size
  for increased durability
•

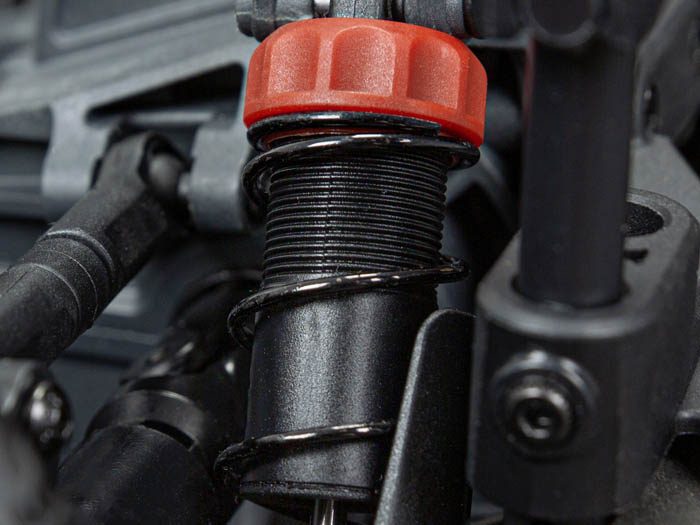

  THREADED SHOCKS
  TUNED FOR ALL-ROADS
  blast over on-road and light off-road surfaces
•

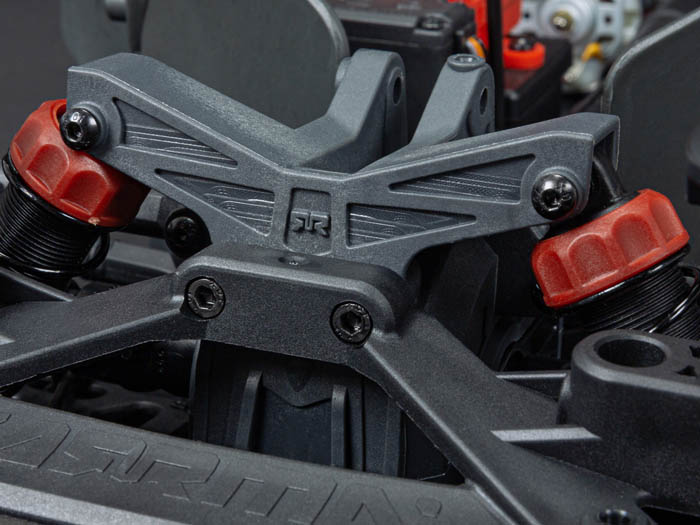

  LOW FRONT SHOCK TOWER
  enables the front of the body to be mounted low down
  LOW REAR SHOCK TOWER
  engineered to work with the all-road shock package
•

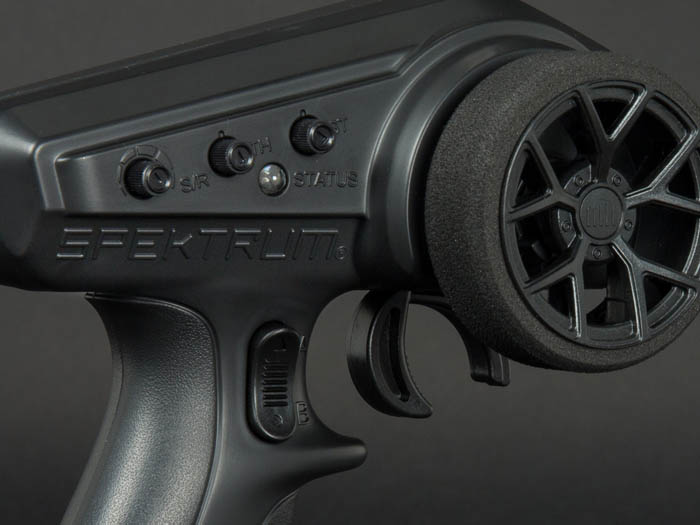

  SPEKTRUM®
  SLT3® RADIO
  • Superb SLT response rate


  • 50% and 75% throttle limit switch - great for beginners


  • Steering dual rate adjustment


  • Steering & throttle trim adjustment


  • Steering & throttle channel reverse switches


  • Foam steering wheel grip


  • Compatible with Tactic Receivers


•

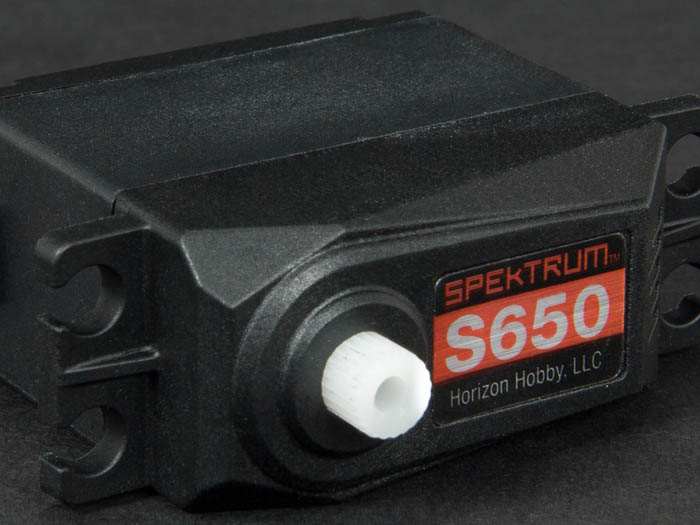

  SPEKTRUM®
  SPMS650 DIGITAL
  SERVO
  • Waterproof*


  • 6kg-cm/84oz-in


  • Torque @6V
  20% MORE TORQUE THAN ADS-5 SERVO
  *For details of waterproof standards, please refer to the product instruction manuals

All-Road Family

•
  WELCOME TO THE FAMILY.
  LET'S BURN RUBBER!
•
•

1/8th SCALE SIZE TUNED FOR ALL-ROADS

•
  OPTIMIZED FOR ALL-ROAD STREET BASHING
  no need for groomed surfaces or specialist tracks, epic fun on any partially paved surface
•
•
•
•

UNDER THE HOOD

•
•
  LARGE POWER
  MODULE PULL-TAB
  easy power module removal
•
  MODULAR DESIGN
  easier maintenance
•
  PROVEN ARRMA DNA
  reengineered for all-road bashing
•
  ONE-SCREW POWER
  MODULE REMOVAL
•
  FIVE-SCREW
  ELECTRONICS
  MODULE REMOVAL
•
  EIGHT-SCREW DIFF
  MODULE REMOVAL
•
  HEAVY DUTY DRIVETRAIN
  4S capable differentials with metal internals
•
  INTERNAL METAL GEARS
  as used on ARRMA 4S
•

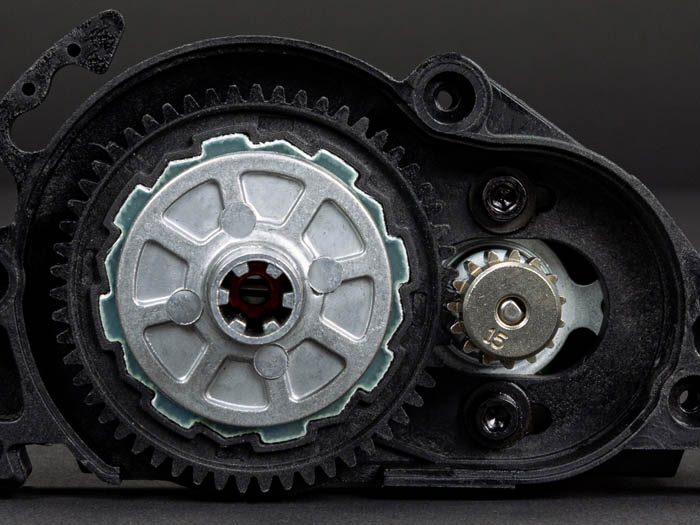

  SINGLE PAD SLIPPER CLUTCH
  featuring 0.8 module 55 tooth spur gear and castellated slipper pad

TUNED FOR ALL-ROADS

•
•
  ALL-ROAD FRONT BUMPER
  featuring a large foam element that is cut to fit
  against the body for maximum body support
•
  FRONT & REAR SWAY BARS
  controlled weight transfer in turns for increased cornering performance
•
  ALL-ROAD THREADED SHOCK PACKAGE
  with silicone o-rings for optimal shock sealing and smooth operation
•
  DOUBLE WISHBONE
  REAR SUSPENSION
  optimized all-road geometry
•
  DOUBLE WISHBONE FRONT SUSPENSION
  with adjustable length upper links and steering links
•
  STEERING ASSEMBLY
  engineered with clearance for stones and debris
•
  HEAVY DUTY C-HUBS
  & STEERING BLOCKS
  14mm wheel hexes
•
  WATERPROOF RECEIVER
  COMPARTMENT
•
  BUILT-IN
  DIRT DEFLECTORS
  advanced dirt protection
•
  RUBBER
  SHIELDED
  BEARINGS
  increased durability
  reduced maintenance
•
  23T SPLINE
  SERVO SAVER
  detail on receiver box
  base to help when setting servo
  saver position to neutral
•
  COMPATIBLE BATTERIES
  6 CELL STICK
  (7.2V) NIMH
  7 CELL HUMP
  (8.4V) NIMH
  INCLUDED
  2S STICK
  (7.4V) LIPO

POWER & TECHNOLOGY

•
  • Fast Response SLT™ Protocol


  • Foam wheel


  • Improved grip & trigger feel


  • Improved wheel & trigger force


  • 2-Way thumb switch 3rd channel


  • 50% & 75% Throttle mode (for beginners)


  • TACTIC® SLT™ Receiver compatible
•
  MEGA WATERPROOF ESC
  • 35A Waterproof ESC with switchable battery mode


  • Red aluminum heat sink for cool running in all conditions


  • Waterproof ESC switch for added safety


  • Safe and secure bullet connectors for solid motor to ESC connection


  • Factory-fitted IC3® Connector (EC3™ compatible) for fast and easy battery installation
  **48km/h. Speed achievable in optimum conditions and optional gearing
•
  MEGA 570 9T BRUSHED MOTOR
  • 9T Brushed MEGA 570 motor provides excellent torque


  • Internal fan and vented motor can for decreased operating heat


  • Safe and secure bullet connectors for solid motor to ESC connection
  **48km/h. Speed achievable in optimum conditions and optional gearing
•
  • Waterproof and dustproof case


  • 23 tooth output spline


  • Torque: 6kg-cm/84oz-in @6V


  • Speed: 0.12sec/60degree @6V


  • Dimensions: 40x38x20mm (Industry standard size)
•
  • 7 Cell NiMH Hump pack


  • 3300mAh capacity


  • 8.4 Volts


  • Factory-fitted IC3® Connector (EC3™ compatible)
•
  ADC-N7 WALL CHARGER
  • Easy to use and will allow you the confidence to safely charge your ARRMA 7 Cell NiMh batteries ready for more bashing action


  • Factory-fitted IC3® Connector (EC3™ compatible)

Specifications

Resources

ARA4215V3T1

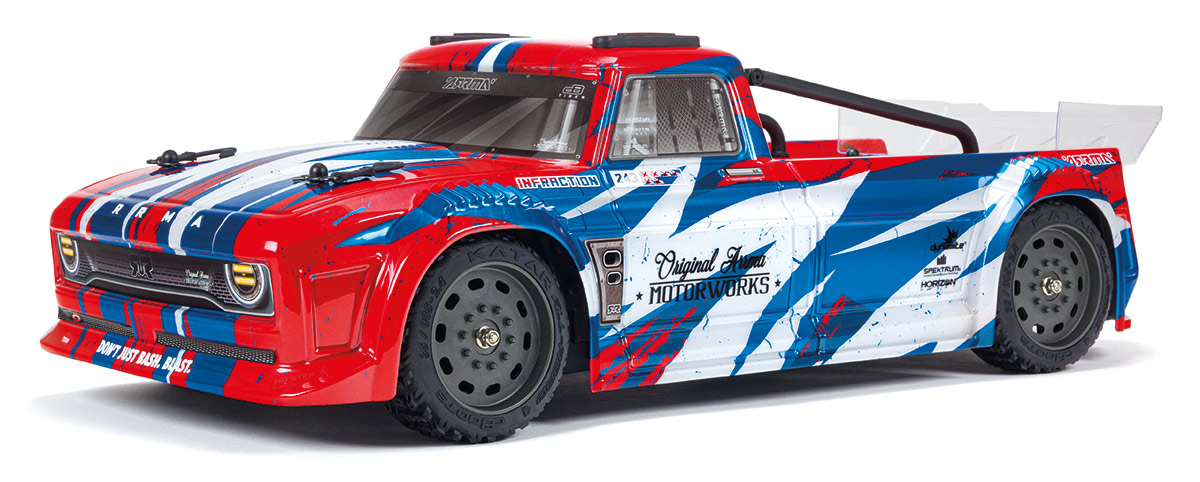

INFRACTION 4X4 MEGA RESTO-MOD TRUCK (RED/BLUE)
