GLORIOUS NOTORIOUS 6S STUNT TRUCK

NOTORIOUS 6S – A REALLY CLASSY CHASSIS

•
  SPEKTRUM® SLT3® RADIO
  • Superb SLT response rate


  • 50% and 75% throttle limited switch - great for beginners


  • Steering & throttle rate & trim adjustments with throttle and steering reversing


  • Foam steering wheel grip


  • Compatible with Tactic Receivers
  SPEKTRUM® SR315 RECEIVER
  • Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters


  • Fast reponse rate and outstanding range


  • No tool binding and protocol switching


  • SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)


  • 3-Channel


•
  SPEKTRUM® SPMS652
  DIGITAL SERVO
  • Waterproof*
  • 19.08kg-cm/265oz-in Torque @7.4V
  *For details of waterproof standards, please refer to the product instruction manuals
  32% MORE TORQUE
  5% FASTER
  THAN ADS-15M SERVO
  ALL STEEL GEARS
•
  SPEKTRUM® SMART TECHNOLOGY INCLUDED
  FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor
•
  UPDATED
  CHASSIS
  DESIGN
  Wider rear section and 3D form introduced in key areas to greatly improve strength
•
  SAFE-D FIRST
  input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup set screw
•
  PREVIOUS
  UPDATED REAR SUSPENSION GEOMETRY
  • updated rear shock tower geometry works in conjunction with updated rear suspension arm geometry to provide a plusher rear end


  • more compact rear shock tower, being less exposed, is better protected from being bent during upside-down impacts
•
  EXTRA BEEF
  heavy duty front suspension arms feature aluminum strengthening caps
  heavy duty rear
  suspension arms
•
  RUBBER
  SHIELDED
  BEARINGS
  longer life, less maintenance
•
  SAFE-D5
  pinion is keyed to the motor shaft and retained with an e-clip for added safety
  steel spacer tube prevents the pinion from contacting the motor plate
•
  EXB COMPATIBLE*
  ALUMINUM TOP PLATE
  *compatible with ARA320564 FRONT CENTER CHASSIS BRACE ALUMINUM 98mm
  reversable design - one side for front braces with a 3mm diameter screw, flip it over for front braces with a 4mm diameter screw

FIRE UP FOR FLAT OUT FUN

•
•
  WHEELIE
  so you can pull a tall wheelie,
  but how long is it?
•
  STANDING BACKFLIP
  no problem; NOTORIOUS 6S flips for fun
•
  AERIAL BACKFLIP
  how high can you go?
•
  DRIFT
  can you control this much
  power for long enough?
•
  BIG AIR
  sky's the limit
•
  DONUT
  mmmmm, donuts

PUNCH THE POWER AND LAY A PATCH

•
•
  ALUMINUM SHOCK
  TOWERS FRONT
  & REAR
•
  FRONT PIVOT BALL SUSPENSION
  for precise handling at top speeds
•
  3 DIFFS, 1 TOUGH TRANSMISSION
  efficient power transfer, blistering speed
  1
  2
  3
•
  WHEELIE BAR
  for when only 90 degree wheelies will do
•
  INNER BODY SUPPORT
  with bolted on roll cage brace for maximum protection
•
  STRUCTURALLY SOUND
  triangular structure for increased chassis rigidity
  BRACE
  BRACE
  BULKHEAD
  BULKHEAD
  BULKHEAD
  TOWER TO TOWER BRACE
  CHASSIS
•
  FAST MAINTENANCE
  WITH EASY-ACCESS
  5 bolt center diff removal
•
  WIDE FRONT BUMPER
  added front end protection

SCRATCH OUT AND STACK UP

•
•
  • Fast Response SLT™ Protocol


  • Foam wheel


  • Improved Grip & Trigger Feel


  • Improved Grip & Trigger Force


  • 2-Way Thumb Switch 3rd Channel


  • 50% & 75% Throttle Mode (For Beginners)


  • TACTIC® SLT™ Receiver Compatible
•
  • Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters


  • Fast reponse rate and outstanding range


  • No tool binding and protocol switching


  • SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)


  • 3-Channel


•
  • Waterproof and dustproof design


  • 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)


  • Spektrum® SMART Technology


  • Fitted with reliable IC5® connectors (EC5™ compatible)


  • Integrated fan for reduced heat during extreme running


  • High quality 10awg wires


  • Low voltage cut off and thermal overload protection


  • User programmable punch, brake, BEC, reverse speed and motor timing settings
  FIRMA™ 150A SMART Brushless ESC
•
  • 2050Kv 4074 size 6S brushless motor


  • Beautifully etched aluminum can


  • 4-pole construction for smooth and consistent power


  • 4mm gold bullet connectors for reliable and efficient connection


  • Black anodized aluminum motor can for increased heat dissipation


  • Super strong 5mm shaft


  • Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
  FIRMA™ 4074 2050Kv Brushless Motor
•
  SPEKTRUM® SPMS652 DIGITAL SERVO
  • Waterproof*


  • Strong steel gears


  • 19.08kg-cm/265oz-in Torque @7.4V


  • 32% More torque and 5% faster than ADS-15M Servo
  *For details of waterproof standards, please refer to the product instruction manuals
•
  GO LARGE
  large volume waterproof receiver box
•
  EASY-ACCESS DIFFERENTIALS
  front and rear diffs are quickly and easily accessed for rapid tuning and maintenance
•
  TOUGH SHOCK DESIGN INCLUDING HEAVY-DUTY 4MM SHOCK SHAFTS
•
  OPTIONAL SPEED PINION INCLUDED
  red anodized motor mount and
  Mod 1 spur and pinion gears to
  handle optimum performance
•
  FIVE-SPOKE WHEELS
  tough five-spoke wheels support dBoots® BACK-FLIP tires
•
  SLIP & SLIDE
  sliding motor mount for easy meshing
•
  WHIP IT OUT
  quick and easy motor removal
•
  EASY & SECURE MOUNTING
  FOR A WIDE RANGE OF BATTERIES

STUNTOLOGICAL PHENOMENON

Specifications

Resources

ARA8611V5T1

NOTORIOUS 6S 4WD BLX 1/8TH STUNT TRUCK (BLACK)

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

ARA8611V5T2

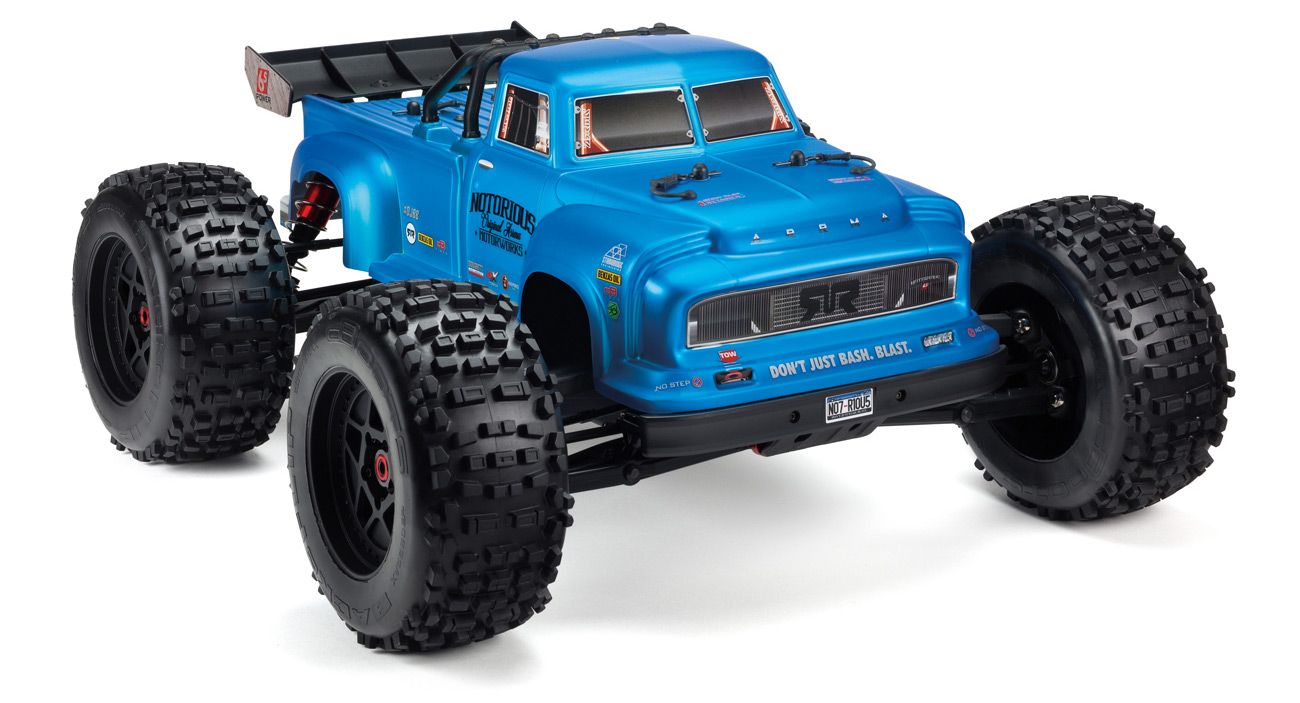

NOTORIOUS 6S 4WD BLX 1/8TH STUNT TRUCK (BLUE)

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts
